Electronic Dice Kit

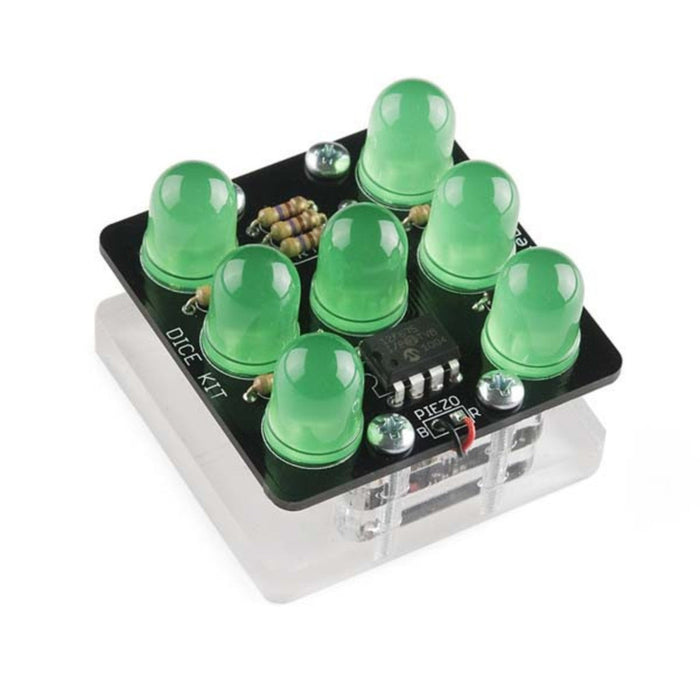

The Dice Kit is a beginner’s soldering kit that comes with everything you need to make your own electronic die. When you tap it on the table, it displays a number from 1 to 6 by lighting up the appropriate number of LEDs in the same layout as found on traditional non-electric dice.
The kit uses a piezo element for detecting the tap on the table and uses a pre-programmed microcontroller. It also includes a laser cut acrylic base and battery. There’s no programming required and a beginner can get the kit together in about an hour or so. You will need a soldering iron and basic tools. Also, a dab of glue or double-sided tape is recommended as well.
Note: Due to the requirements of shipping the battery in this kit, orders may take longer to process and therefore do not qualify for same-day shipping. Sorry for any inconvenience this may cause.
Features:
- Auto power saving sleep mode after ~15 seconds of inactivity.
- Laser cut ¼" acrylic base
- Includes CR2032 battery
- Stand alone kit
- No computer needed
- No Arduino needed
- Easy to build
