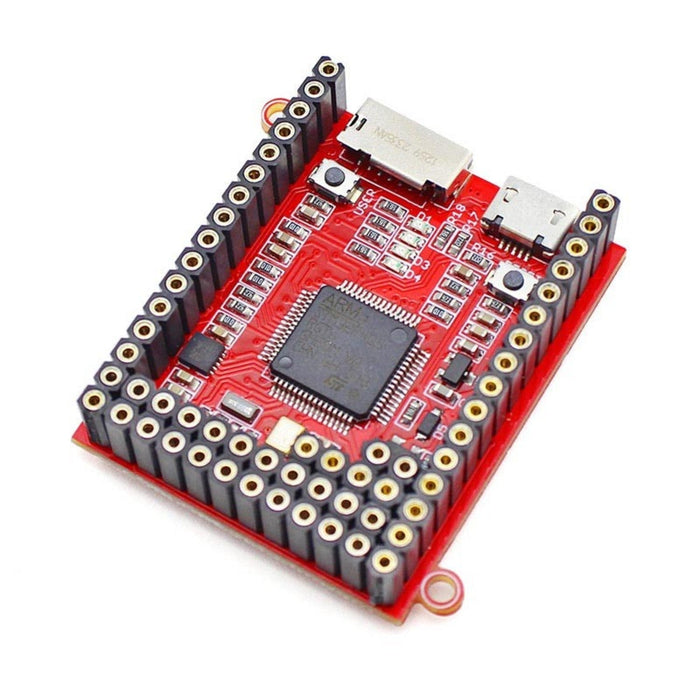

The Crow Pyboard is a powerful electronics development board which runs MicroPython. Connecting it to your PC via USB, and giving you a USB flash drive on which to save your Python scripts, and a serial Python prompt for instant programming. With the Crow Pyboard you gain a low-level Python operating system that you are able to use to control plenty of different electronics projects.
At its heart, the Crow Pyboard possesses a STM32F405RG microcontroller with a 168 MHz Cortex M4 CPU, 1024KiB flash ROM, and 192KiB of RAM. Each pyboard is also equipped with a microUSB connector for power and serial communications, a microSD card slot, an MMA7660 3-axis accelerometer, 31 GPIO, four LEDs, a reset switch and a user switch.
MicroPython is a complete rewrite of the Python (version 3.4) programming language so that it fits and runs on a microcontroller. It includes many optimizations so that it runs efficiently and uses very little RAM. Additionally, MicroPython runs bare-metal on the pyboard, and essentially gives you a Python operating system. The built-in pyboard module contains functions and classes to control the peripherals available on the board, such as UART, I2C, SPI, ADC and DAC.
Features
- MicroUSB connector for power and serial communication.
- Real-Time Clock (RTC) with optional battery backup.
- 24 GPIO on left and right edges and 5 GPIO on bottom row, plus LED and switch GPIO available on bottom row.
- DFU bootloader in ROM for easy upgrading of firmware.
Specifications
- Microcontroller: STM32F405RG
- 168MHz Cortex M4 CPU with hardware floating point
- 1024KiB flash ROM and 192KiB RAM
- 3x 12-bit analog to digital converters, available on 16 pins, 4 with analog ground shielding
- 2x 12-bit digital to analog (DAC) converters, available on pins X5 and X64 LEDs (red, green, yellow and blue)
- 3-axis accelerometer (MMA7660)
- 1 reset and 1 user switch
- Onboard 3.3V LDO voltage regulator, capable of supplying up to 250mA, input voltage range 3.6V to 16V
Package list
- Crow Pyboard x 1
Wiki & External links
- Quick reference for pyboard
- Tutorial Page
- User manual (Wiki link)
