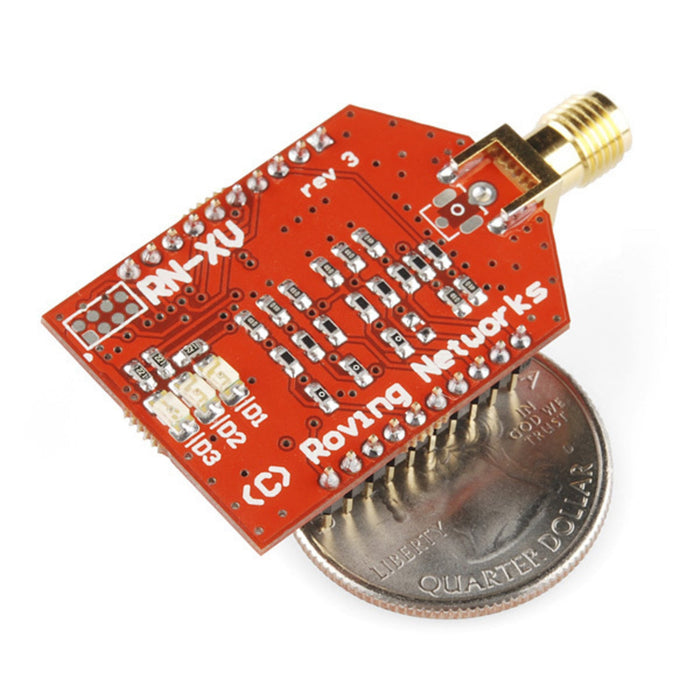

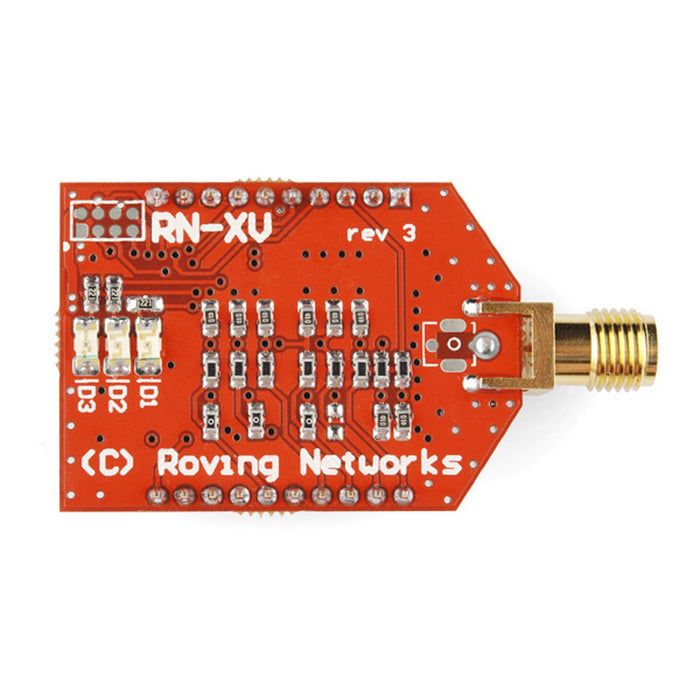

RN-XV WiFly Module - RP-SMA Connector
The RN-XV WiFly module by Roving Networks (now Microchip) is a certified Wi-Fi solution designed as a drop-in replacement for XBee modules. It uses the standard 802.15.4 XBee footprint, so you can migrate existing XBee-based projects to TCP/IP Wi-Fi without redesigning your hardware.

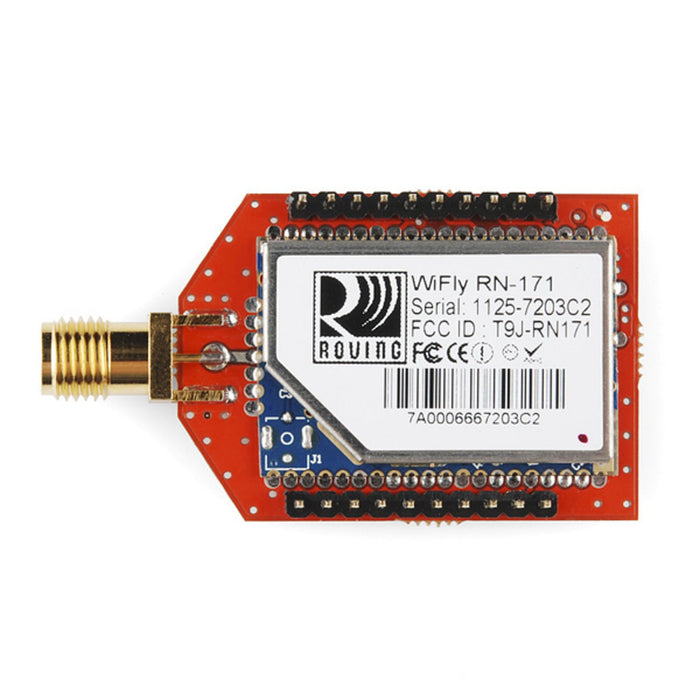

Based on the RN-171 Wi-Fi module, the RN-XV integrates an 802.11 b/g radio, 32-bit processor, full TCP/IP stack, real-time clock, and crypto accelerator. In the simplest configuration, only four connections are needed: PWR, TX, RX, and GND.
Key Features
- XBee-Compatible Footprint – Drop-in replacement for 802.15.4 XBee modules
- Ultra Low Power – 4 μA sleep mode, 38 mA active
- Full TCP/IP Stack – DHCP, UDP, DNS, ARP, ICMP, HTTP client, FTP client, and TCP
- Configurable TX Power – 0 dBm to 12 dBm
- RP-SMA Antenna Connector – For external antenna use
- Real-Time Clock – Supports time-stamping, auto-sleep, and auto-wakeup
Specifications
- Wi-Fi Standard – 802.11 b/g
- Interface – TTL UART (up to 464 Kbps)
- Operating Voltage – 3.3V DC regulated
- Digital I/O – 8 general-purpose pins
- Analog Inputs – 3 sensor inputs
- TX Power – 0–12 dBm (firmware configurable)
- Power Consumption – 4 μA (sleep), 38 mA (active)
- Networking – Ad-hoc and infrastructure modes
- Antenna – RP-SMA connector
Ideal For
- Migrating XBee projects to Wi-Fi
- IoT and wireless sensor networks
- Remote data logging with Wi-Fi connectivity
- Low-power wireless serial communication
Package Contents
- 1× RN-XV WiFly Module (RP-SMA connector)
