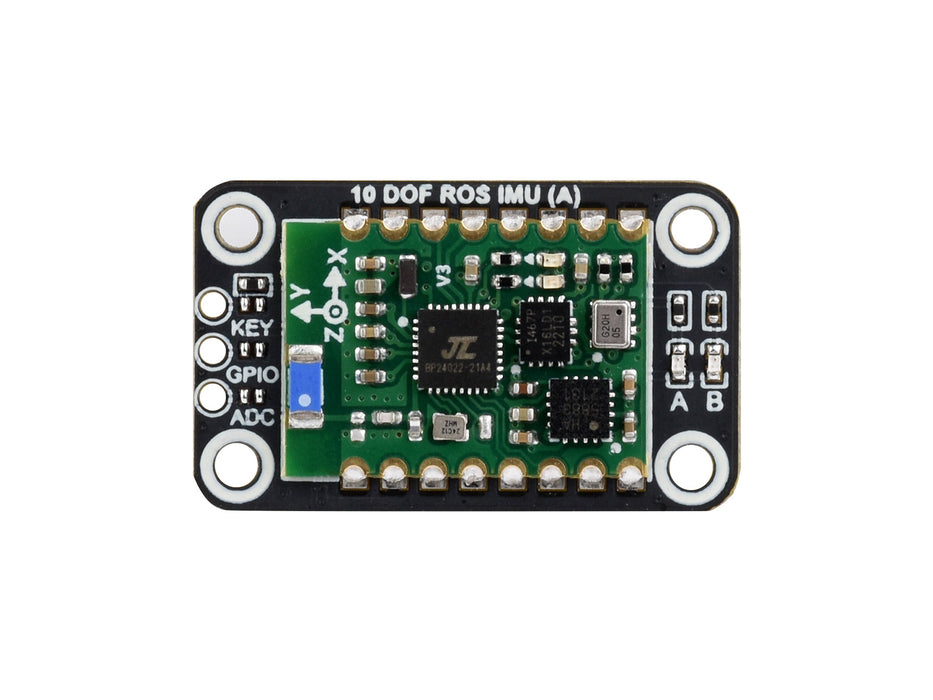

ROS-Compatible 10-Axis IMU Sensor with ARM DSP, BLE 5.3, and Environmental Sensors
Revolutionize Your Robotics and Drones with the 10-Axis ROS IMU Sensor
Dive into Dynamic Orientation and Precision with Our State-of-the-Art Sensor
Transform your robotic creations into masterpieces of precision and agility with our 10-Axis ROS IMU Sensor. Integrated with an advanced ARM 32-bit DSP Processor and the latest BLE 5.3 Bluetooth, this sensor is engineered to perfection for the most demanding applications.
Unmatched Precision: Our sensor boasts a high-precision accelerometer, gyroscope, and magnetometer, ensuring accurate motion detection and spatial orientation. Coupled with a finely-tuned temperature and pressure sensor, the device delivers comprehensive environmental feedback.
Innovative Technology: Experience the future with a sensor that employs a self-developed attitude estimation algorithm. It provides robust real-time performance as well as stable and drift-free navigation.
Seamless Connectivity: Supporting both UART and BLE 5.3 Bluetooth communication, our sensor easily interfaces with robots, offering dynamic motion attitude and orientation detection. It is compatible with Bluetooth-enabled devices across multiple platforms, including Android, iOS, Windows, and Linux.
Versatile Applications: Create cutting-edge drones, mobile robots, quadruped robotic dogs, and autonomous robotic cars. The sensor’s rich data output makes it ideal for a multitude of scenarios.
Technical Excellence: - Power Supply: 3.3V to 5V for versatile integration - Baud Rate: 115200 for high-speed data transmission - Resolution: Supreme accuracy with 0.00048g for the accelerometer, 0.061°/s for the gyroscope, and 0.12uT for the magnetometer
Robust Build: The sensor comes encased in a durable nylon housing, complete with a handy ZH1.5 4PIN cable (~300mm), screwdriver, and screws pack for easy installation.
Developer Friendly: Tailored for both ROS1 and ROS2 systems, it includes a demo for IMU data estimation, allowing for a quick and seamless start-up.
In the Box: - 10 DOF ROS IMU (A) - Nylon Case - ZH1.5 4PIN Cable (~300mm) - Screwdriver - Screws Pack
Note: The USB TO UART Module is not included.
Technical Support: Our extensive resources page, www.waveshare.com/wiki/10DOFROSIMU(A), is filled with documentation, tutorials, and a dedicated Wiki to support your development journey.
Product Weight: 0.038 kg - a lightweight addition to any project.
Transform the way your robots perceive and respond to their environment. Add the 10-Axis ROS IMU Sensor to your toolkit today, and steer your projects towards unparalleled precision and excellence!
