Metal Gear Servo 180 Degrees

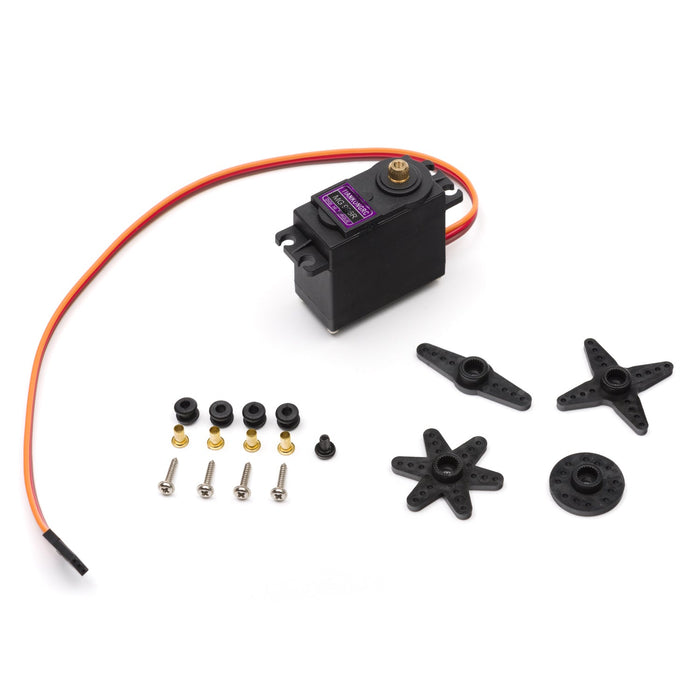

This High-Torque MG996R Digital Servo features metal gearing resulting in extra high 10kg stalling torque in a tiny package.

The MG996R is essentially an upgraded version of the famous MG995 servo, and features upgraded shock-proofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor.

The gearing and motor have also been upgraded to improve dead bandwidth and centering. The unit comes complete with 30cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

Control System: Pulse Width Control
Working Frequence: 20ms period / 50hz (Analog Control)
(RX) Required Pulse: 3.0 ~ 5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8 ~ 6 V DC Volts
Operating Temperature Range: 0 to + 55 Degree C
Operating Speed (4.8v): 0.200 sec/60° degrees at no load
Operating Speed (6v) 0.160 sec/60° degrees at no load
Stall Torque (4.8v): 9.4kg/cm
Stall Torque (6v): 11kg/cm
Potentiometer Drive: Direct Drive
