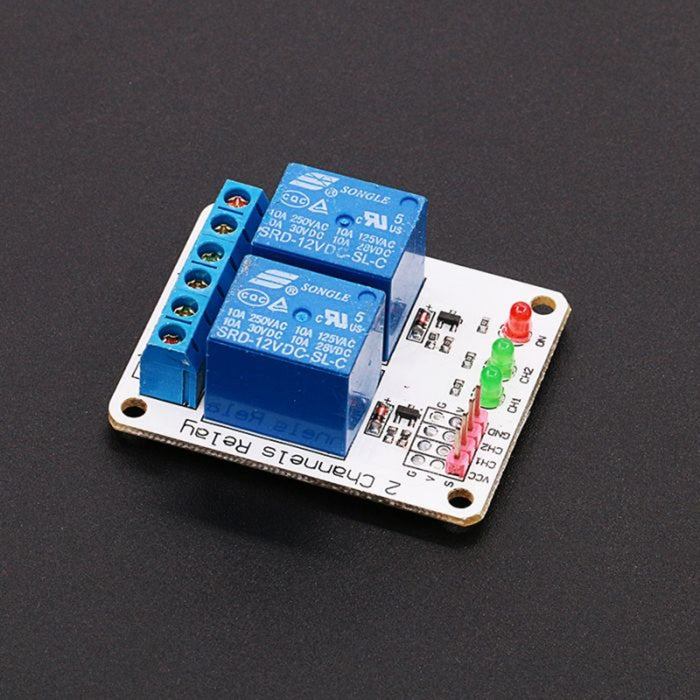

2 Channel 5V Relay Module BK_RL2_01
This is a 2 channel relay module. It can be used to control the lighting, electrical and other equipments. The modular design makes it easy to expand with the Arduino board or other MCU board PIC, ARM and MSP430. The Relay output state by a light-emitting diode.
Specification
Drive current: 20mA
Control signal: 5V/12V/24V TTL level
Maximum switching voltage: 250VAC 30VDC
Dimension: 35mm*50mm*15mm
Resources:
Please visit the ElecFreaks wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
The 2 Channel 5V Relay Module BK_RL2_01 appears in the following collections:
SKU EF-EF03003
