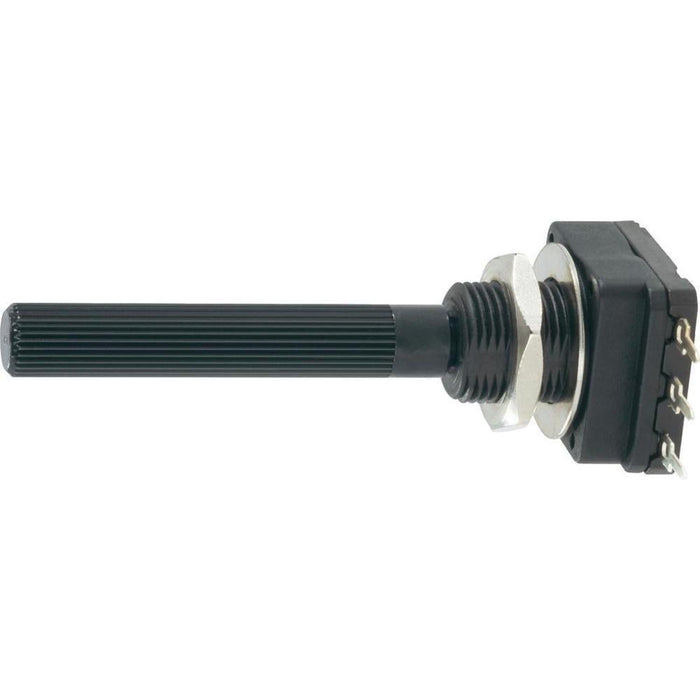

Mono Potentiometer - 1K Linear
Dustproof enclosed potentiometer with PCB connector and self-extinguishing plastic housing.
Technical data
- Approvals: UL 94-V-0
| Category | Single turn rotary pot |
| Resistance | 1 kΩ |
| Resistance characteristic | linear |
| Output | Mono |
| Power rating | 0.2 W |
| Cut-off voltage | 250 V |
| Connection | Solder tag |
| Mechanical angle | 300 ° |
| Electrical angle | 280 ° |
| Type | D cell |
| Shaft length | 31.5 mm |
| Axle type | Plastic, Serrated |
| Axle Ø | 6 mm |
| Thread size | M10 |
| Thread length | 9 mm |
| Min. temperature | -25 °C |
| Max. temperature | +70 °C |
| Tolerance ± | 20 % |
| Content | 1 pc(s) |
| Type | PC16SH-10IP06102A2020MTA |
