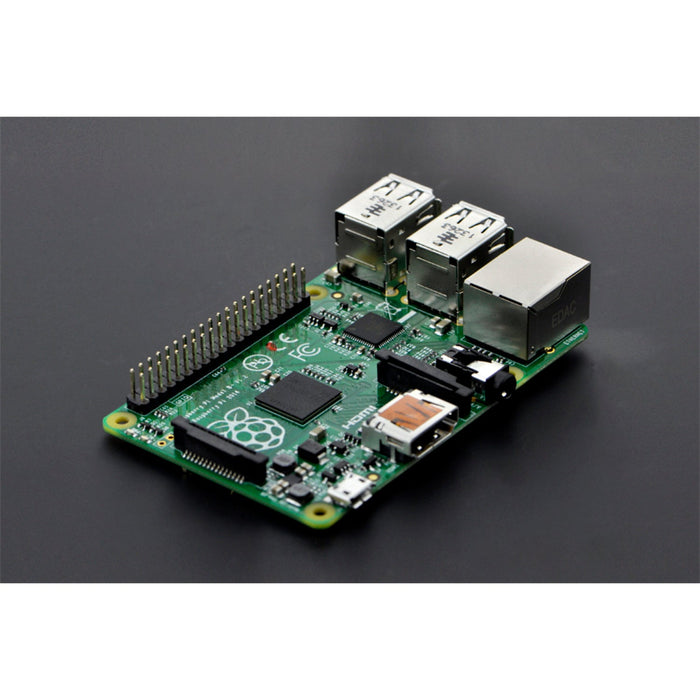

Raspberry Pi Module B+ 512MB RAM

This Raspberry Pi is Discontinued Now, We recommend lattpanda boards (a small computer board for win 10) as a suitable replacement.

The Model B+ is the higher-spec variant of the Raspberry Pi. It was released to replace the original Model B in mid 2014. Comparing with Model B it has below features:

• More GPIO: The GPIO header has expanded to 40 pins, while retaining the same pinout for the first 26 pins as the Model B.
• More USB: It now have 4 USB 2.0 ports, compared to 2 on the Model B, and better hotplug and overcurrent behaviour.
• Improved Micro SD: The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
• Lower Power Consumption: By replacing linear regulators with switching ones we've reduced power consumption by between 0.5W and 1W.
• Better Audio: The audio circuit incorporates a dedicated low-noise power supply.
• Neater Form Factor: We've aligned the USB connectors with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes.

• Broadcom BCM2835 SoC
• 700 MHz ARM1176JZF-S core CPU
• Broadcom VideoCore IV GPU
• 512 MB RAM
• 4 x USB2.0 Ports
• Video Out via full size HDMI, 3.5mm A/V Jack or Raw LCD (DSI) interface
• Audio Out via 3.5mm A/V Jack or Audio over HDMI
• Audio In via CAMERA interface
• Storage: micro SD slot
• 10/100 Ethernet (RJ45)
• Low-Level Peripherals:
• 40 x GPIO
• UART
• I2C bus
• SPI bus with two chip selects
• +3.3V
• +5V
• Ground
• Power Requirements: 600mA up to 1.8A@5V via MicroUSB or GPIO Header
• Size: 87 x 58.5 x 19mm
• Supports Debian GNU/Linux, Fedora, Arch Linux, RISC OS and More!

• Quickstart Guide
• Creating a Boot Card
• GPIO Header Pinout
• Raspberry Pi Foundation

• Raspberry Pi Module B 512MB RAM x1
