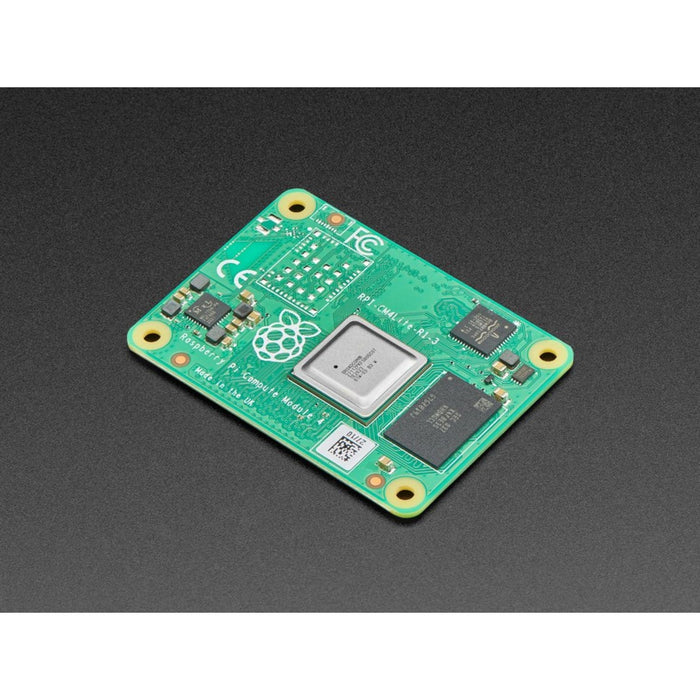

Raspberry Pi Compute Module 4 - 1GB / No MMC / No WiFi (Lite)

The Raspberry Pi Compute Module 4 is based on the Raspberry Pi 4 Model B, but in a smaller form factor - perfect for embedding into products or projects without the bulk of a classic Raspberry pi. You get all the computational power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. The CM4 incorporates the same quad-core ARM Cortex-A72 processor, dual video output, gigabit Ethernet, UART, I2C, SPI, I2S and a few PWM for good measure.

Compute Module 4 introduces a brand new form factor, and a compatibility break with earlier Compute Modules. Where previous modules adopted the JEDEC DDR2 SODIMM mechanical standard, with I/O signals on an edge connector, we now bring I/O signals to two high-density perpendicular connectors (one for power and low-speed interfaces, and one for high-speed interfaces).

This significantly reduces the overall footprint of the module on its carrier board, letting you achieve smaller form factors for your products. This version is intended for experienced developers who will be using the board for industrial and commercial applications.

Specifications

• 1.5GHz quad-core 64-bit ARM Cortex-A72 CPU
• VideoCore VI graphics, supporting OpenGL ES 3.x
• 4Kp60 hardware decode of H.265 (HEVC) video
• 1080p60 hardware decode, and 1080p30 hardware encode of H.264 (AVC) video
• Dual HDMI interfaces, at resolutions up to 4K
• Single-lane PCI Express 2.0 interface
• Dual MIPI DSI display, and dual MIPI CSI-2 camera interfaces
• 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
• Optional 8GB, 16GB or 32GB eMMC Flash storage
• Optional 2.4GHz and 5GHz IEEE 802.11b/g/n/ac wireless LAN and Bluetooth 5.0
• Gigabit Ethernet PHY with IEEE 1588 support
• 28 GPIO pins, with up to 6 × UART, 6 × I2C, and 5 × SPI
