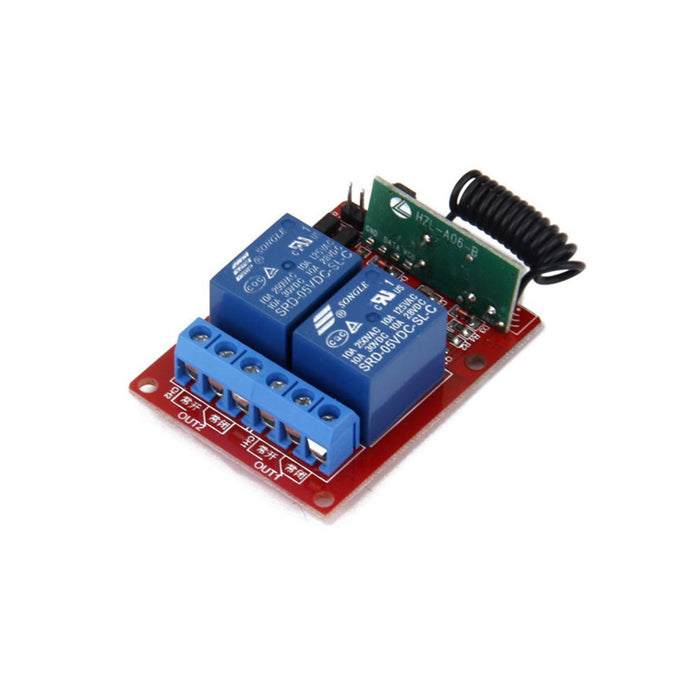

2 Channels RF Remote Control Module DC 5V
The 2-Channel RF Remote Control Module is a wireless relay controller operating on 433MHz. It comes with a 3-button RF remote that can toggle each relay independently, making it ideal for wirelessly controlling appliances, lights, motors, and other equipment.
The module features high-current latching relays with passive output, LED indicators for relay status, and a standard interface for direct microcontroller control. It operates on 5V DC with a quiescent current of just 6mA.
Key Features
- 2 Latching Relay Channels – Self-locking relays with passive output
- 433MHz RF Wireless – 15–30 metre remote control range
- 3-Button Remote Included – Control each channel independently
- High-Current Relays – Rated for 10A at 250V AC or 10A at 30V DC
- LED Status Indicators – Visual feedback for each relay state
- Microcontroller Compatible – Standard interface for direct MCU control
Specifications
- Working Voltage: DC 5–5.5V
- Working Current: ~140mA
- Quiescent Current: ~6mA
- Max Load: 10A at 250V AC / 10A at 30V DC
- RF Frequency: 433MHz
- Remote Range: 15–30 metres
- Work Mode: Self-locking (latching)
- Module Dimensions: 53 × 40 × 20mm
Ideal For
- Wireless appliance and lighting control
- Home automation projects
- Remote motor and pump switching
- Gate and door control systems
Package Contents
- 1× 2-Channel RF Relay Module
- 1× 3-Button RF Remote Control
Warning: This module can switch mains voltage (up to 250V AC). Exercise extreme caution when working with high-voltage circuits. Ensure all connections are properly insulated and follow local electrical safety regulations.
