M5StickC Yun Hat(SH20,BMP280,SK6812)
We have ✅ 7 available of the M5-U070 in our Sydney warehouse.

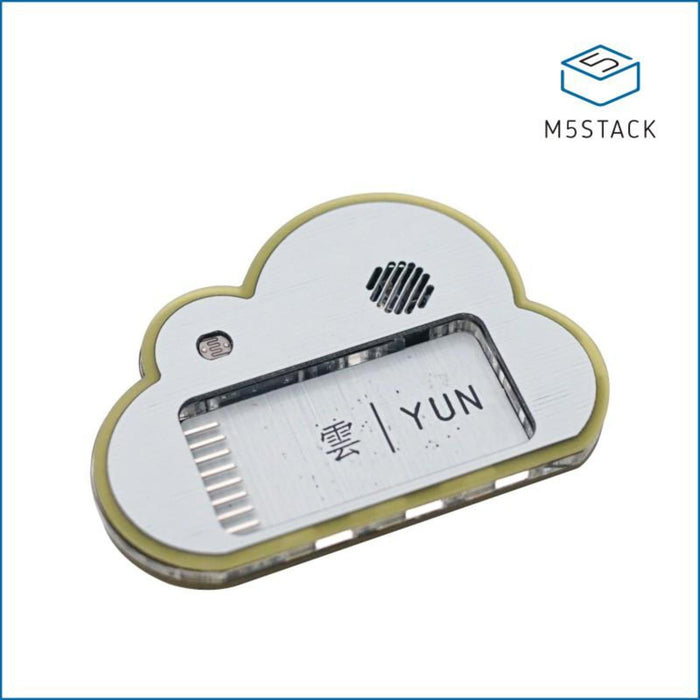

The M5StickC Yun HAT is a cloud-shaped multi-sensor environmental monitoring accessory designed to mount on the M5StickC via the top socket. It integrates a temperature and humidity sensor (SHT20), barometric pressure sensor (BMP280), a photoresistor for ambient light detection, and 14 SK6812 RGB LEDs — all controlled by an on-board STM32F030F4 microprocessor.
The three-layer design features a main circuit PCB, a light-guiding acrylic middle layer with polished edges for even LED illumination, and a structural top board. The board includes a hook hole and two 6 × 4 mm magnet mounting positions for easy wall or fridge placement. An independent external power interface is also provided.
Key Features
- SHT20 Sensor – Temperature and humidity measurement
- BMP280 Sensor – Barometric pressure measurement
- Photoresistor – Ambient light detection
- 14× SK6812 RGB LEDs – Programmable lighting effects through polished acrylic diffuser
- STM32F030F4 MCU – On-board microprocessor with streamlined API
- M5StickC Compatible – Plugs into the M5StickC top socket
- Mounting Options – Hook hole and 2× magnet positions (6 × 4 mm)
- External Power – Independent power input interface
Specifications
- Compatible Device – M5StickC
- Processor – STM32F030F4
- Sensors – SHT20 (temp/humidity), BMP280 (pressure), photoresistor (light)
- LEDs – 14× SK6812 4020 RGB
- Development Platforms – Arduino, UIFlow (Blockly, MicroPython)
Ideal For
- Environmental data collection
- Smart home decoration and ambient displays
- Fridge magnet weather stations
- IoT sensor projects
Package Contents
- 1× Yun HAT
- 2× DuPont Cables
