We have ✅ 139 available of the RP-PICO-L in our Sydney warehouse.

Express post delivery (2-5 business days)

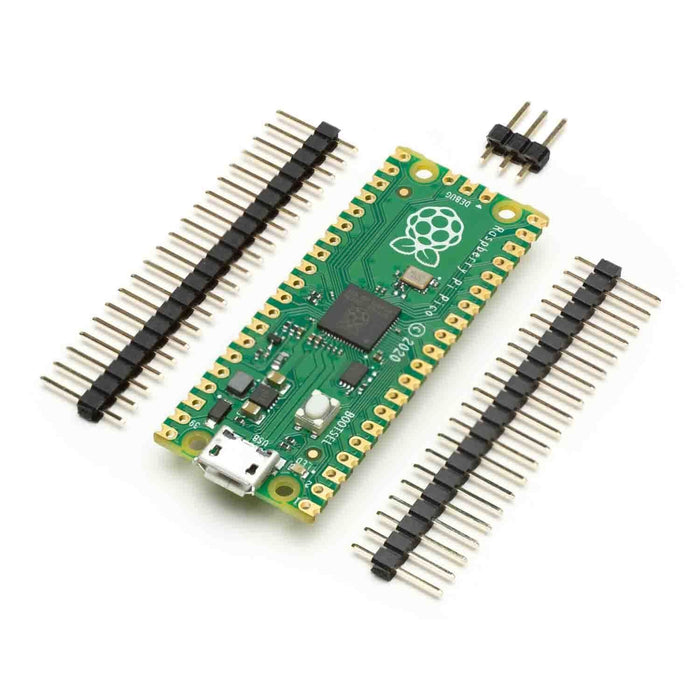

Ready to solder up your own PICO?  This kit comes with a Pico board, 2 x 20pin headers and a 3 pin header.
The real story is: Just like another “fruit company”, Raspberry Pi dove headfirst and  developed their own custom ARM silicon, the RP2040 (learn more about the RP2040)!
Subscribe to Little Bird Guides and get a Raspberry Pi Pico for free!
Raspberry Pi Pico has been designed to be a low cost yet flexible development platform for RP2040, with the following key features:
  • RP2040 microcontroller with 2MByte Flash
  • Micro-USB B port for power and data (and for reprogramming the Flash)
  • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations

    • Exposes 26 multi-function 3.3V General Purpose I/O (GPIO) ◦ 23 GPIO are digital-only and 3 are ADC capable
    • Can be surface mounted as a module
  • 3-pin ARM Serial Wire Debug (SWD) port
  • Simple yet highly flexible power supply architecture

    • Various options for easily powering the unit from micro-USB, external supplies or batteries
    • High quality, low cost, high availability
  • Comprehensive SDK, software examples and documentation
For full details of the RP2040 microcontroller please see the RP2040 Datasheet, however the headline features are:
  • Dual-core cortex M0+ at up to 133MHz

    • On-chip PLL allows variable core frequency
  • 264K multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP)
  • Dual-core cortex M0+ at up to 133MHz

    • On-chip PLL allows variable core frequency
  • 264K multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP)
  • High performance full-crossbar bus fabric
  • On-board USB1.1 (device or host)
  • 30 multi-function General Purpose IO (4 can be used for ADC)

    • 1.8-3.3V IO Voltage (NOTE Pico IO voltage is fixed at 3.3V) • 12-bit 500ksps Analogue to Digital Converter (ADC)
  • Various digital peripherals
    • 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
    • 1 x Timer with 4 alarms, 1 x Real Time Counter • Dual Programmable IO (PIO) peripherals
    • Flexible, user-programmable high-speed IO
    • Can emulate interfaces such as SD Card and VGA

The Pico With Loose Headers Kit appears in the following collections:

SKU RP-PICO-L
