Modular RPi 2 Case (Blue)

Modular RPi 2 Case (Blue)

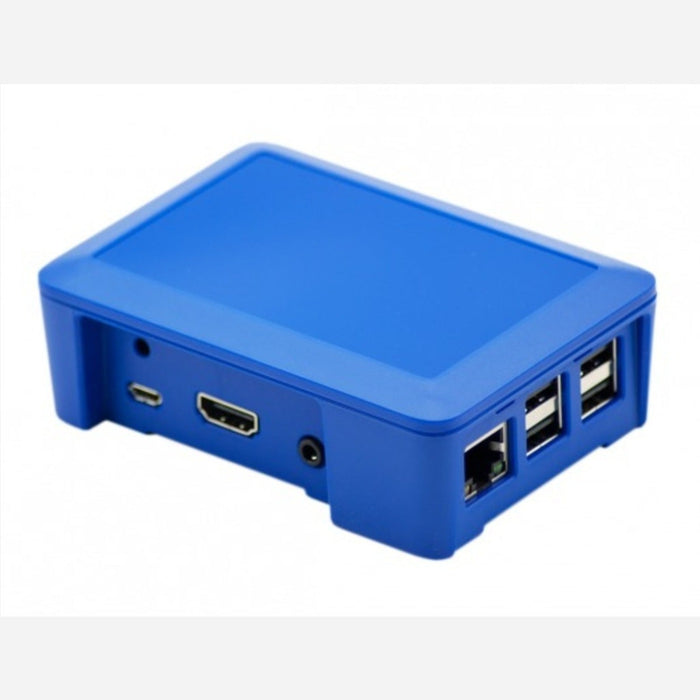

The ModMyPi Modular Raspberry Pi 2 Case in blue is a fully customisable, two-part ABS plastic enclosure designed for the Raspberry Pi 2 Model B and B+. Its modular design lets you add stackable spacer plates, security covers, and VESA mounts to adapt the case to your project's needs — from a simple desktop setup to an embedded industrial application.

The case features a stealth streamlined look with a matt finish body and gloss cap, integrated LED status light pipes, and generous internal space for breakout boards and HATs. Cable slots for GPIO ribbon, CSI camera, and DSI display cables are built in.

Key Features

  • Modular Design – Add stackable spacers, SD card covers, USB/HDMI security shrouds, and VESA mounts
  • LED Light Pipes – Built-in status LED indicators visible through the case
  • HAT Compatible – Internal volume accommodates standard HAT boards
  • Cable Slots – GPIO 40-pin ribbon, CSI camera, DSI display, and power switch fly-through
  • Clip Fit + Screw Locking – Secure Pi mounting with optional screw lock (included)
  • Internal SD Card Holder – Store a spare microSD card inside the case
  • VESA Mount Points – 50 mm M3 (4-point) and 40 mm M3 (2-point wall mount)
  • Strong ABS Plastic – Durable matt finish body with gloss cap

Specifications

  • Compatibility – Raspberry Pi 2 Model B and B+
  • Material – ABS plastic
  • External Dimensions – 104.95 × 74.95 × 36.00 mm
  • Internal Volume – 90.0 × 58.5 × 25.7 mm (from top of Pi PCB to inner lid)
  • Colour – Blue (matt body, gloss cap)

Modular Add-Ons (Sold Separately)

  • 10 mm Stackable Spacers – Stack up to 5 high for extra internal height
  • Micro SD Card Cover – Flush, lockable, tamper-proof protection
  • USB & HDMI Security Cover – Dual-use shroud with RJ45 and power breakout hatches
  • VESA Mounts – MIS-D 75/100 (M4) and MIS-F 200 mm (M6) options
Note: Additional screws are required when stacking more than one spacer plate.

Ideal For

  • Desktop Raspberry Pi setups
  • Embedded and industrial applications
  • Media centres and digital signage (VESA mount behind TV)
  • Projects requiring expandable internal space for breakout boards

Resources
