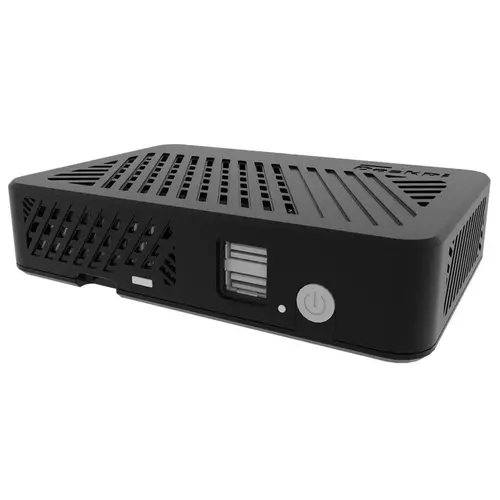

DeskPi Lite Raspberry Pi 4 Case
This is the new DeskPi Lite case for the Raspberry Pi 4 - little sister to the DeskPi Pro V2.
The DeskPi Lite offers Raspberry Pi desktop convenience with additional handy features! It houses your Raspberry Pi 4 and re-routes your ports to practical locations, including dual full-size HDMI and 3.5mm audio on the rear, GPIO access on the side and SD access on the front alongside an extra 2x USB 2.0 ports.
You'll also find an illuminated power button on the front, next to the activity LED, giving everything you need from the front of the case just like a desktop PC.
Inside the case, the re-routing PCB includes a PWM-controllable fan attached to a heatsink unit for active cooling of your Raspberry Pi, supported by the ample ventilation on the ABS plastic body. Rubber feet ensure steady operation and minimal vibrations. You can even wall mount it!
Assembly required. Raspberry Pi OS Configuration is required for fan control and to enable the front USB ports and power button. May not work on other Operating Systems. Please see the GitHub page for more info.
Features
- Compatible with Raspberry Pi 4
- Ports re-routed to practical locations:
- On the rear:
- 2x USB 2.0
- 2x USB 3.0
- Dual full-size HDMI
- Ethernet
- 3.5mm Audio
- USB-C power
- On the side:
- GPIO access via soft cover
- On the front
- 2x USB 2.0 (config required to enable)
- Micro-SD access
- Illuminated power button (config required to enable)
- LED Indicator
- On the rear:
- Internal PWM cooling fan and heatsink unit (config required to enable)
- Illuminated power button (config required to enable)
- Side GPIO access under soft cover
- Rear slot for camera/DSI cables
- ABS plastic body with ample ventilation
- Rubber feet
- Wall mountable
Package Contents
- 1x DeskPi Lite Case
- ABS case
- Internal re-routing PCB
- Internal heatsink+fan unit
- Thermal pads
- Fixings
- Printed manual
Raspberry Pi not included
