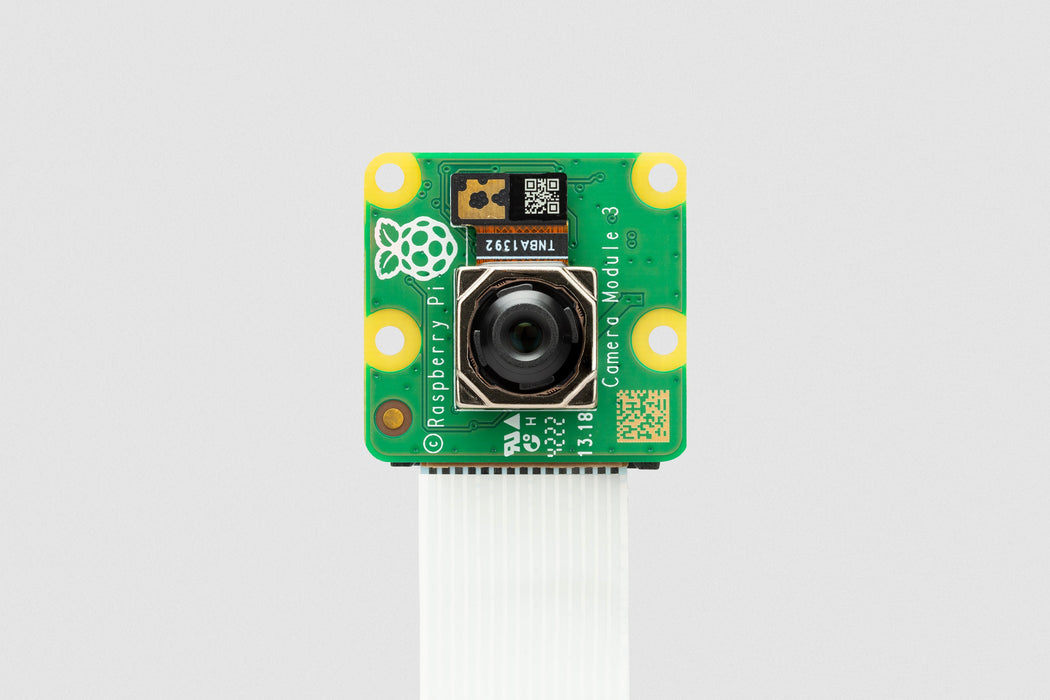

Raspberry Pi Camera Module 3
The Pi Camera Module 3 is coming soon. The new Pi Camera Module 3 wide version has arrived in Sydney.
The Raspberry Pi Camera Module 3 is a compact, 12-megapixel camera featuring an IMX708 sensor with HDR, phase detection autofocus, and an integrated infrared cut filter. This camera is perfect for capturing HD video and stills images, with an HDR mode up to 3 megapixels. It's compatible with all Raspberry Pi computers and offers a 10cm-00 focus range, 4.74mm focal length, 75-degree diagonal field of view, 66-degree horizontal field of view, 41-degree vertical field of view, and F1.8 focal ratio (F-stop). Plus, it's FCC-approved and has a production lifetime of at least January 2030. Get the perfect shot with the Raspberry Pi Camera Module 3!
Specifications:
Specifications:
- Focus range: 10cm–∞
- Focal length: 4.74mm
- Diagonal field of view: 75 degrees
- Horizontal field of view: 66 degrees
- Vertical field of view: 41 degrees
- Focal ratio (F-stop): F1.8
- Infrared-sensitive: F1.8
- Sensor: Sony IMX708
- Resolution: 11.9 megapixels
- Sensor size: 7.4mm sensor diagonal
- Pixel size: 1.4μm x 1.4μm
- Common video modes: 1080p50, 720p100, 480p120
- Output: RAW10
- Autofocus system: Phase Detection Autofocus

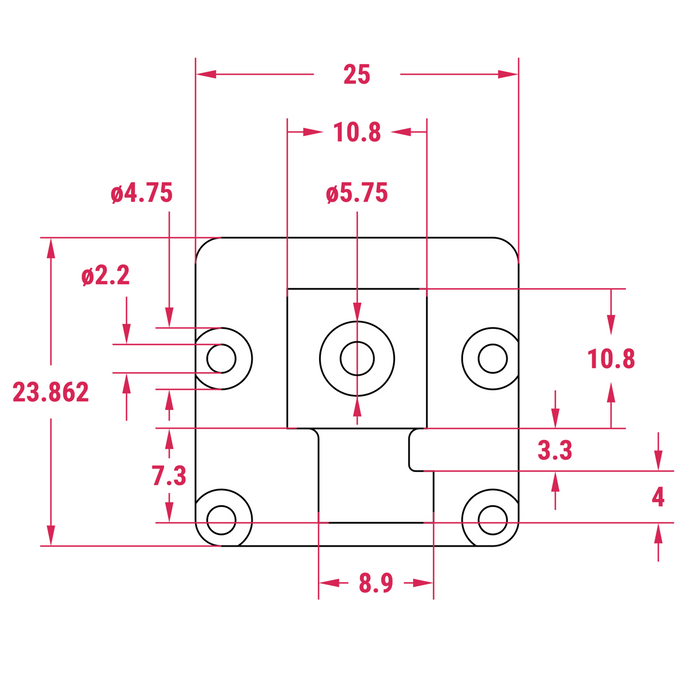

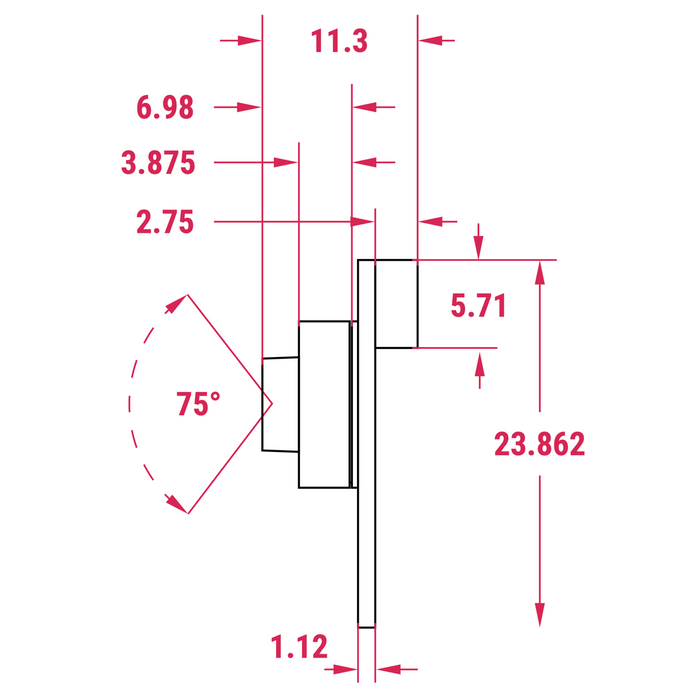

- Dimensions: 25 x 24 x 11.5mm (12.4mm height for Wide variants)

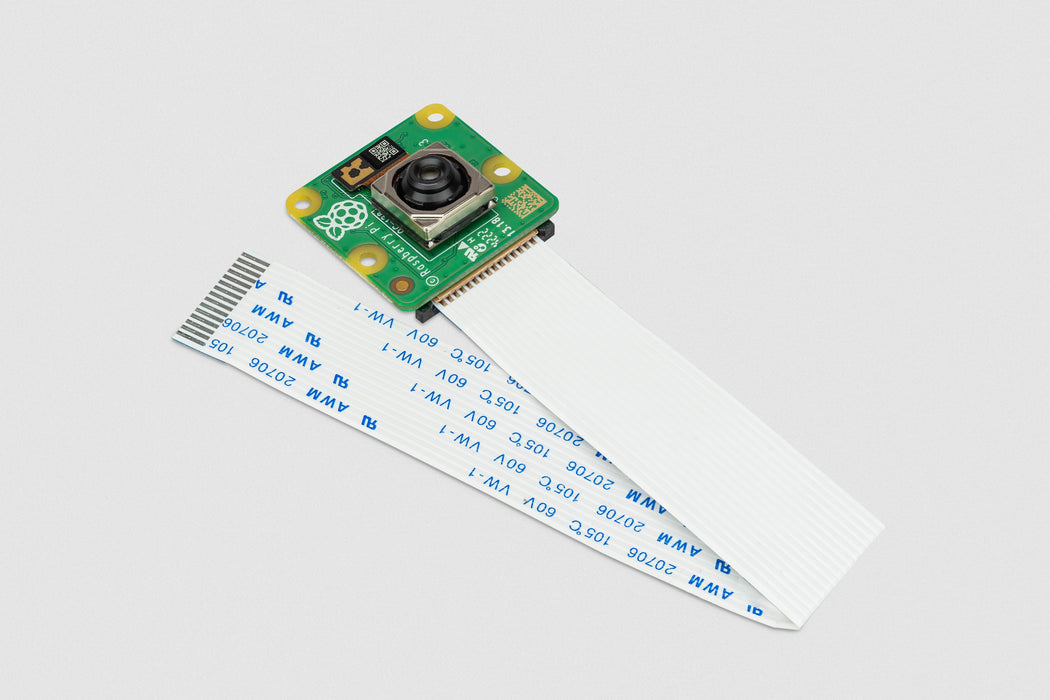

- Ribbon cable length: 200mm
- Cable connector: 15 x 1mm FPC
- Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device; Electromagnetic Compatibility Directive (EMC) 2014/30/EU; Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
- Production lifetime: At least January 2030
Note for use with the Raspberry Pi 5 you will need a Mini cable
