Fish-eye Camera Module (OV2640)
We have ✅ 3 available of the M5-U037 in our Sydney warehouse.

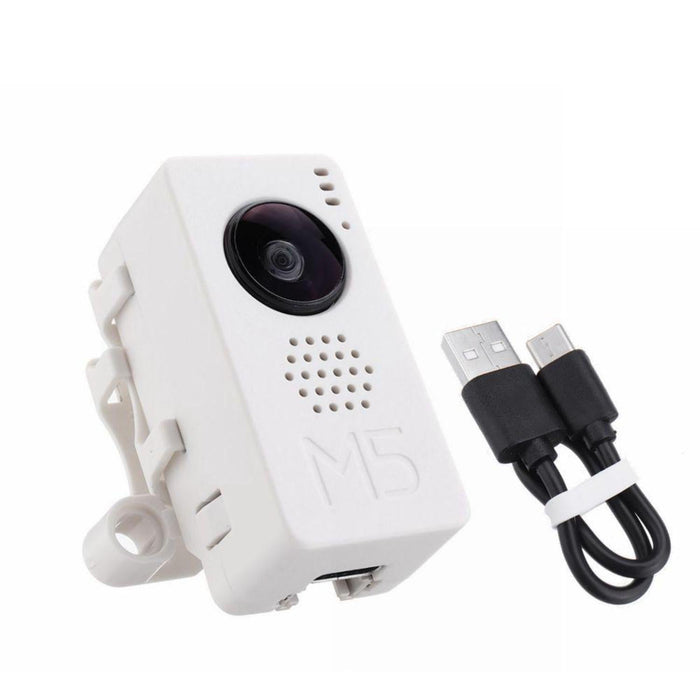

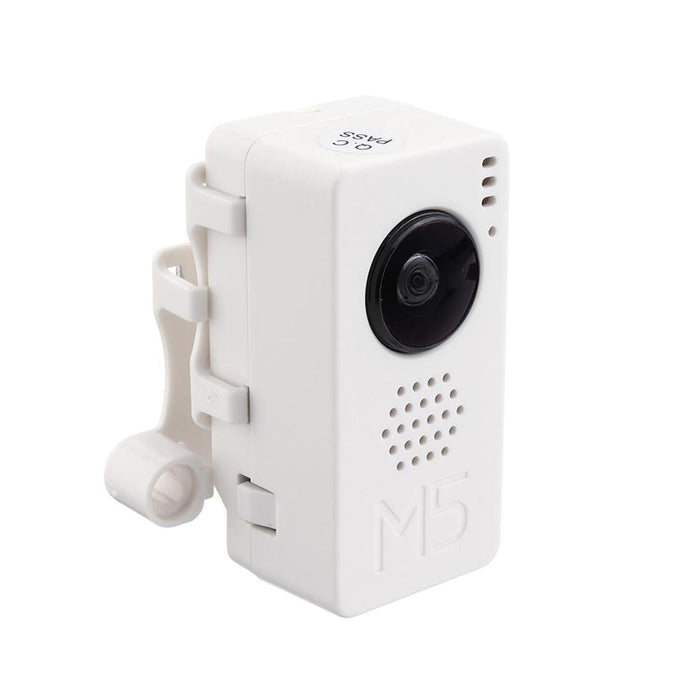

The M5CameraF is a compact ESP32-based camera module featuring a 2-megapixel OV2640 sensor with a 160° fish-eye lens. With built-in Wi-Fi and Bluetooth, it streams images over a wireless connection and can be programmed via USB Type-C. The module includes 4 MB flash, 4 MB PSRAM, and comes preloaded with Wi-Fi camera firmware.
Out of the box, the module creates a Wi-Fi access point — connect from your phone and open a browser to view the live camera feed at up to 600 × 800 resolution. A Grove connector provides I²C expansion, and reserved solder pads allow adding an MPU6050 gyroscope, BME280 pressure sensor, SPM1423 microphone, or LiPo battery.
Key Features
- 160° Fish-Eye Lens – Ultra-wide field of view for surveillance and monitoring
- ESP32 Processor – Dual-core Tensilica LX6 up to 240 MHz with Wi-Fi and Bluetooth
- 2 MP OV2640 Sensor – Up to 1600 × 1200 resolution
- 4 MB PSRAM – Ample memory for image buffering
- Wi-Fi Streaming – Built-in AP mode for wireless camera feed
- Grove Connector – I²C expansion port for additional sensors
- USB Type-C – Programming and debugging via CP2104 USB-to-TTL
- Expandable – Reserved pads for MPU6050, BME280, microphone, and battery
Specifications
- Processor – ESP32 (dual-core LX6, up to 240 MHz)
- Flash – 4 MB
- PSRAM – 4 MB
- Camera Sensor – OV2640 (2 MP)
- Max Resolution – 1600 × 1200 (UXGA)
- Field of View – 160°
- Frame Rates – UXGA/SXGA: 15 fps, SVGA: 30 fps, CIF: 60 fps
- Output Formats – YUV (422/420), RGB565/555, 8-bit compressed, raw RGB
- Wireless – 802.11 b/g/n Wi-Fi, Bluetooth Classic + BLE
- USB – Type-C (CP2104 USB-to-TTL)
- Expansion – Grove I²C port, reserved pads for IMU/barometer/mic/battery
- Dimensions – 23.5 × 48 × 23.5 mm

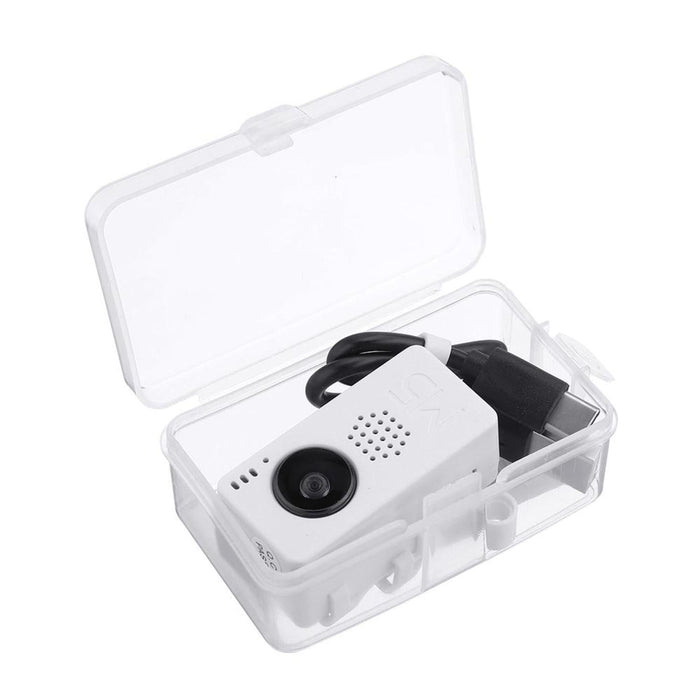

Package Contents
- 1× M5CameraF module
- 1× LEGO adapter

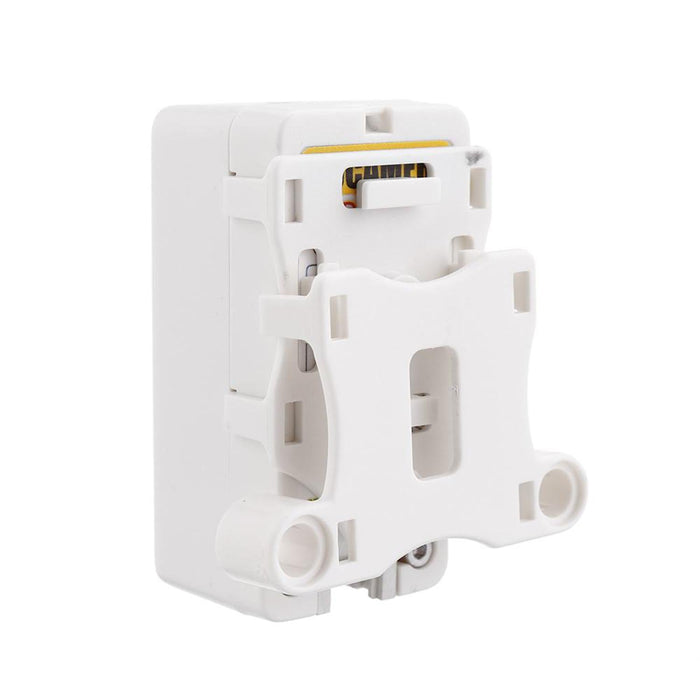

- 1× Wall/1515 mount
- 1× USB Type-C cable
