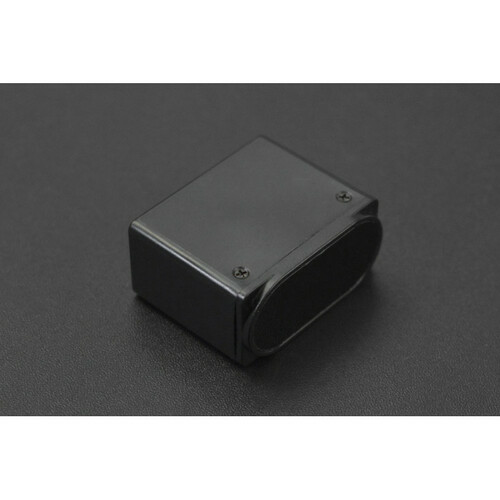

ToF Laser Ranging Module for Outdoor (15m)

The ToF Laser Ranging Module for Outdoor is a single-point laser ranging sensor designed for outdoor use. With 100K LUX ambient light resistance, it performs reliably even on bright sunny days.

Featuring a detection range of 5 cm to 15 m with 1 mm resolution and a 50 Hz refresh rate, this module supports UART, I2C, and I/O communication modes. Its compact form factor includes standard screw holes on the side and bottom for easy mounting in a variety of applications.

Key Features

• 100K LUX Ambient Light Resistance – Reliable outdoor operation in direct sunlight
• 5 cm to 15 m Range – Wide detection range with 1 mm distance resolution
• 50 Hz Refresh Rate – Fast data updates for real-time applications
• Multiple Communication Modes – UART (active and query output), I2C, and I/O
• Compact Design – 22.7 × 28 × 13.6 mm with standard mounting screw holes
• Reverse Connection Protection – Built-in power supply protection

Specifications

• Measuring Range – 5 cm to 15 m
• Measurement Resolution – 1 mm
• Ranging Accuracy – [0.05 m, 2 m] ±2 cm, std <0.5 cm; (2 m, 15 m] ±2%, std <8 cm
• Field of View (FOV) – 1–2°
• Refresh Rate – 50 Hz
• I2C Default Address – 0x08
• Wavelength – 750–830 nm
• Power Supply Voltage – 3.7–5.2 V
• Power Consumption – 610 mW
• Working Temperature – -10 to 60°C
• Dimensions – 22.7 × 28 × 13.6 mm
• Weight – 7.7 g

Ideal For

• Drone altitude hold and height setting
• Autonomous vehicle and smart car applications
• Industrial automation and distance measurement
• Route planning and obstacle detection
• Safety monitoring and high-speed measurement

Package Contents

• 1× Outdoor Laser Ranging Module (15 m)
• 1× GH1.25 4P Adapter Cable
• 2× Screws

Resources

• Product Wiki
