10-180cm Distance Sensor UART I2C output 3-5V
We have ✅ 5 available of the LB-LS1747 in our Sydney warehouse.

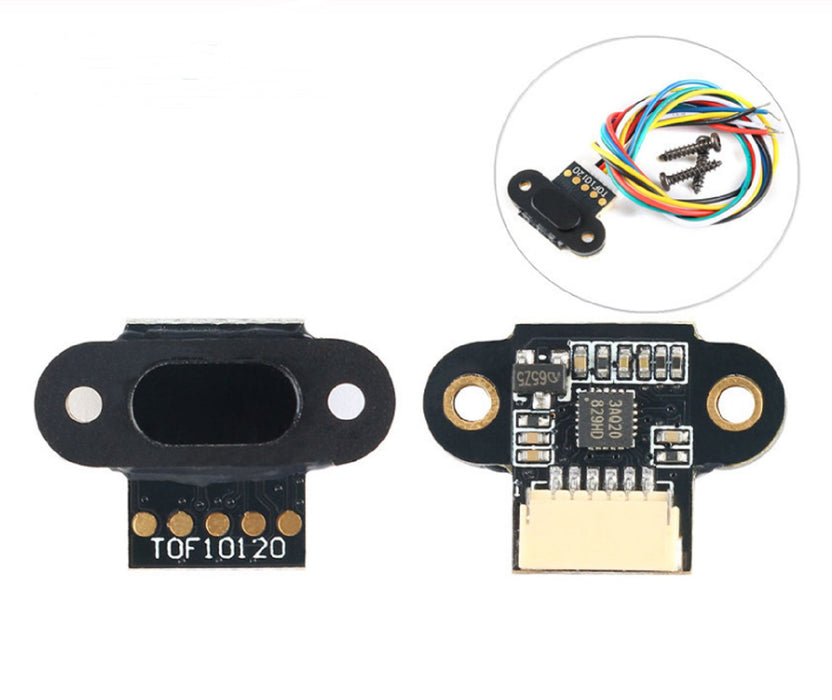

A compact distance sensor with a measurement range of 10–180 cm, featuring both UART and I2C output interfaces. It operates on 3–5 V, making it compatible with Arduino and other microcontrollers. The sensor includes high-speed auto-focus for accurate distance readings.
Key Features
- Measurement Range – 10–180 cm
- Output Interfaces – UART and I2C
- Operating Voltage – 3–5 V
- Cable – 1.0 mm pitch, 6-pin, 20 cm long
- Auto-focus – High-speed continuous auto-focus
Arduino Connection
- UART – Connect RXD to TXD and TXD to RXD
- I2C – Connect to A4 (SDA) and A5 (SCL)
Note: When using UART mode, disconnect A4 and A5. Upload your Arduino sketch before connecting the module, then reconnect after upload is complete. Use one communication mode at a time (UART or I2C, not both simultaneously).
Ideal For
- Robot obstacle detection
- Cleaning robot navigation
- Human body detection and proximity sensing
- Amusement equipment and interactive installations
Package Contents
- 1× Distance sensor module with cable
