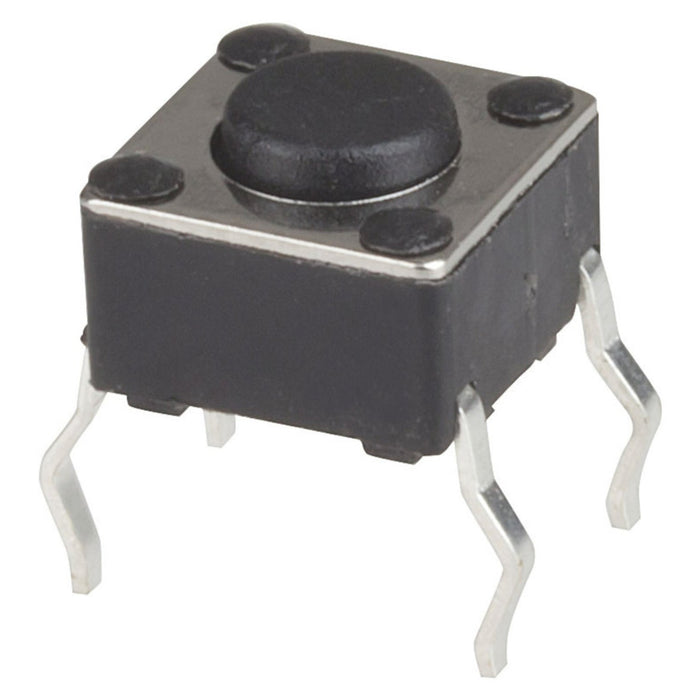

0.7mm SPST Micro Tactile Switch
We have ✅ 2 available of the TB-SP0600 in our Sydney warehouse.
Normally open SPST micro tactile switch.
Switch Type Tactile Pushbutton Poles / Contacts 1 pole Throws / Positions 1pos Switch Colour Coded Black Mechanism Material Plastic Switch Connection PCB Pins Switch Function Single Action Momentary Actuator Height 0.7mm Contact Resistance 100mΩ Insulation Resistance 100mΩ Dielectric Strength 100V Pole Throw Type SPST Actuator Diameter 3.4mm Mounting Method PCB Pin Spacing Width 6mm Pin Spacing Depth 6mm DC Voltage 12V DC current rating 50mA Length 6mm Width 6mm Height 3.2mm
Warranty: 3 Months
The 0.7mm SPST Micro Tactile Switch appears in the following collections:
SKU TB-SP0600
