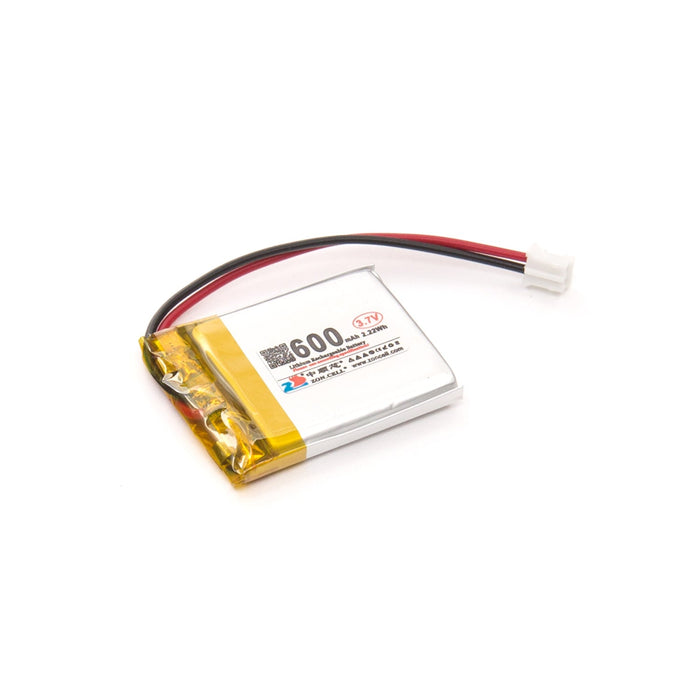

Lithium Ion Polymer Battery - 3.7v 600mAh
We have ✅ 308 available of the LB-00237 in our Sydney warehouse.
A compact 3.7 V 600 mAh lithium-ion polymer (LiPo) battery with a genuine 2-pin JST-PH connector. The battery includes built-in protection circuitry against overcharge, over-discharge (cuts off at 3.0 V), and short circuits. The genuine JST connector clicks smoothly in and out of matching jacks without snagging.
Key Features
- 600 mAh Capacity – Approximately 2.2 Wh of energy
- JST-PH Connector – Genuine 2-pin connector, pre-attached
- Built-In Protection – Overcharge, over-discharge, and short-circuit protection
- Lightweight – Just 10.5 g
Specifications
- Nominal Voltage – 3.7 V
- Capacity – 600 mAh
- Voltage Range – 3.0 V (cutoff) to 4.2 V (fully charged)
- Connector – 2-pin JST-PH
- Dimensions – 29 × 36 × 5.5 mm
- Power Lead Length – 80 mm
- Weight – 10.5 g
Warning: Only charge with a LiPo-compatible constant-voltage/constant-current charger at 600 mA or less (1C rate). Do not use NiMH, NiCd, or lead-acid chargers. Do not short, bend, crush, or puncture. Never charge or use unattended. Always inspect the battery and surrounding circuitry for damage or loose wiring before use.
Ideal For
- Portable microcontroller and IoT projects
- Wearable electronics
- GPS trackers and small sensor nodes
Package Contents
- 1× Lithium Ion Polymer Battery 3.7 V 600 mAh (with JST-PH connector)
The Lithium Ion Polymer Battery - 3.7v 600mAh appears in the following collections:
SKU LB-00237
by Little Bird
