34:1 Metal Gearmotor 25Dx52L mm HP 12V with 48 CPR Encoder
We have ✅ 2 available of the PL-3216 in our Sydney warehouse.

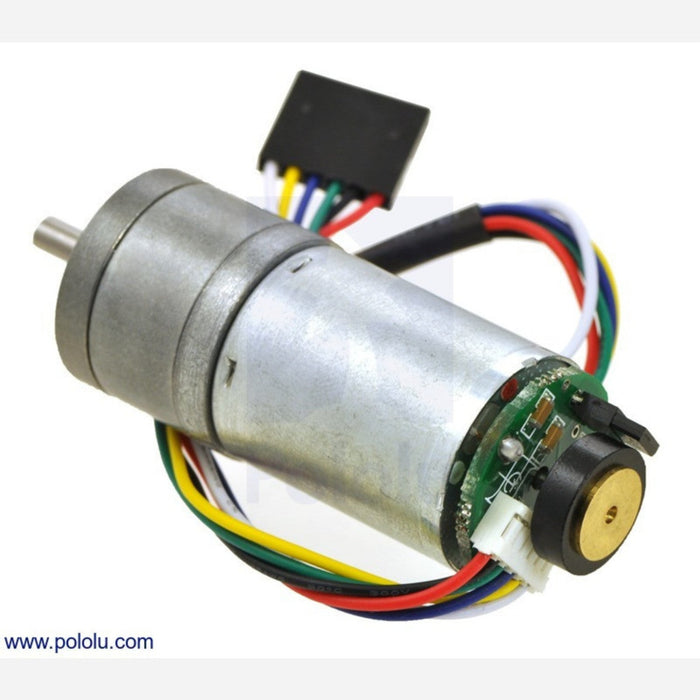

This gearmotor consists of a high-power, 12 V brushed DC motor combined with a 34.014:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 1632.67 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 290 RPM, 300 mA | 8.5 kg⋅cm (120 oz⋅in), 5.6 A |
