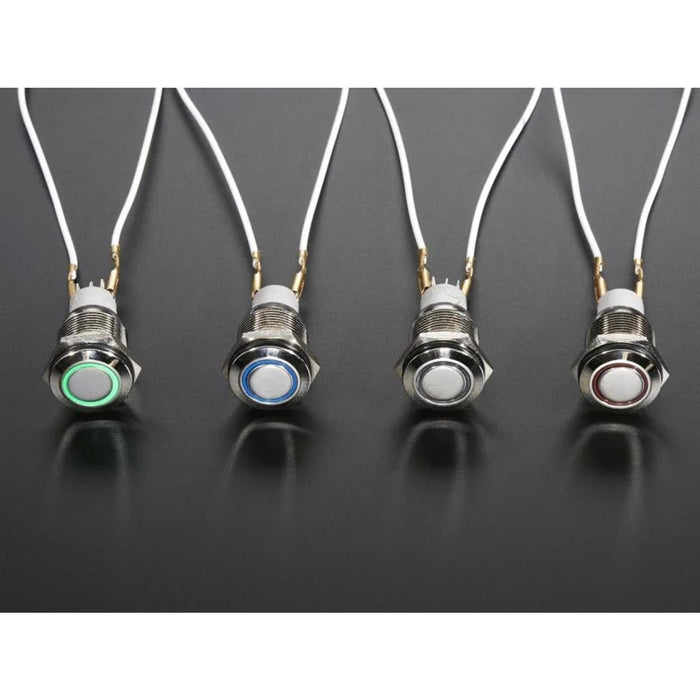

Rugged Metal Pushbuttons - Momentary —Various Colors
These chrome-plated metal buttons are tough without sacrificing style. They're momentary push buttons so when you press it the ‘normally-open’ contact shorts to the common contact. When you release it, the contacts open up again.
We have blue, green, red, white, and RGB variants. Check out the product pages for more information!
- Drill hole diameter: 16mm, 19mm, 22mm
- Switch rating: 3A / 250VDC
- Switch contacts: 1 NO, 1 NC
- Material: Chrome plated brass
- Contact resistance: < 50 mOhm
- Insulation resistance: > 1000 Mohm
- Temperature: -20 C to +55 C
- Mechanical life: > 500,000
- Electrical life: > 50,000
- Panel thickness: 1-13mm
- Operating pressure: 1.5 - 2.5 N
- Operating stroke: 2mm
- Lamp rated voltage: 6V
