DIY FM Radio Kit – 87-108MHz Digital Display

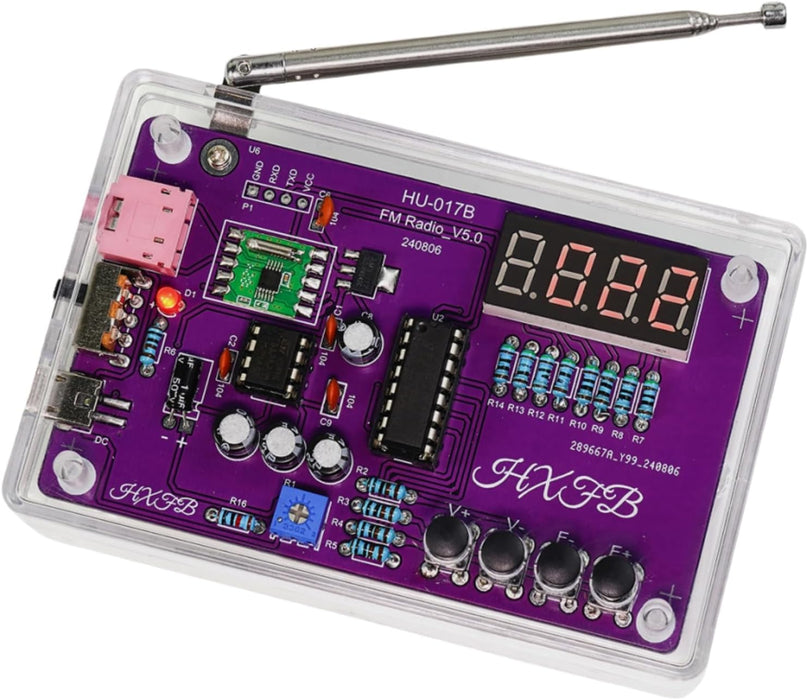

Take your soldering skills to the next level with this DIY FM Radio Kit! Designed for hands-on learning, this kit lets you build a fully functional FM radio receiver while refining your soldering techniques. The clear acrylic case puts the circuitry on display, making it a great educational tool for electronics enthusiasts.
Features:
- Adjustable Frequency Range – Tune into FM stations from 87-108MHz.
- Digital Display & Auto-Scan – Easily find and save up to 30 channels with automatic scanning.
- Dual Power Options – Runs on 3 × AAA batteries or USB power for convenience.
- Signal Level Adjustments – Customize reception with 15 adjustable signal thresholds and signal level display.
- Compact & Transparent Design – The clear acrylic case showcases your work while keeping components protected.
- Memory Retention – Keeps settings even after power-off.
- Power-Saving Mode – Turn off the display when not in use to conserve energy.
Specifications:
- Frequency Range: 87-108MHz
- Power Supply: 3 × AAA batteries or USB
- Max Working Current: 250mA (at max audio tuning)
- Case Dimensions: 103 × 68 × 30.5mm
- Weight: 136g

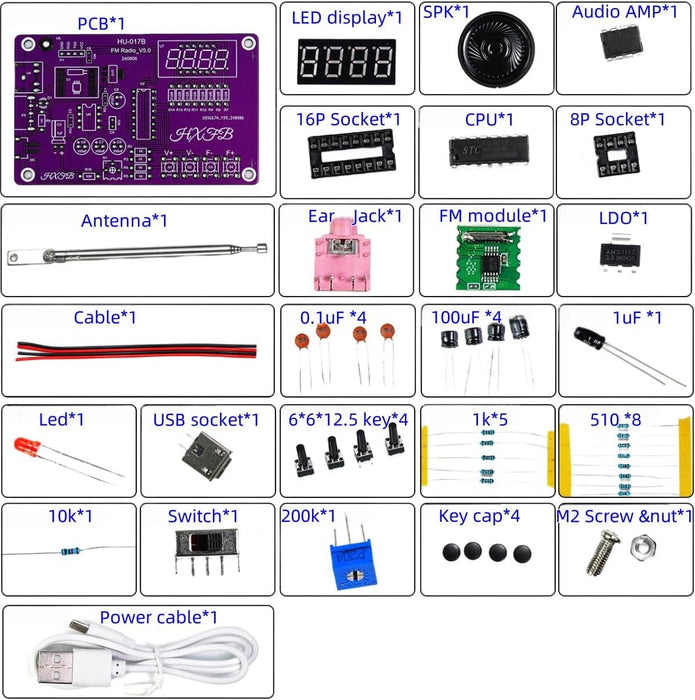

What's Included:
- DIY FM Radio Kit (RDA5807S-based circuit)
- Clear Acrylic Case - remove brown paper
