NeoPixel LED Outdoor Netting - 80 x 20 LEDs - 1x4 Meter Sizing
4 units will be available shortly.

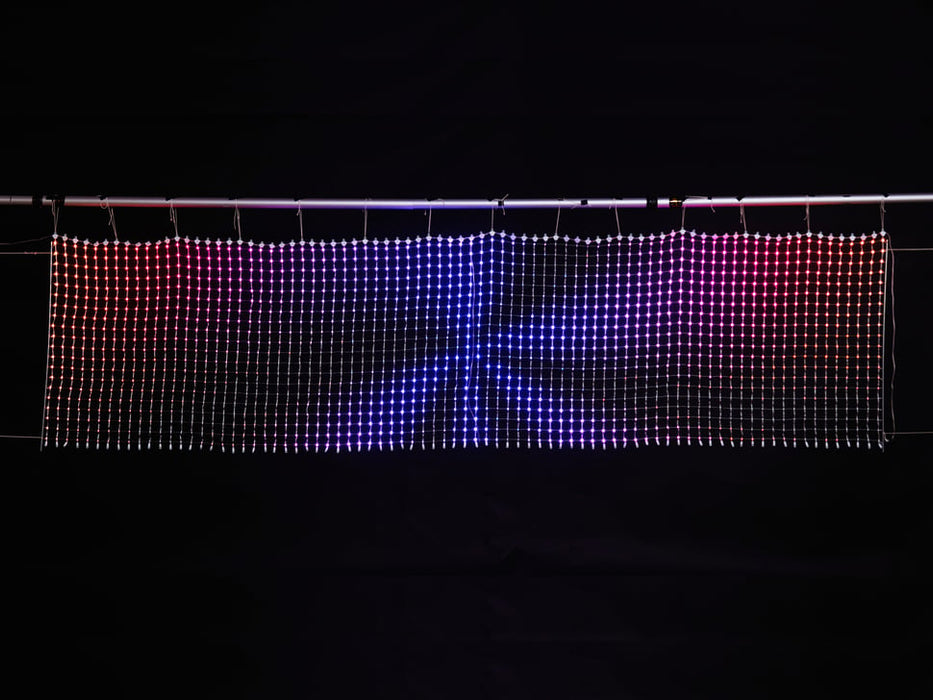

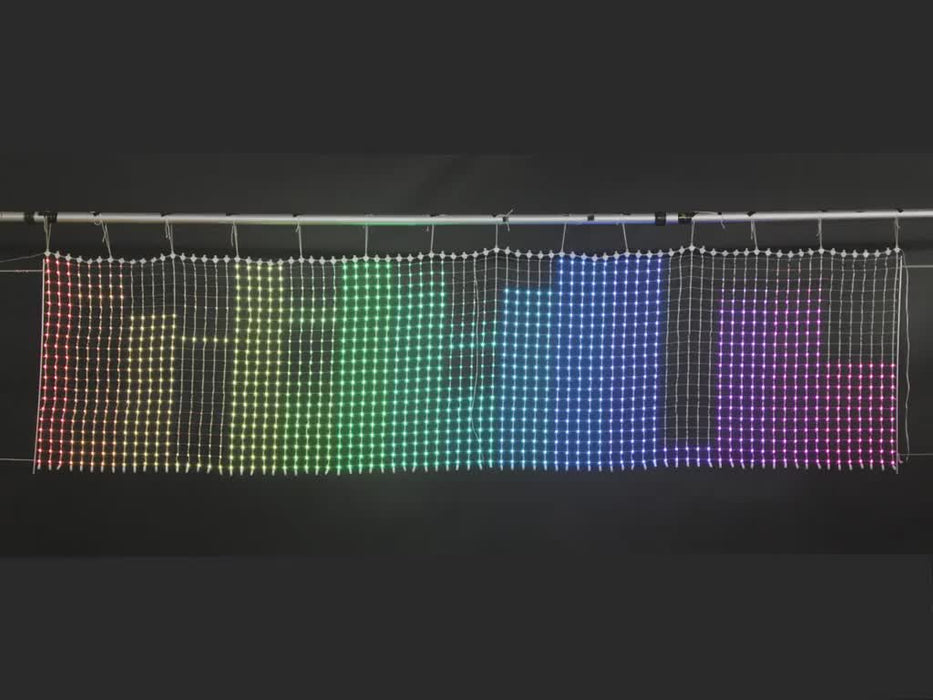

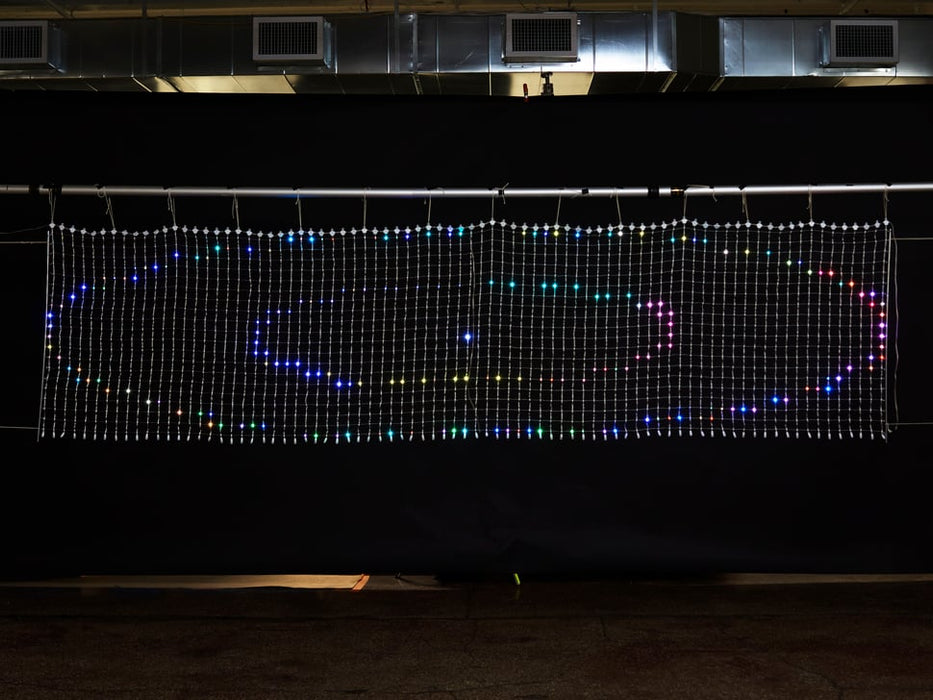

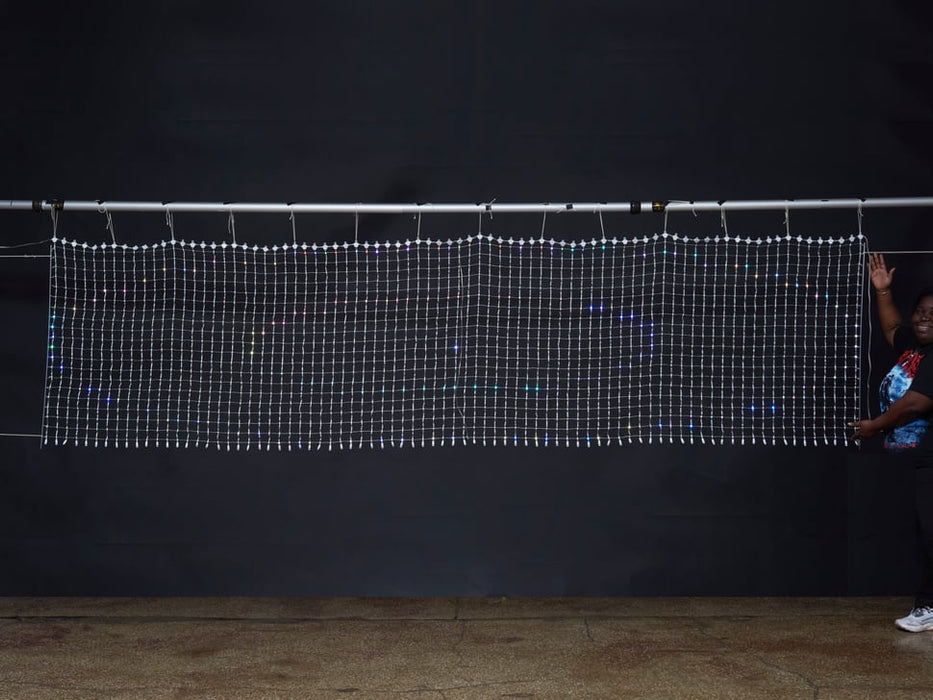

Easily create large-scale LED displays with this ready-to-use NeoPixel LED Outdoor Netting—no need to piece together multiple strips! This 20x80 RGB LED matrix provides a seamless 1,600-pixel display, all controlled with just one data pin.
Key Features:

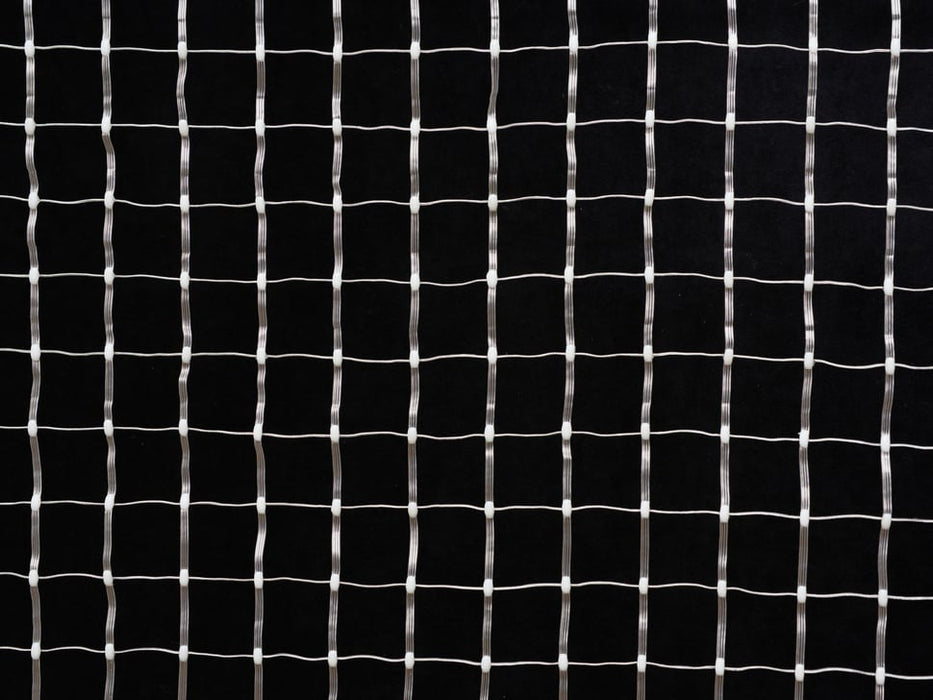

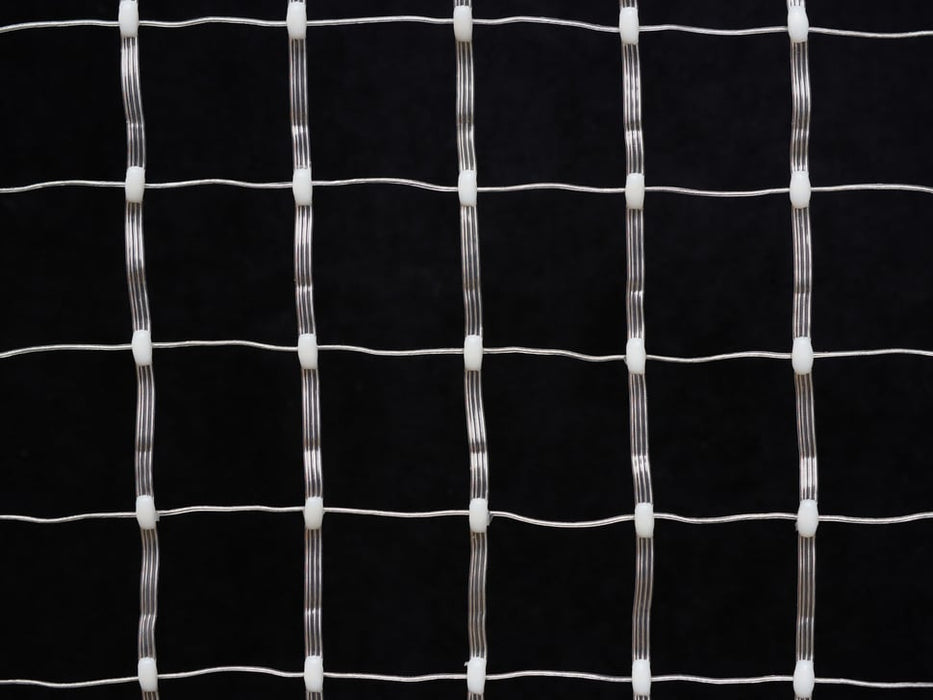

- 1,600 RGB LEDs arranged in a 20x80 grid, with 50mm (2") spacing in a zig-zag pattern.

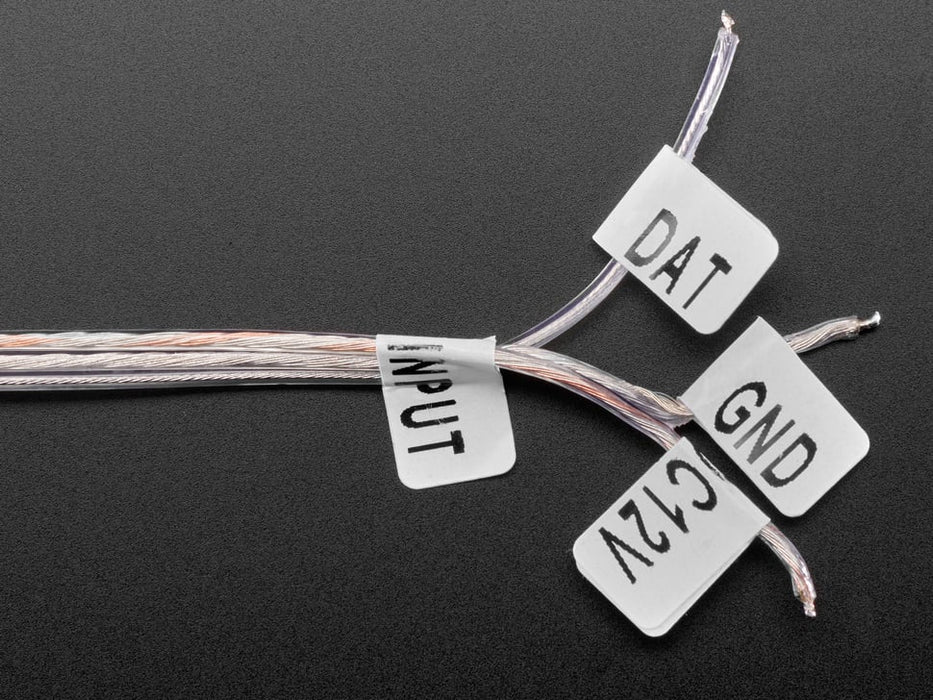

- Simple Data Input – Works with SK6812/WS2812/NeoPixel signals at 5V logic level (3.3V may work, but we don’t recommend it).
- 12V Power Supply Required – Lower voltages will cause dim lighting and voltage dips across the grid.
- Power Consumption – 30mA per LED at full brightness (up to 48A max). For most use cases, 12V 10A is sufficient.
Driving the Display
For the best experience, we recommend using our Sparkle Motion board, featuring:
- ESP32 processor
- Level-shifted output
- USB PD & DC input for easy 12V supply
- Compatible with WLED for quick setup
However, any controller capable of driving 1,600 NeoPixels will work!
Indoor & Outdoor Use
This LED netting is outdoor-friendly, but not waterproof. Avoid submerging it in water, and if exposed to harsh weather, bring it indoors. It also lacks UV resistance, so avoid long-term direct sunlight exposure.
Mounting & Expansion

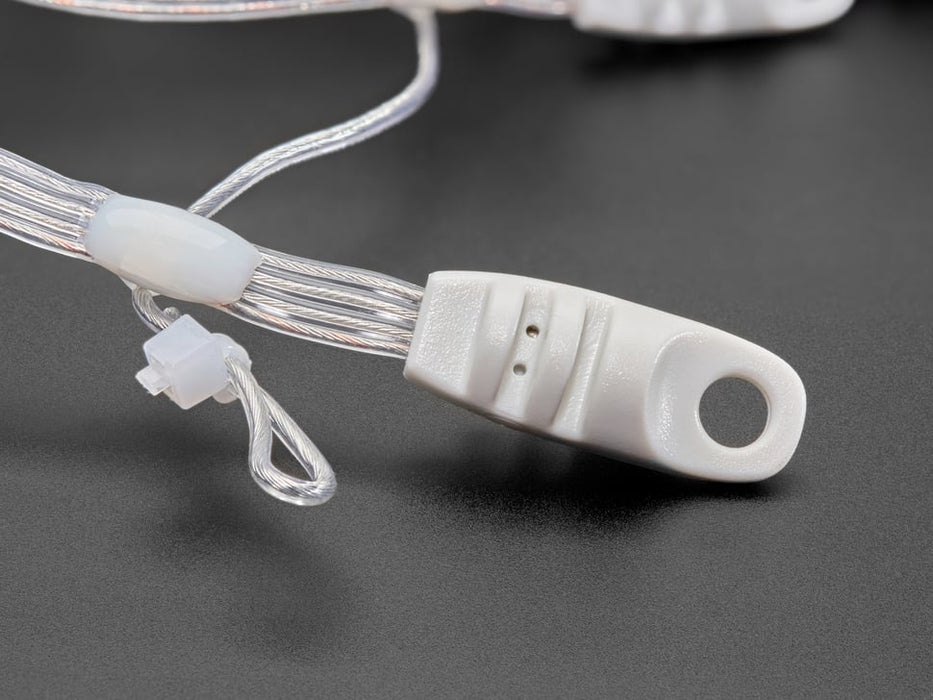

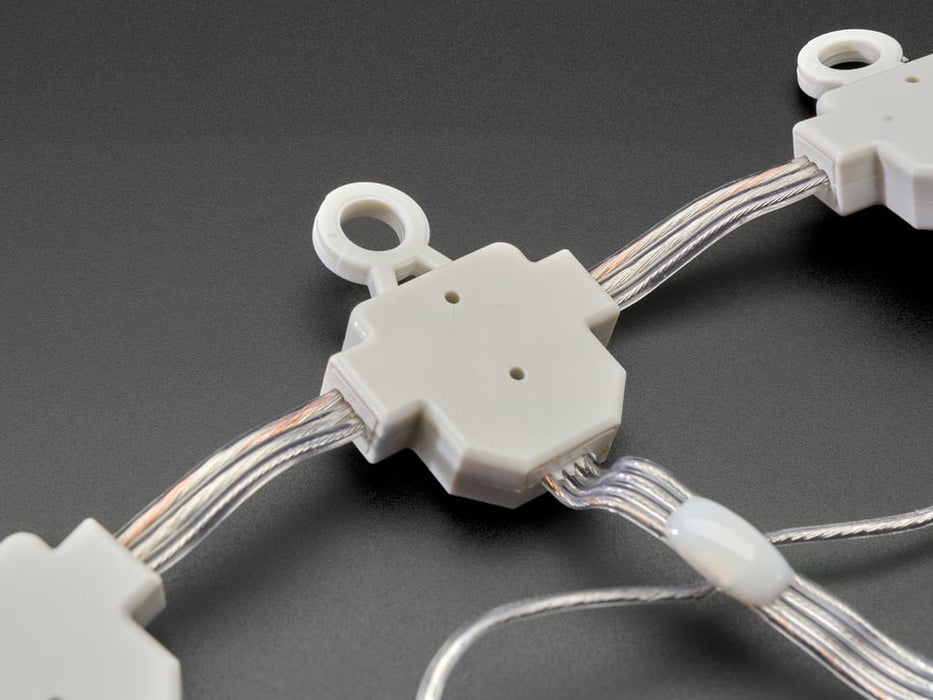

- Multiple attachment points – Plastic rings on the top & bottom, plus plastic-coated wire loops on the sides.
- Easily tile multiple grids together for larger displays.
A bright, flexible, and easy-to-install LED solution for events, stage setups, holiday decorations, and dynamic light installations!
