NeoPixel LED Outdoor Netting - 40 x 20 LEDs
3 units will be available shortly.

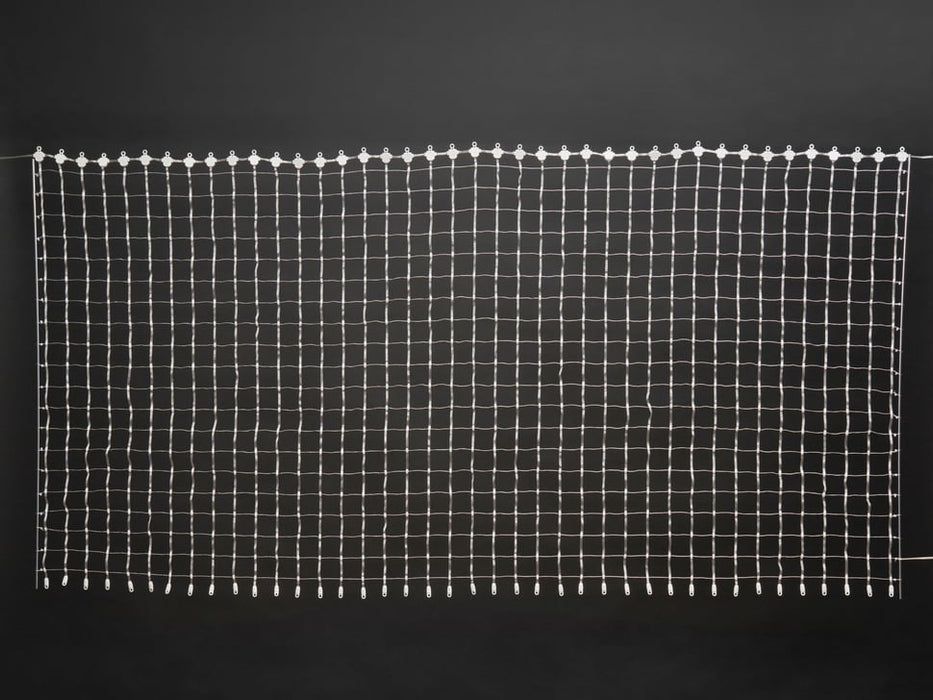

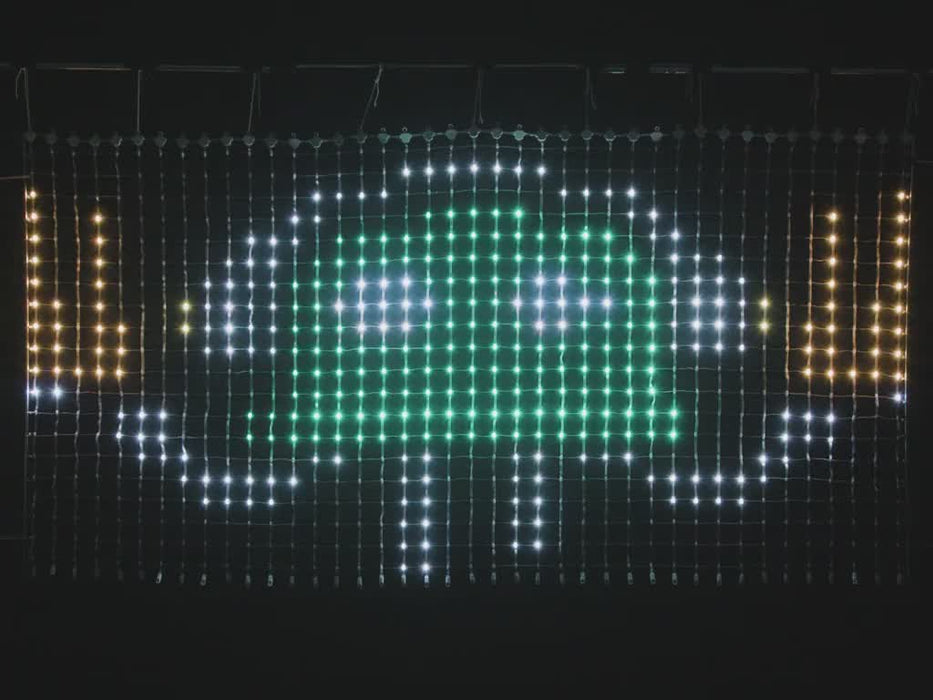

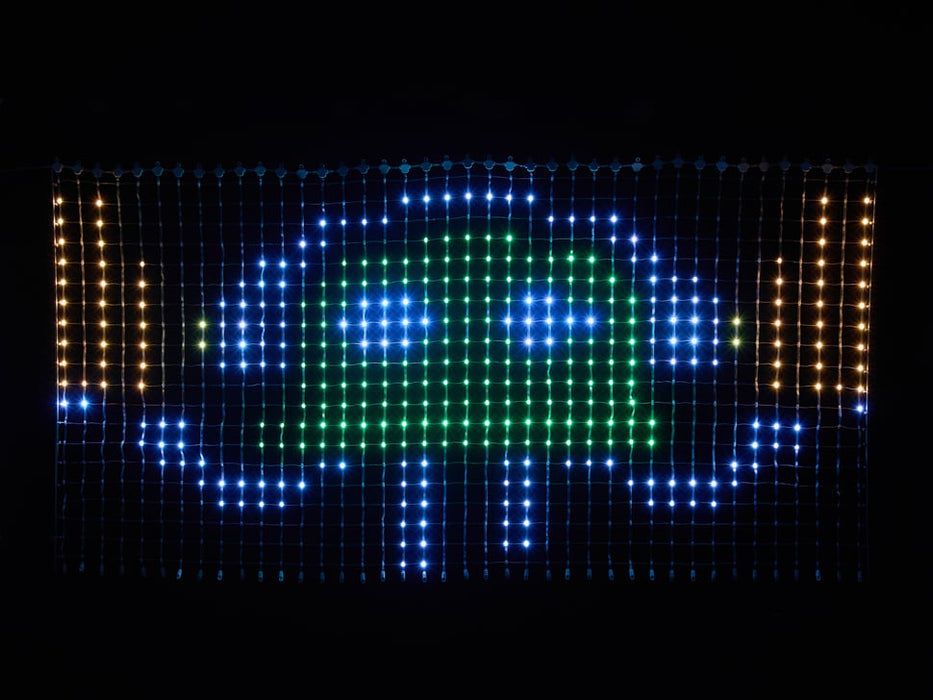

Creating large LED grids just got easier with this ready-to-use NeoPixel LED Outdoor Netting! No need to piece together multiple strips—this 40x20 RGB LED matrix delivers a seamless 800-pixel display, all controlled with a single data pin.
Key Features:

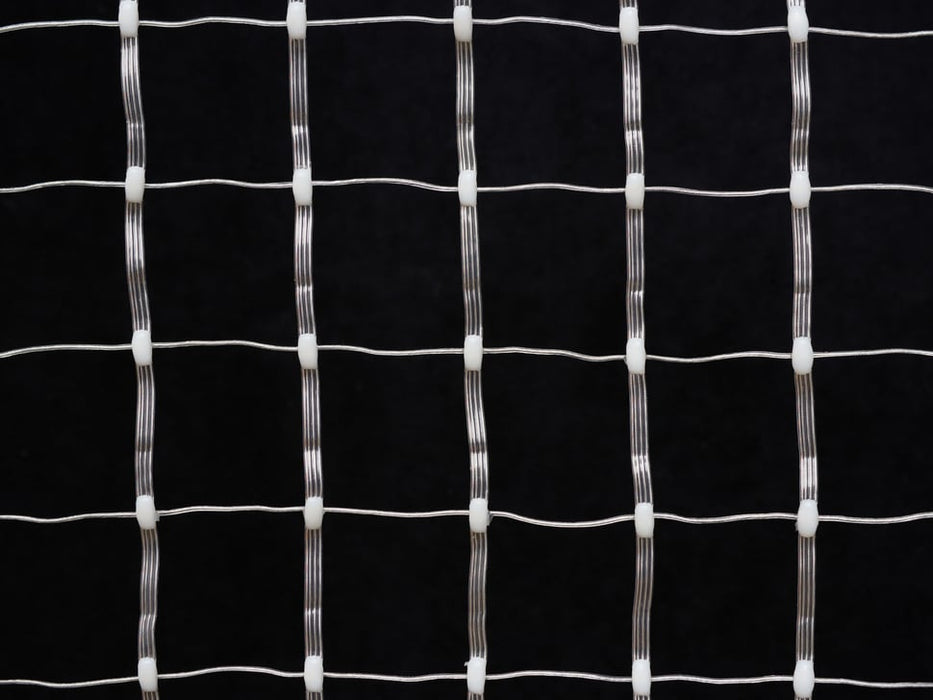

- 800 RGB LEDs arranged in a 40x20 grid, with 50mm (2") spacing in a zig-zag pattern.

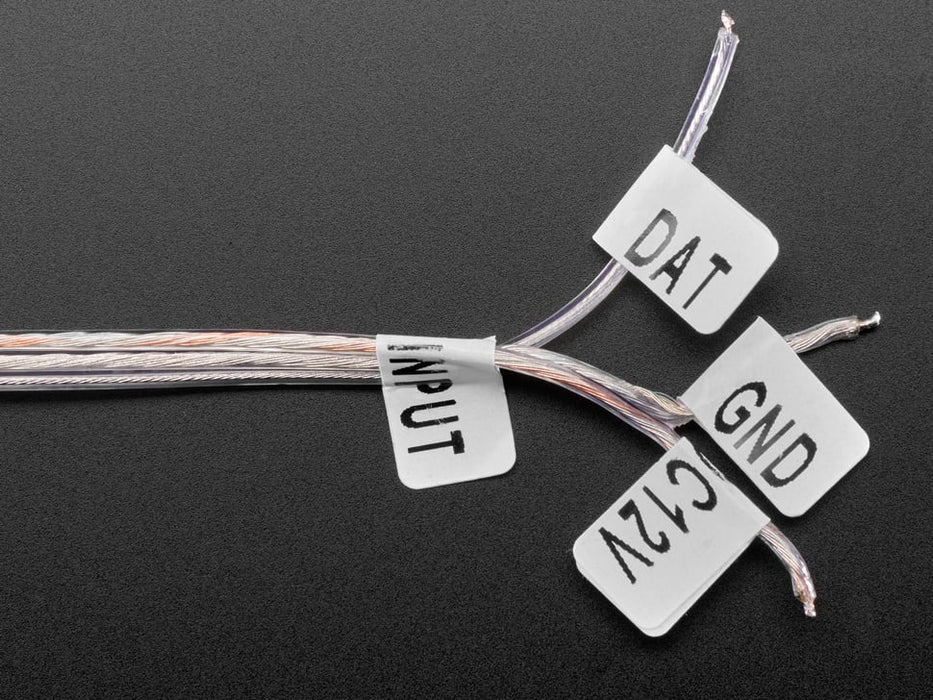

- Simple Data Input – Compatible with SK6812/WS2812/NeoPixel data at 5V logic level (3.3V may work, but we don’t recommend it).
- 12V Power Supply Required – While lower voltages may light it up, brightness and performance suffer.
- Power Consumption – 30mA per LED at full brightness (up to 24A max). For most use cases, 12V 5A is sufficient.
Driving the Display

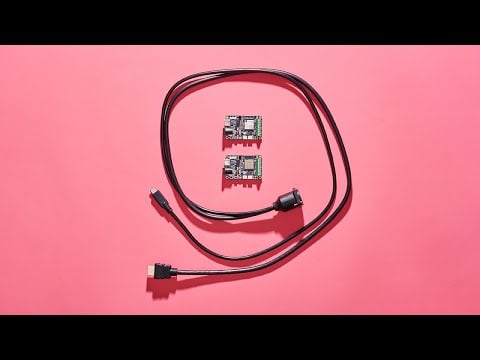

For the best experience, we recommend our Sparkle Motion board, featuring:
- ESP32 processor
- Level-shifted output
- USB PD & DC input for easy 12V supply
- Compatible with WLED for quick setup
However, any controller capable of driving 800 NeoPixels will work!
Indoor & Outdoor Use
This LED netting is outdoor-friendly, but not waterproof. Avoid submerging it in water, and if exposed to harsh weather, bring it indoors. It also lacks UV resistance, so avoid long-term direct sunlight exposure.
Mounting & Expansion

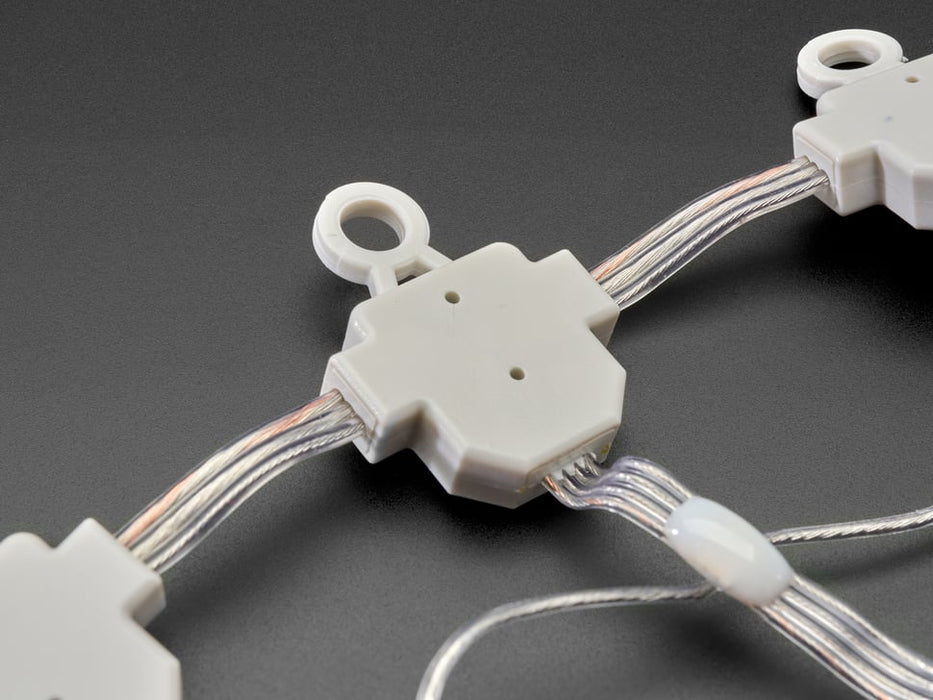

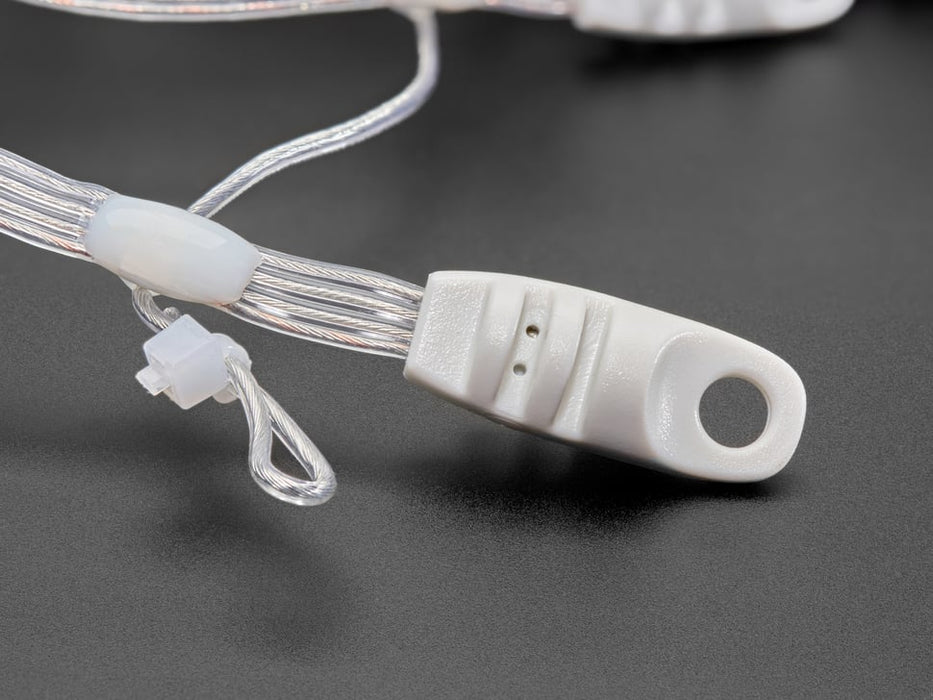

- Multiple attachment points – Plastic rings on the top & bottom, plus plastic-coated wire loops on the sides.
- Easily tile multiple grids together for larger displays.
A bright, flexible, and easy-to-install LED solution for events, stage setups, holiday decorations, and dynamic light installations!
