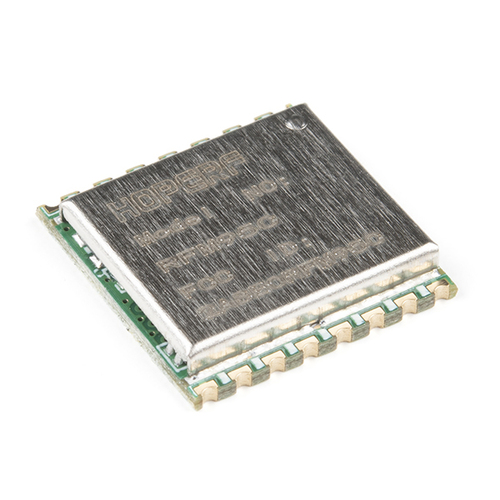

LoRa Transceiver Module (RFM95CW)
431 units will be available shortly.
RFM95CW is an ultra-low-power, high-performance LoRa transceiver for various frequency of 137-1020 MHz wireless applications. The high integration of RFM95C simplifies the peripheral materials needed in the system design. The sensitivity up to - 148 dBm which can optimize the link performance of applications. In addition, RFM95CW also supports Duty-Cycle operation mode, channel interception, high-precision RSSI, power-on reset, noise output and other more functions, which makes the application design more flexible thus to achieve product differentiation design. The working voltage of RFM95CW is 1.8V~3.7V. When the sensitivity is reaching -148 dBm, it only consumes 9.9 mA current. This ultra-low power mode can further reduce the power consumption of the chip.
Features:
- Frequency Range: 137~1020MHz
- Modulation: LoRa
- Data Rate: 0.018~37.5 kbps
- Sensitivity: -123 dBm , BW=12KHz, SF=12
- Voltage Range: 1.8~3.7 V
- Receiving Current: 12.5 mA @ BW=125KHz
- Supports Ultra Low Power Receiving Mode
- Sleeping Current
- 160 nA, Duty Cycle = OFF
- 600 nA, Duty Cycle = ON
- 4-wire SPI Interface
- Supports Full-automatic Independent Working Mode
