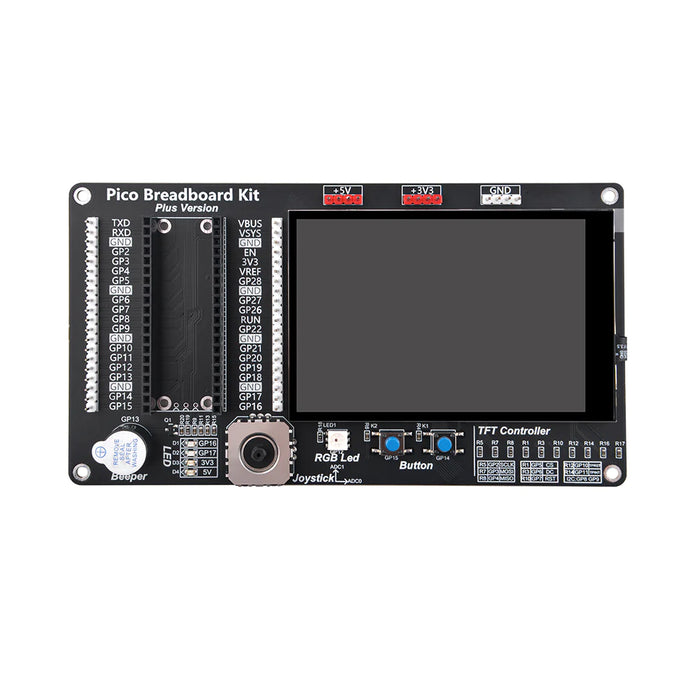

Raspberry Pi Pico/Pico W Breadboard Kit With 3.5 Inch Touch Screen Display LED Indicator On Board
The Pico Breadboard Kit with a 3.5-inch touch screen, mini PSP joystick, RGB light, buzzer, and two buttons is a versatile electronics kit designed for prototyping and experimentation. This compact kit combines various components to create interactive projects and offers a user-friendly interface.
- 3.5-inch Capacitive Touch Screen: The kit includes a high-resolution touch screen for displaying visual outputs and receiving user input.
- Mini PSP Joystick: The built-in mini joystick provides precise analog control for navigating menus and controlling movement in projects.
- RGB Light: The kit features an RGB light that can emit various colors, allowing for dynamic visual effects and status indicators.
- Buzzer: An integrated buzzer produces audible feedback, enabling sound effects or alerts in your projects.
- Two Buttons: The kit includes two buttons for user input, providing additional control options and interactivity.
- Label: Drop the jumper, all the information is marked on the PCB and can also be disconnected by removing the 0R resistor
- Joystick: Mini PSP joystick for analog control
- Light: RGB light for color output
- Buzzer: Integrated buzzer for audible feedback
- Buttons: Two buttons for user input
- TFT Size: 3.5 inches TFT
- TFT Resolution: 320x480 Pixels
- TFT IC: ST7796SU1 (*May vary with lot*)
- TFT Touch Type: Capacitive Touch Screen
- Weight: 0.25kg
- Package Size：Appro. 190mm*110mm*25mm
- 1 x Pico Breadboard Kit Plus version
- 1 x 3.5" Capacitive Touch TFT (already installed on the kit)
- 4 x Copper pillar
- 4 x M2.5 Screw
- 4 x M2.5 nuts
- 1 x Acrylic panel
- NOTE - PICO not included
