Arduino UNO WIFI

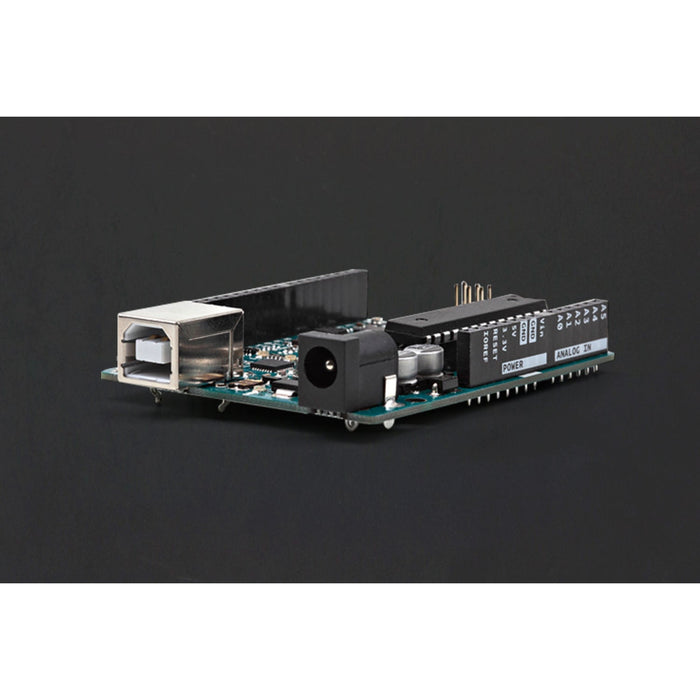

The Arduino UNO WiFi board is based on the ATmega328 and it has an integrated arduino ESP8266 WiFi Module. If you are starting out with Arduino, or starting with IoT, this is the board to get. The Arduino Uno Wi-Fi is the new Arduino Uno with an integrated Wi-Fi module! The board is based on the ATmega328P with an ESP8266 Wi-Fi Module integrated. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. The ESP8266 Wi-Fi Module is a self contained SoC with integrated TCP/IP protocol stack that can give access to your Wi-Fi network. (Or the device can act as an access point.) One useful feature of Uno Wi-Fi is support for OTA (over-the-air) programming, either for transfer of Arduino sketches or Wi-Fi firmware.

ARDUINO MICROPROCESSOR

• Processor ESP8266
• Architecture Tensilica Xtensa LX106
• Operating Voltage 3.3 V
• Flash Memory 4 MB
• RAM 8 MB instruction, 12 MB data
• Clock Speed 80 MHz
• WiFi 802.11 b/g/n 2.4 GHz
• Wake up time < 2 ms

• Microcontroller ATmega328
• Architecture Atmel AVR 8-bit
• Operating Voltage 5 V
• Flash memory 32 KB
• SRAM 2 KB
• Clock Speed 16 MHz
• Analog I/O Pins 6
• EEPROM 1 KB
• DC Current per I/O Pins 40 mA

• Digital I/O Pins 20
• PWM Output 6
• Power Consumption 93 mA
• PCB Size 53 x 68.5 mm/1.7 x 2.7 inches
• Weight 25g

• Start with Arduino INDUSTRIAL 101
• Arduino product page
• DSN files
• Schematic

• Arduino UNO WIFI x1
