Motoron M2H18v18 Dual High-Power Motor Controller Kit for Raspberry Pi

We have ✅ 1 available of the PL-5049 in our Sydney warehouse.

Express post delivery (2-5 business days)
The Motoron M2H family of dual high-power motor controller add-on boards makes it easy to control up two bidirectional, brushed DC motors with a compatible Raspberry Pi (Model B+ or newer). The M2H controllers are designed to stack on top of a Raspberry Pi (Model B+ or newer), similar to a HAT (Hardware Attached on Top), and multiple controllers can be stacked on top of each other, allowing independent control of many motors. Unlike most of our motor drivers and motor driver expansion boards for Raspberry Pi, the Motoron does not require any PWM outputs on your Raspberry Pi. Instead, the Raspberry Pi communicates with the Motoron using I²C, so only two GPIO pins are needed regardless of how many Motorons you connect

Details for item #5049

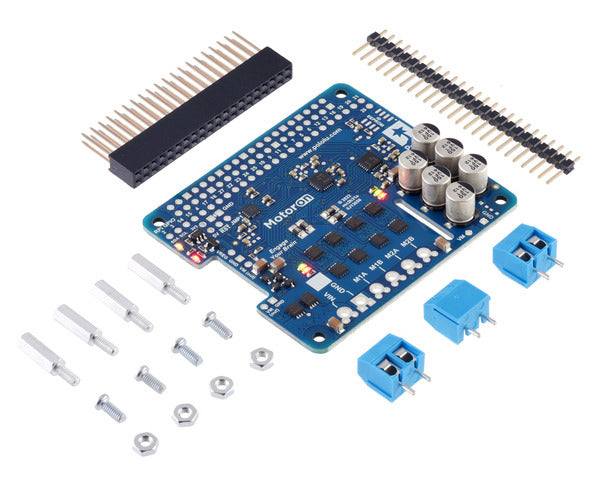

Motoron M2H18v18 Dual High-Power Motor Controller Kit for Raspberry Pi. |

Motoron M2H18v18 Dual High-Power Motor Controller for Raspberry Pi, top view.
The M2H18v18 controller operates from 6.5 V to 30 V (absolute maximum, not intended for use with 24 V batteries) and can deliver continuous output currents up to 18 A per motor. The M2H18v18 can be distinguished from other types of M2H controllers by its smaller discrete MOSFETs and the number 150 on top of the tall silver electrolytic capacitors.

This version is a kit with the following connectors included but not soldered in:

It also includes a set of four M2.5 standoffs (11 mm length), screws, and nuts that can be used to secure the board at the proper height

The Motoron M2H18v18 Dual High-Power Motor Controller Kit for Raspberry Pi appears in the following collections:

SKU PL-5049
