Leddar M16 Sensor Module (95 degree beam)

INTRODUCTION

The Leddar M16 Sensor Module is an advanced sensing solution that combines 16 independent active elements into a single sensor, resulting in rapid, continuous and accurate detection and ranging-including lateral discrimination-in the entire wide beam, without any moving parts. The versatile Leddar M16 module can be easily integrated to add cost-effective, smart sensing capabilities to almost any application, enabling developers and integrators to make the most of this cutting-edge technology. Various beam options, creating different fields of view ranging from 9 to 95 degrees, are available to provide the best possible match to your requirements.

The modules come with the Leddar Enabler SDK, which provides a user-friendly application programming interface (API) with .Net and C libraries, complete with code examples. Sample code for RS-485/MODBUS for both Windows and Linux, as well as LabVIEW and MATLAB integration examples are also provided. Benefits:

• Proven reliability, even in harsh conditions
• Immune to ambient light
• No moving parts, for ultimate robustness
• Easy to integrate, includes Leddar Enabler SDK
• Low power consumption
• Best cost/performance ratio

FEATURES

• 16 independent segments with simultaneous acquisition and lateral discrimination capabilities
• 9o to 95o beam options, for optimized field of view
• 0 to 100 meter detection range (325 ft.)
• Rapid data acquisition time, up to 50 Hz

SPECIFICATION

• Beams: 95 degree
• Detection range: 0 to 100 meters (325 ft.)
• Accuracy: 5 cm
• Data refresh rate: 6.25 Hz to 100 Hz
• Operating temperature range: -40C to + 85C
• Meets IEC 62471 2006 criteria: Exempt lamp classification
• Distance precision: 6 mm
• Distance resolution: 10 mm
• Power consumption: 4 W
• Interfaces: USB, RS-485, CAN, UART
• Wavelength: 940 nm
• Power supply: 12 or 24 VDC (jumper - selectable)

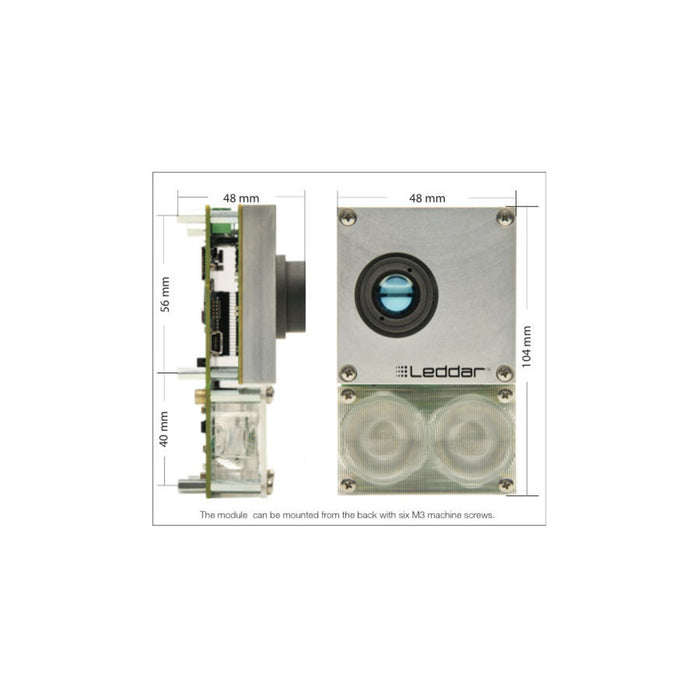

• Dimensions: 104 x 66 x 48 (mm)/ 4.09 x 2.6 x 1.89 (inches)
• Weight: 180 g

DOCUMENTS

• Specification sheet
• Note: All the documents, SDK, code examples are on support portal. To gain access to the Download section you need to register for a free account. Once you will be registered you will find everything that you need at the link.

SHIPPING LIST

• Leddar M16 Sensor Module (95 degree beam) x1
