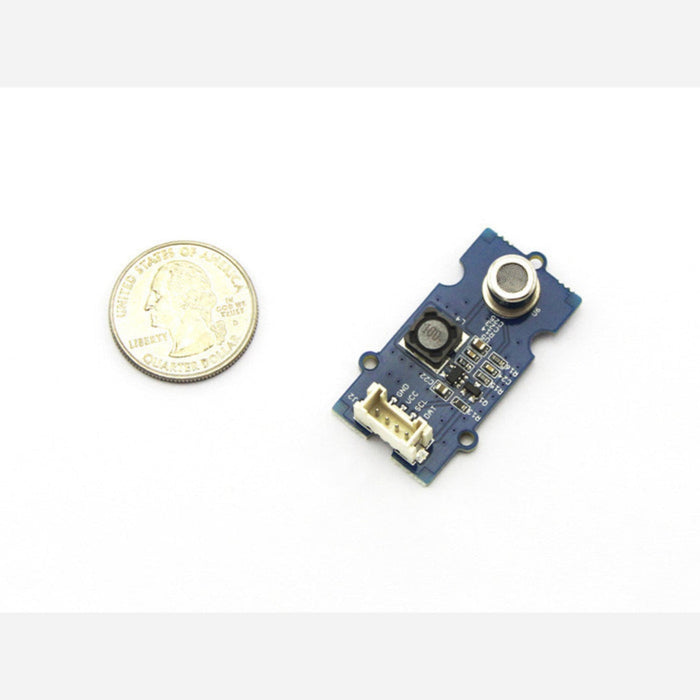

Grove - Alcohol Sensor
We have ✅ 1 available of the SS-101020044 in our Sydney warehouse.
Alcohol sensor is semiconductor sensor for alcohol detection. It has good sensitivity and fast response to alcohol, suitable for portable alcohol detector.
Specifications
- Power requirements: 5 VDC @ ~120 mA (heater on)
- Detection Gas: Alcohol
- Concentration: 20-1000ppm Alcohol
- Interface: 1 TTL compatible input (SEL), 1 TTL compatible output (DAT)
- Dimension: 40×20×12mm
- Heater Voltage: 0.9V ± 0.1V AC or DC
- Heater Current: 120±20mA
Application Ideas
- Alcohol level over-limit alarm
- Stand-alone/background sensing device
- Environmental monitoring equipment
Documents
Please visit Seeed Studio's wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
More information about gas sensor, please refer to this manual.
