LoRa Raspberry Pi Gateway with Enclosure

LoRa is a fantastic advancement in the field of wireless communication. The multi-kilometer distances are incredible! Point to point LoRa ihas been nailed down with various low cost Semtec based modules like the RFM95 but the true power of an open IoT network is LoRa gateways. These provide public access across the globe to any LoRa node as long as the node follows the guidelines (don’t use more than your share of bandwidth). But what gateway do you need?

The LoRa Raspberry Pi Gateway is a professional grade gateway with the hacker in mind. While other low cost gateways are a single channel, the LoRa Raspberry Pi Gateway comes with a fully heat-sinked concentrator capable of multi-channel, multi-node communication all running in a friendly, hackable Raspberry Pi environment.

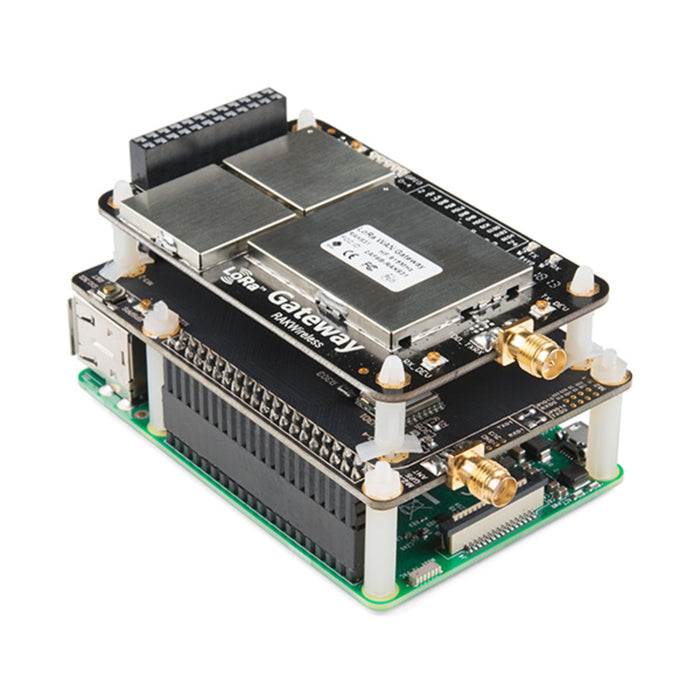

The LoRa Raspberry Pi Gateway uses the high-power multichannel SX1301 processing engine specifically designed for LoRa gateways. If you’re just experimenting with LoRa, a single channel gateway is a fine way to go; we offer the ESP32 1-Channel LoRa Gateway based on the SX1276/78 RFM95 module. But if you’re planning on having multiple, public LoRa nodes you’ll need a proper gateway.

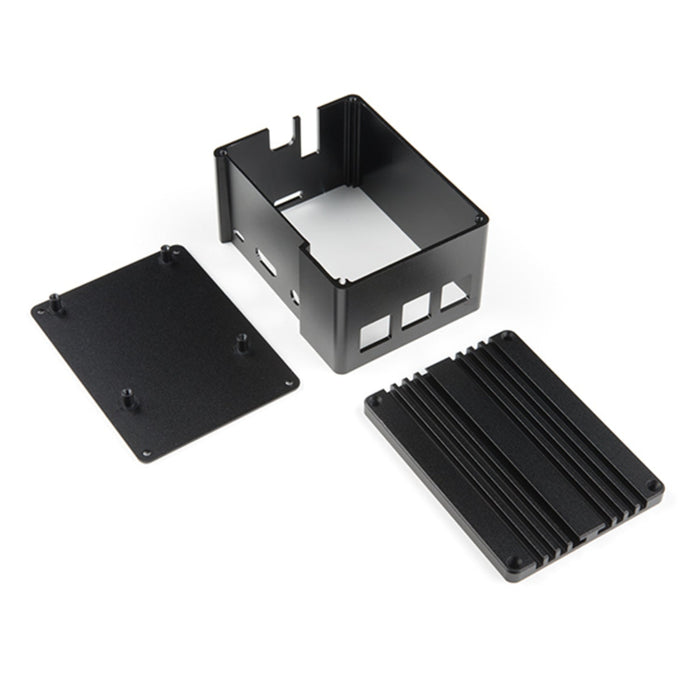

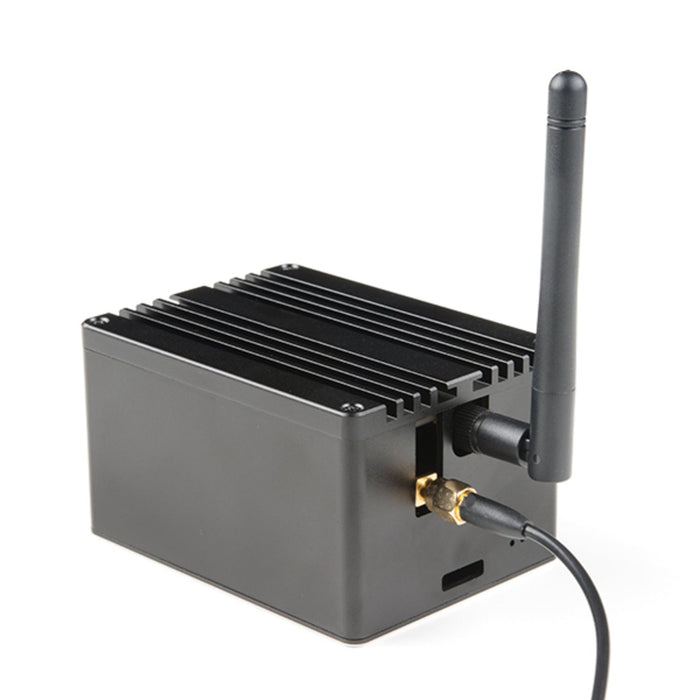

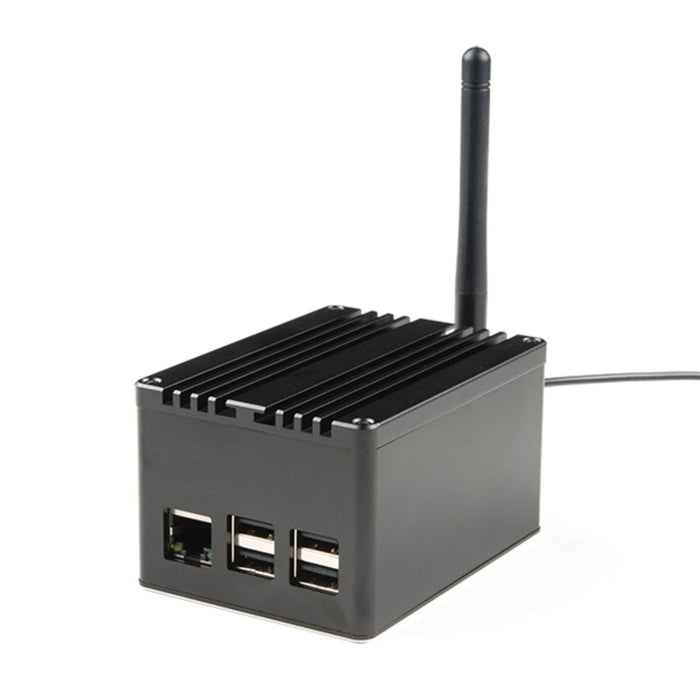

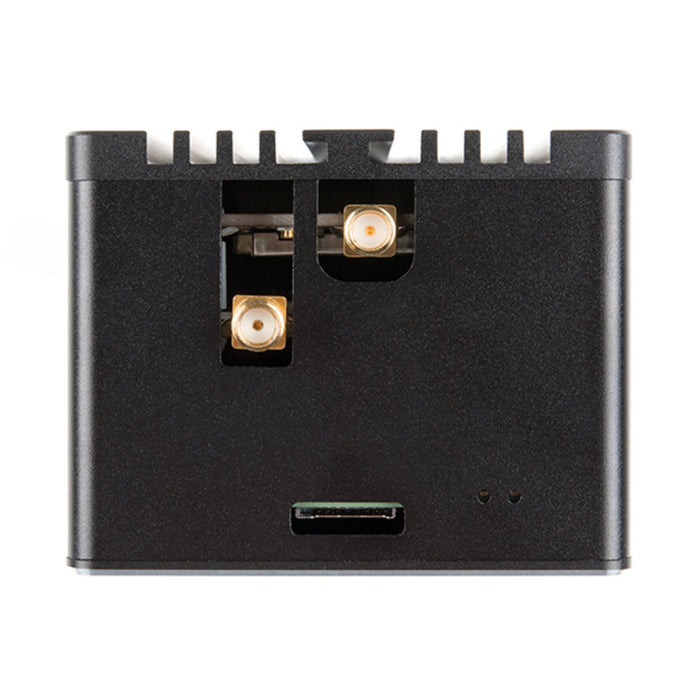

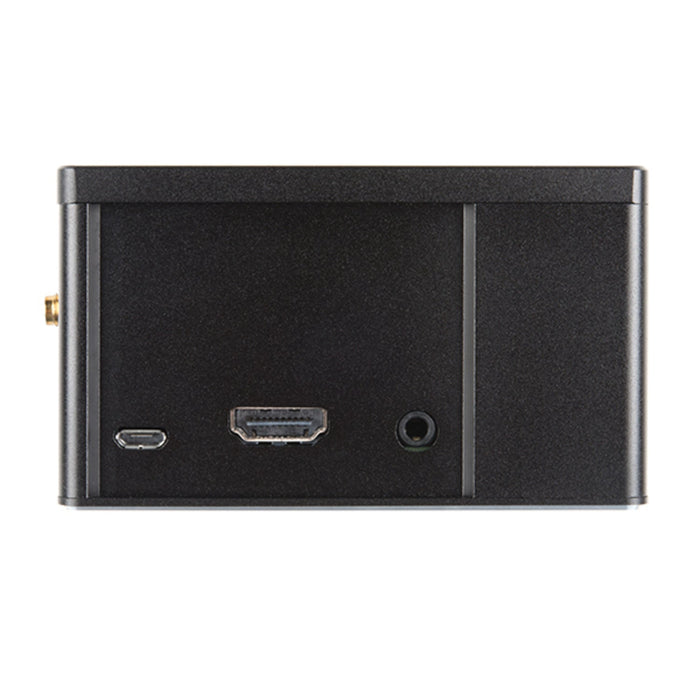

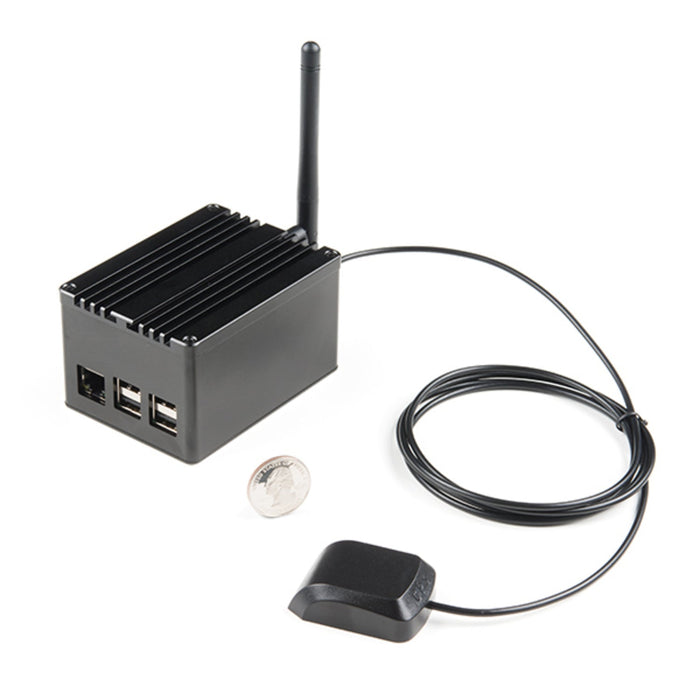

Designed for the US and Australia, the 915MHz LoRa gateway comes fully assembled in a black anodized aluminum enclosure using the Raspberry Pi 3 as its backbone. You’ll need to provide your own microSD card. We recommend using Resin to create your Linux image. RAK Wireless (the makers of the gateway) have a well written tutorial guiding you through the setup. The gateway includes a 2dBi 915MHz antenna and a multi-frequency GNSS(GPS) antenna. If you’d like to increase the LoRa range we have 2dBi ½ wave and 6dBi antenna upgrades available.
