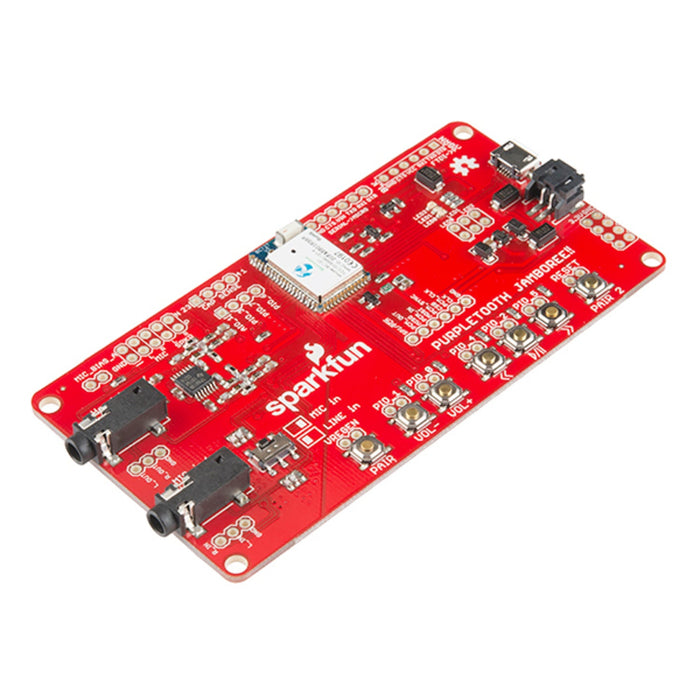

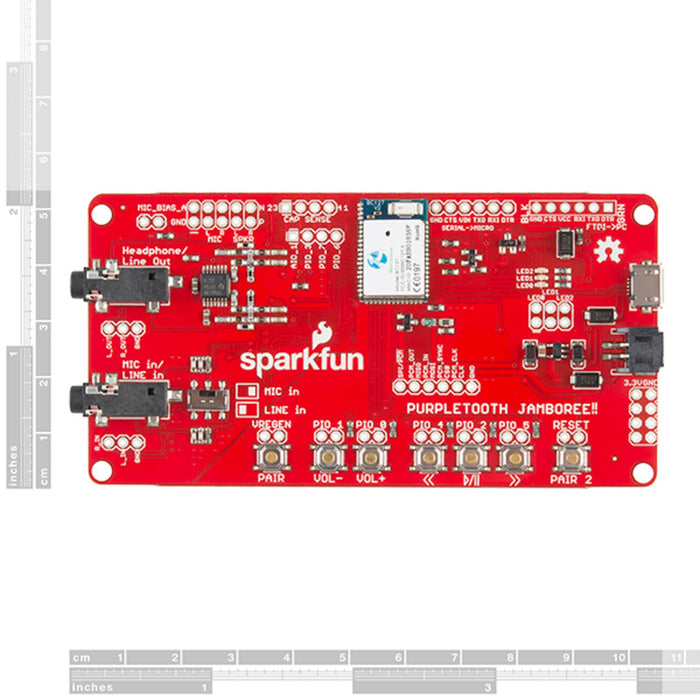

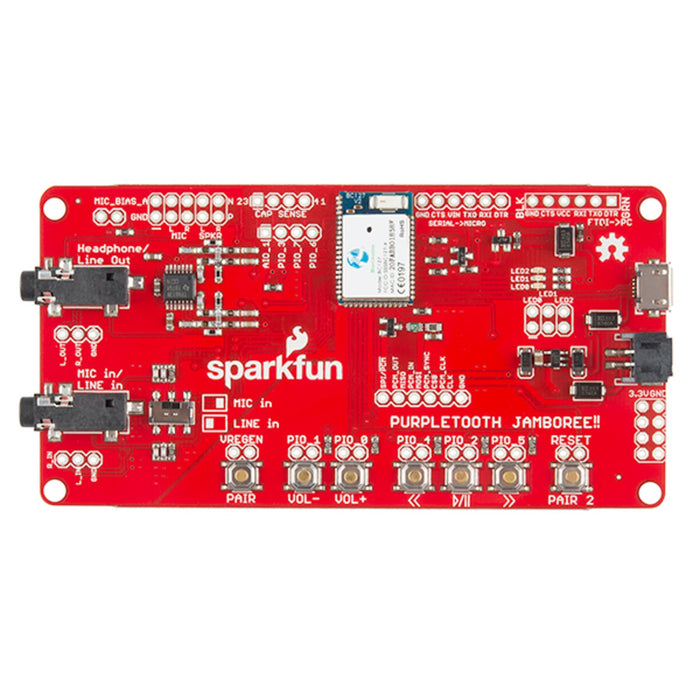

SparkFun Purpletooth Jamboree - BC127 Development Board
The SparkFun Purpletooth Jamboree is a Bluetooth audio development board built around the BC127 dual-mode Bluetooth module. It supports Bluetooth Classic (2.1) audio profiles — A2DP for stereo streaming, HFP for hands-free calling, and AVRCP for playback control — as well as Bluetooth 4.0 (BLE) for data applications.
The board includes balanced-to-single-ended audio conversion circuitry, a headphone amplifier, microphone input, seven control buttons (volume, track, play, pair), battery charging, and serial headers compatible with FTDI breakouts, Arduino Pro, Pro Mini, and LilyPad boards.
Key Features
- BC127 Dual-Mode Bluetooth – Bluetooth 2.1 Classic + Bluetooth 4.0 BLE
- Audio Profiles – A2DP stereo streaming, HFP hands-free, AVRCP playback control
- 3.5 mm Audio Jacks – Mic/line input and headphone/line output
- Through-Hole Audio Headers – 4-pin mic adapter and L/R speaker adapter pads
- 7 Control Buttons – Volume, track skip, play/pause, and pairing
- Serial Interface – 6-pin FTDI-compatible header for command mode and data mode
- Battery Charging – On-board charge circuitry for LiPo batteries
- Micro-USB Port – For power and firmware updates
- Serial Port Protocol – Transparent data pass-through over Bluetooth in data mode
Tip: A 5 V FTDI adapter is required for sending serial commands. The micro-USB port provides power and firmware update capability but not serial command access.
Ideal For
- Bluetooth audio streaming projects
- Wireless speaker and headphone builds
- Hands-free voice communication systems
- BLE data transfer applications
Package Contents
- 1× Purpletooth Jamboree (BC127 Development Board)
