SparkFun myDAQ Protoboard Kit

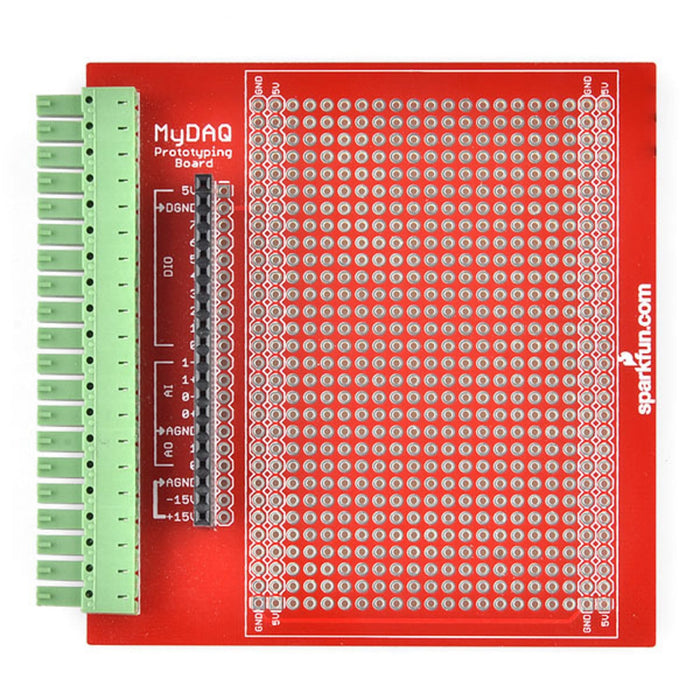

A prototyping board designed to connect directly to the National Instruments myDAQ measurement and control tool. All myDAQ I/O lines are broken out to standard 0.1" pitched headers and female headers for easy breadboarding with jumper wires. The board includes a prototyping area with GND and 5V rails.

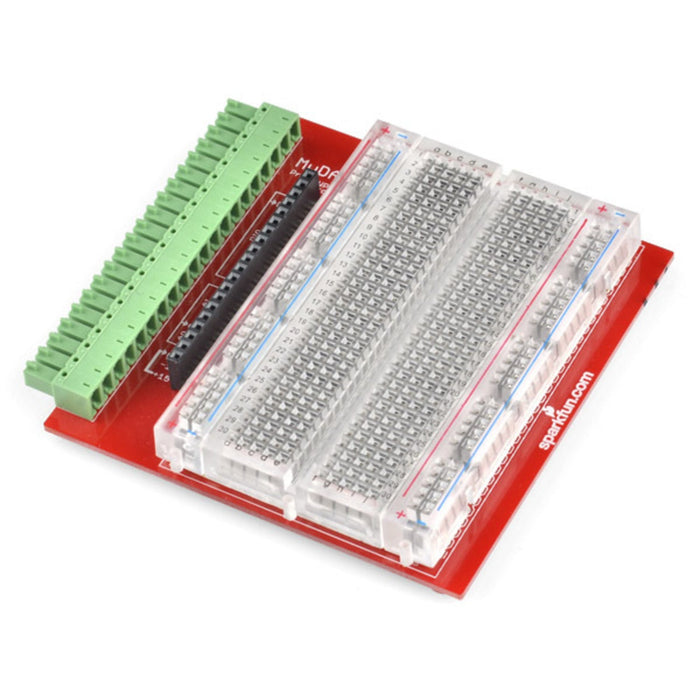

A clear self-adhesive breadboard is included and can be mounted over the prototyping area for solderless prototyping.
Key Features
- Direct myDAQ Connection – Terminal block for the NI myDAQ
- Full I/O Breakout – All myDAQ lines broken out to 0.1" headers
- Female Headers – Easy jumper wire connections for breadboarding
- Prototyping Area – Solder-ready with GND and 5V power rails
- Included Breadboard – Clear, self-adhesive, mounts over the proto area
Package Contents
- 1× Protoboard with myDAQ Terminal Block and Female Headers
- 1× Clear Self-Adhesive Breadboard
- 4× Silicone Bumper Feet
Note: National Instruments myDAQ is required and sold separately.
