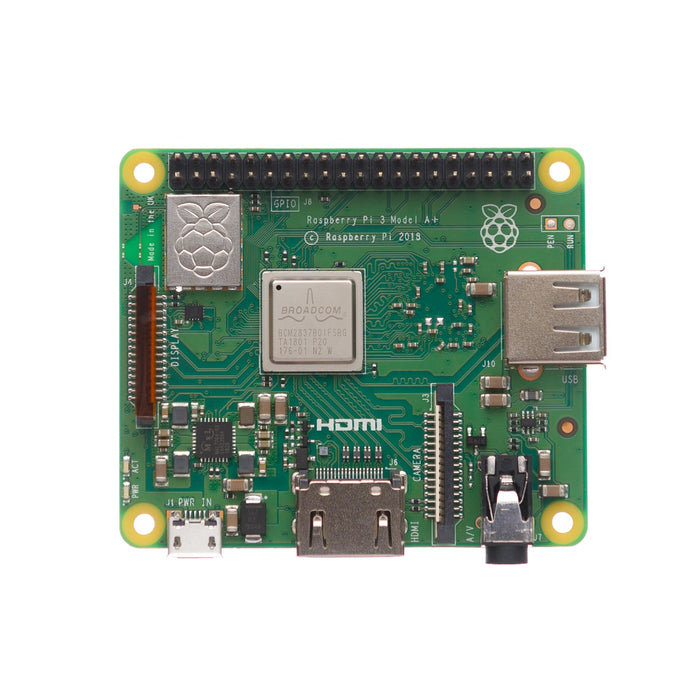

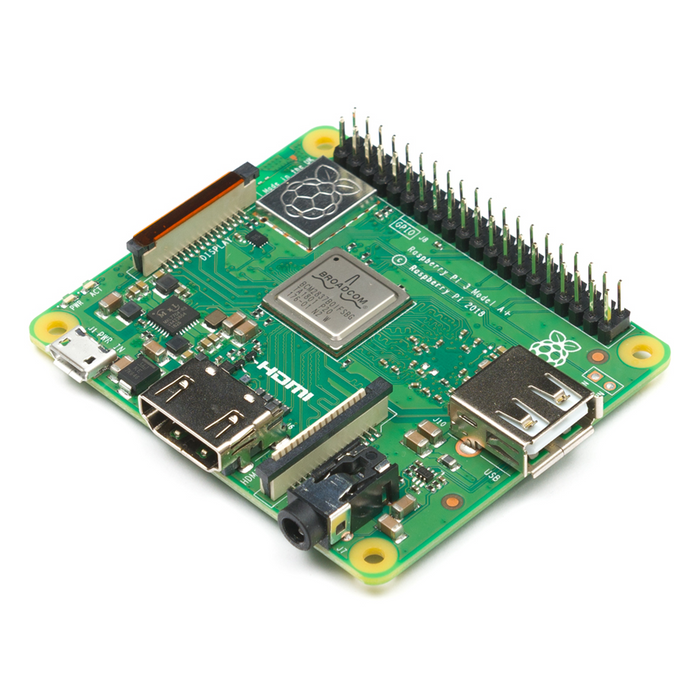

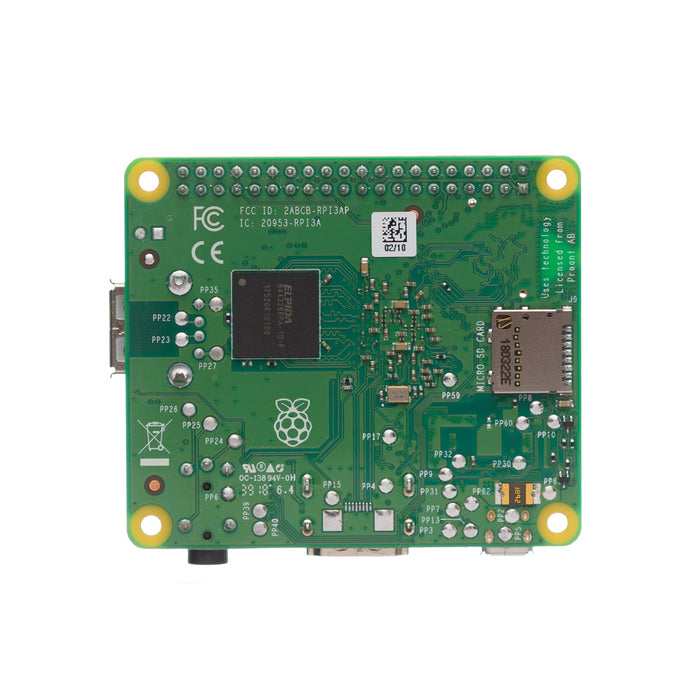

Raspberry Pi 3 Model A+

The Raspberry Pi 3 Model A+ is a compact single-board computer featuring a 64-bit quad-core 1.4GHz Broadcom BCM2837B0 processor, dual-band wireless LAN (2.4GHz and 5GHz), and Bluetooth 4.2/BLE. It shares the same smaller mechanical footprint as the original Pi 1 Model A+, making it ideal for embedded and space-constrained projects.

With 512MB of RAM, a full-size HDMI port, and a single USB 2.0 port, the 3A+ is well-suited for lightweight applications such as media players, IoT gateways, and dedicated controller projects where the full connectivity of the Model B+ isn't required.

Key Features

• 1.4GHz Quad-Core Processor – 64-bit Broadcom BCM2837B0 (Cortex-A53)
• Dual-Band WiFi – 2.4GHz and 5GHz 802.11ac wireless LAN
• Bluetooth 4.2/BLE – Built-in wireless connectivity
• Compact A+ Form Factor – Smaller footprint than Model B+
• Modular WiFi Compliance – Certified for reduced compliance testing in end products

Specifications

• SoC: Broadcom BCM2837B0
• CPU: Quad-core Cortex-A53 @ 1.4GHz (64-bit)
• RAM: 512MB LPDDR2
• WiFi: Dual-band 802.11ac (2.4GHz / 5GHz)
• Bluetooth: 4.2 / BLE
• USB: 1× USB 2.0
• Video Output: Full-size HDMI (1080p)
• Video Decode: H.264 / MPEG-4 (1080p30)
• Video Encode: H.264 (1080p30)
• Graphics: OpenGL ES 1.1, 2.0
• Storage: Micro SD card slot
• GPIO: 40-pin header
• Power: 5V/2.5A via micro USB or 5V via GPIO header

Ideal For

• Compact embedded and IoT projects
• Media players and digital signage
• Dedicated controller applications
• Space-constrained installations

Package Contents

• 1× Raspberry Pi 3 Model A+
