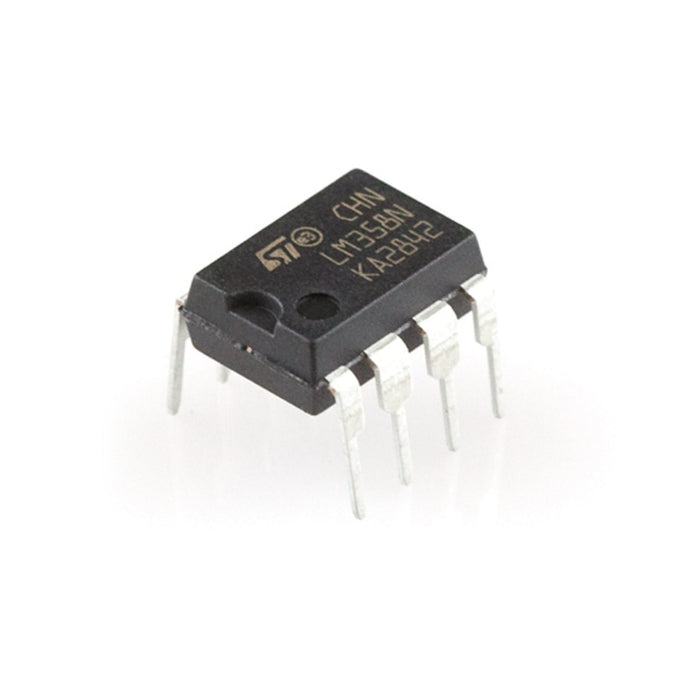

Op-Amp (Through-Hole) - LM358
The LM358 is a versatile dual-channel operational amplifier in a breadboard-friendly 8-pin DIP package. It can operate from a single supply (3–32V) or dual supplies (±1.5V to ±16V), making it suitable for a wide range of analogue circuits including transducer amplifiers, DC gain blocks, and standard op-amp configurations.
Each channel can source up to 20 mA, and the chip is internally frequency-compensated for unity gain stability — ready to use with minimal external components.
Key Features
- Dual Op-Amp – Two internally compensated channels in one package
- Wide Supply Range – Single supply 3–32V or dual ±1.5V to ±16V
- 100 dB DC Voltage Gain – High open-loop gain
- 1 MHz Bandwidth – Unity gain, temperature compensated
- 20 mA Output Per Channel – Sufficient for driving many loads
- 8-Pin DIP Package – Breadboard and through-hole compatible
Ideal For
- Transducer and sensor signal amplification
- DC gain blocks and filters
- Comparator circuits
- General-purpose analogue design
Package Contents
- 1× LM358 dual op-amp (8-pin DIP)
