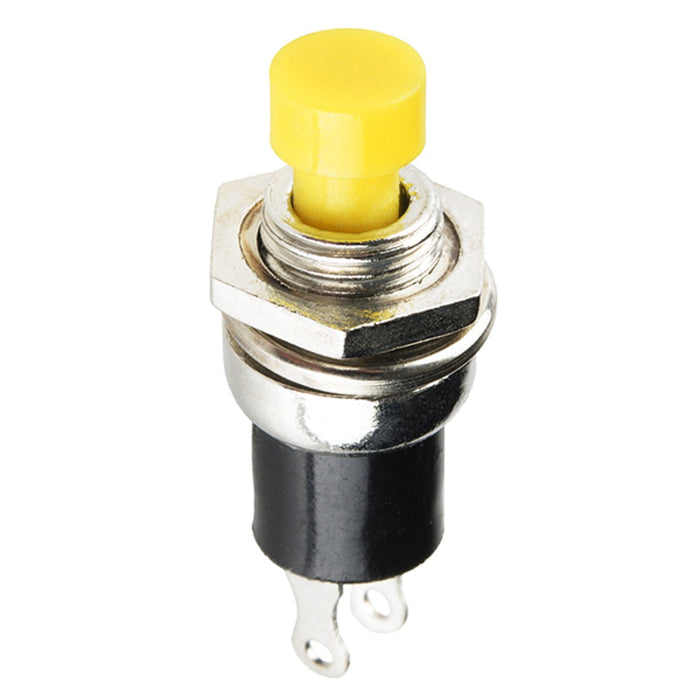

Momentary Button - Panel Mount (Yellow)
A compact yellow momentary push button designed for panel mounting. This SPST normally-open switch is ideal for basic on/off control, reset functions, or user input in enclosure builds. Features a 6.75mm threaded bushing and solder lug terminals.
Key Features
- Panel Mount – 6.75mm threaded bushing for secure enclosure mounting
- Momentary Action – SPST normally open (N.O.)
- Solder Lug Terminals – Easy wired connections
- Compact Size – 1.06″ overall length including leads
Specifications
- Type – Momentary, SPST, normally open
- Colour – Yellow
- Thread Diameter – 6.75mm
- Overall Length – 1.06″ (including leads)
- Rating – 0.5A @ 250VAC
- Terminals – Solder lugs
Ideal For
- Panel-mounted control buttons
- Reset and power switches in enclosures
- Arduino and microcontroller input
- DIY electronics projects
Package Contents
- 1× Momentary Button – Panel Mount (Yellow)
Resources
The Momentary Button - Panel Mount (Yellow) appears in the following collections:
SKU SF-COM-11995
