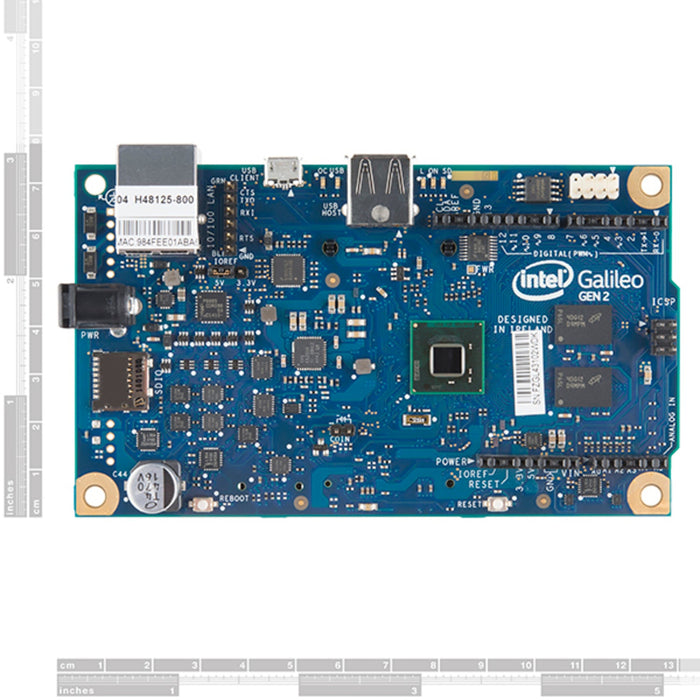

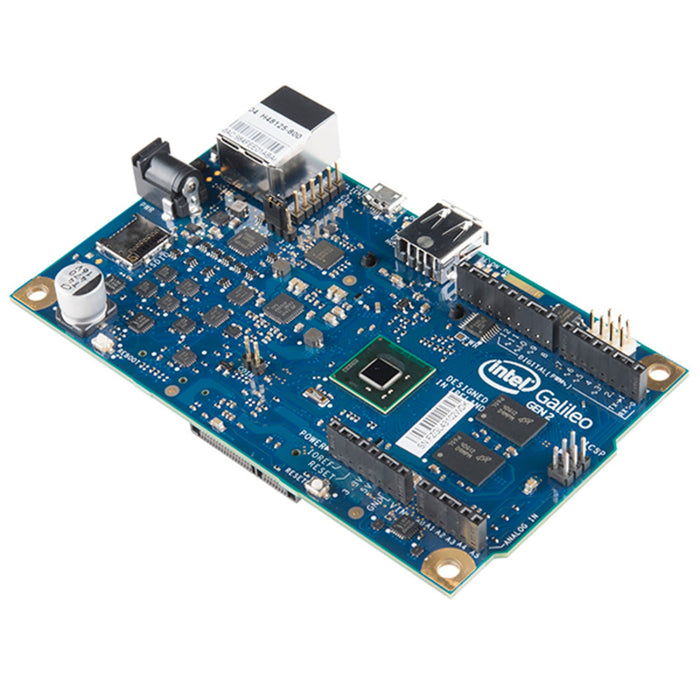

Intel® Galileo Gen 2

The Intel Galileo Gen 2 is a development board based on the Intel Quark SoC X1000, a 32-bit Intel Pentium-class system on a chip running at up to 400MHz. It is hardware and software pin-compatible with Arduino Uno R3 shields and programmable through the Arduino IDE on Windows, macOS, and Linux.

Beyond Arduino compatibility, the Galileo Gen 2 features PC-industry standard I/O including a full-sized mini-PCI Express slot, 100Mb Ethernet, micro-SD slot, USB host and client ports, and USB TTL UART header — making it suitable for both maker projects and professional prototyping.

Key Features

• Intel Quark SoC X1000 – 32-bit single-core processor, up to 400MHz, Pentium ISA compatible
• Arduino Uno R3 Compatible – Hardware and pin-compatible with Uno R3 shields
• Arduino IDE Support – Program via Arduino IDE on Windows, macOS, and Linux

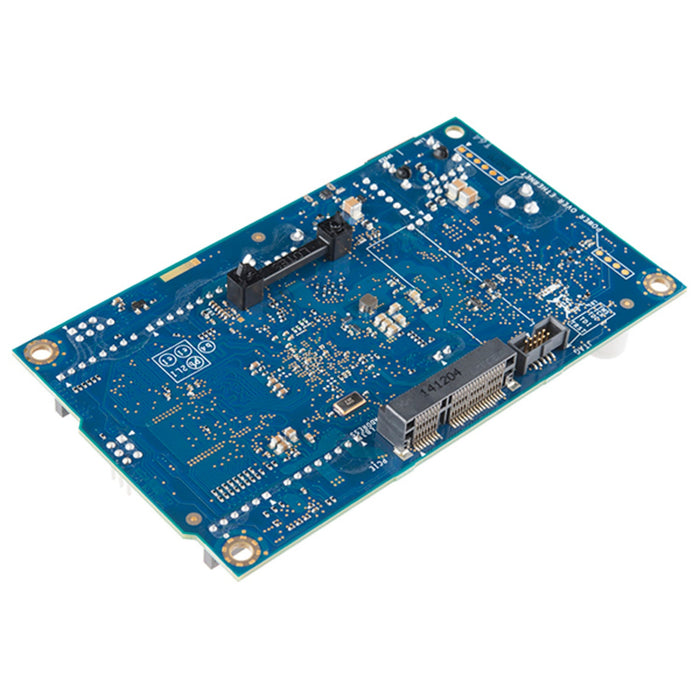

• Mini-PCI Express Slot – Full-sized slot for expansion cards
• 100Mb Ethernet – Wired network connectivity
• USB Host & Client – Both USB host and client ports
• Micro-SD Slot – Supports cards up to 32GB
• Linux Support – Yocto 1.4 Poky Linux release

Specifications

• Processor: Intel Quark SoC X1000, up to 400MHz
• RAM: 256MB DDR3
• SRAM: 512KB embedded
• Flash: 8MB NOR
• EEPROM: 8KB
• Storage: Micro-SD up to 32GB
• Networking: 100Mb Ethernet
• Expansion: Full-sized mini-PCI Express, USB TTL UART header

Ideal For

• IoT prototyping with Intel architecture
• Arduino projects requiring more processing power
• Linux-based embedded development
• Educational and professional prototyping

Package Contents

• 1× Intel Galileo Gen 2 Board

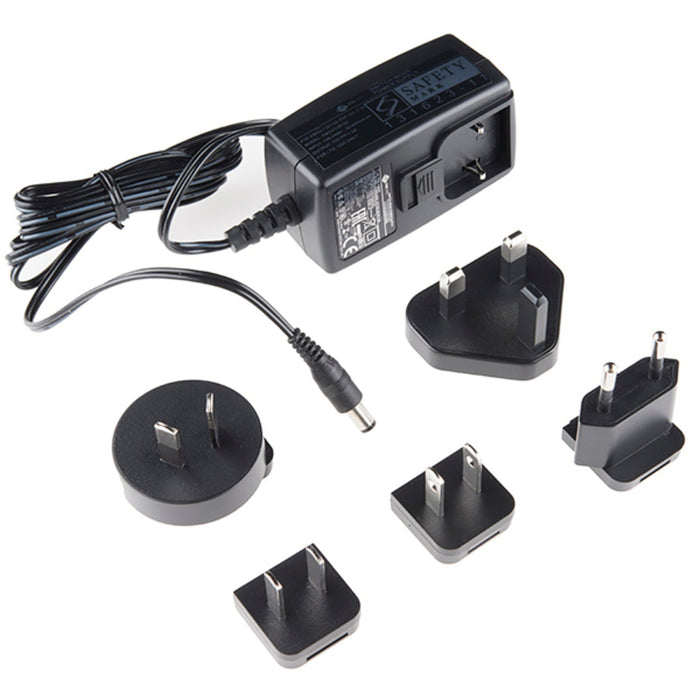

• 1× 5V Power Adapter

Resources

• Getting Started Guide
• Schematic (PDF)
• Example Project: Unread Email Counter
