HDMI 4 Pi: 7 Display (no Touch) w/Mini Driver - 800x480 HDMI
We have ✅ 1 available of the AF-1933 in our Sydney warehouse.

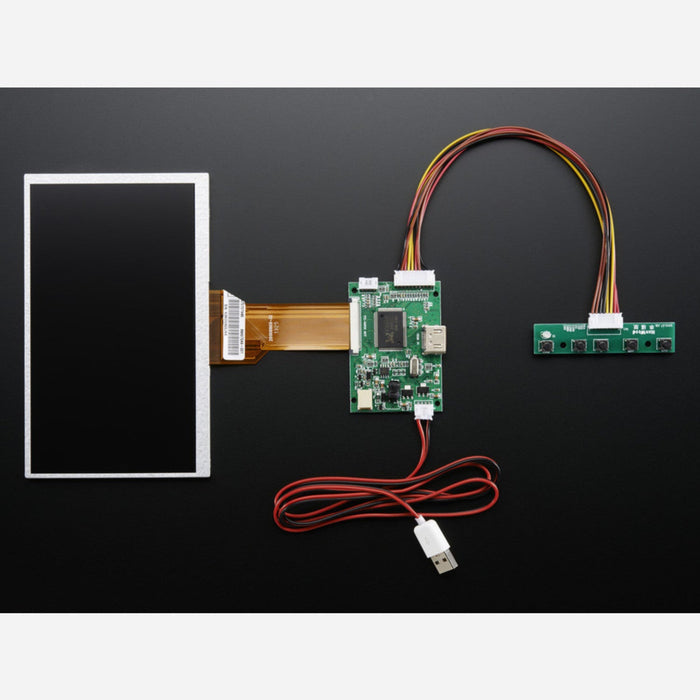

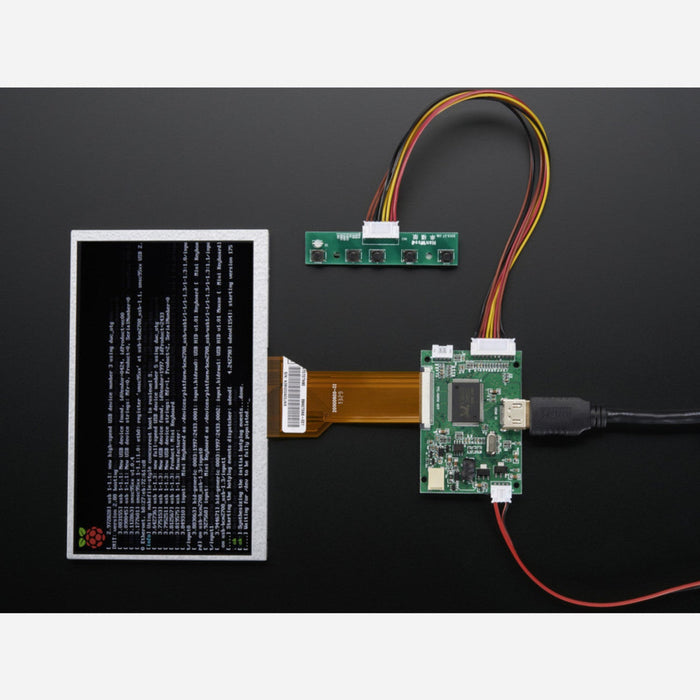

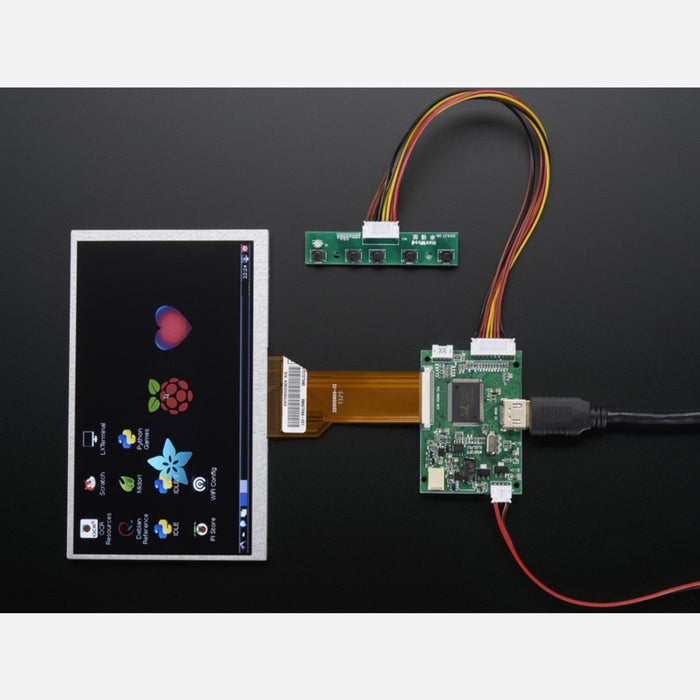

A 7" TFT display with 800×480 (WVGA) resolution and a compact HDMI mini driver board. Simply connect the USB power cable to a 5V supply and plug in an HDMI source for instant video output — no complex configuration required.

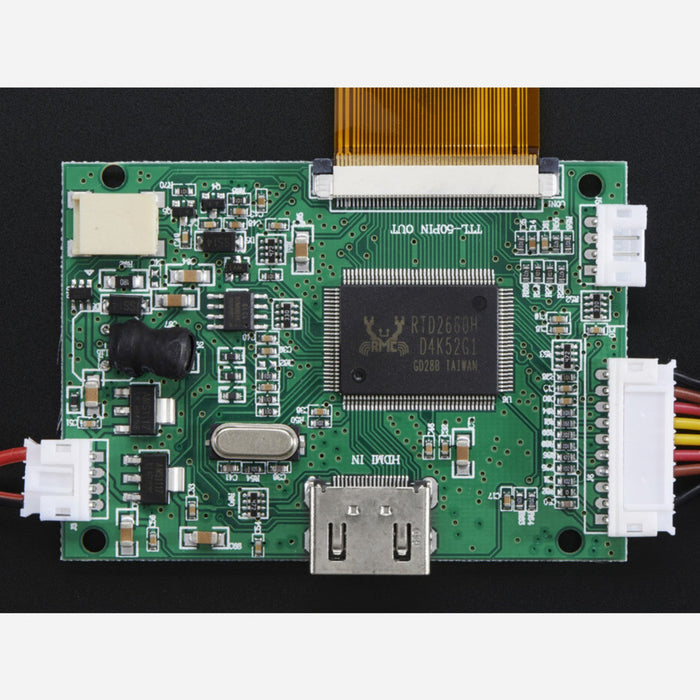

The display uses the AT070TN94 panel and is driven by a small HDMI driver board that fits neatly behind the screen. A wired button PCB provides access to an on-screen menu for adjusting brightness, colour, and contrast. The driver auto-detects the input source or can be manually selected via the menu keypad.
Key Features
- 7" TFT Display – 800×480 WVGA resolution, AT070TN94 panel
- HDMI Input – Single HDMI port for high-quality digital video
- Compact Driver Board – Mini driver powered via USB (5V, 500mA)
- On-Screen Menu – Wired button PCB for brightness, colour, and contrast adjustment
- Auto-Detect Input – Automatically switches to active HDMI source
- No Touch – Display only, no touchscreen overlay
Specifications
- Screen Size: 7" diagonal
- Resolution: 800 × 480 (WVGA)
- Panel: AT070TN94 TFT
- Input: HDMI
- Power: 5V via USB (500mA minimum)
Ideal For

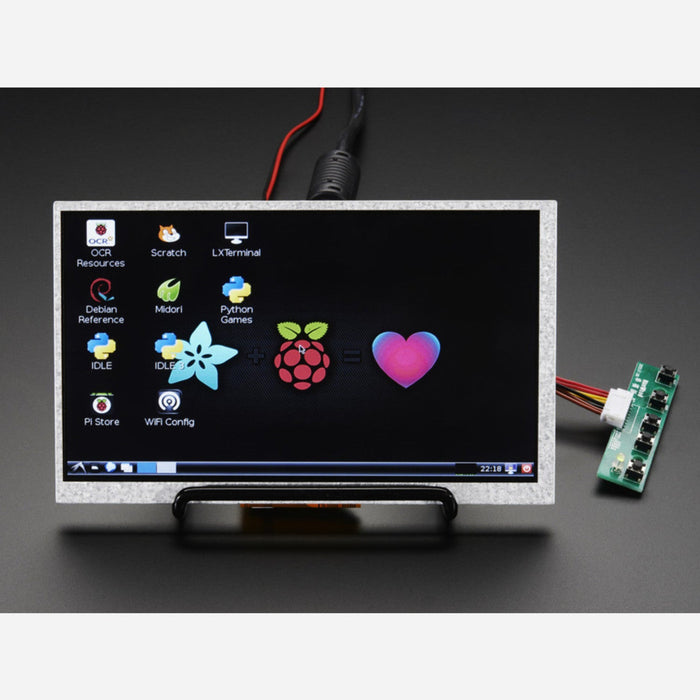

- Raspberry Pi displays and dashboards
- BeagleBone Black and other single-board computers
- Embedded computing and kiosk applications
- Portable HDMI monitor projects
config.txt to set the HDMI output to 800×480 if the resolution is not auto-detected. BeagleBone Black works without additional configuration.
