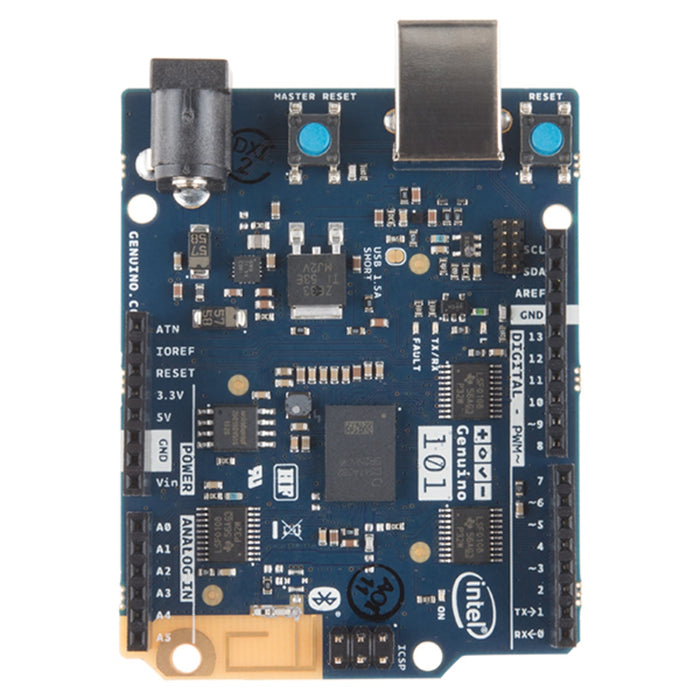

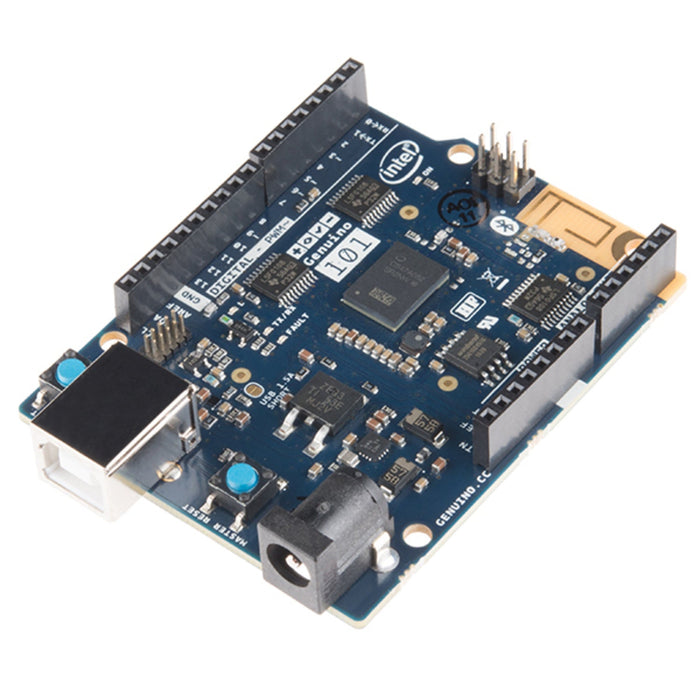

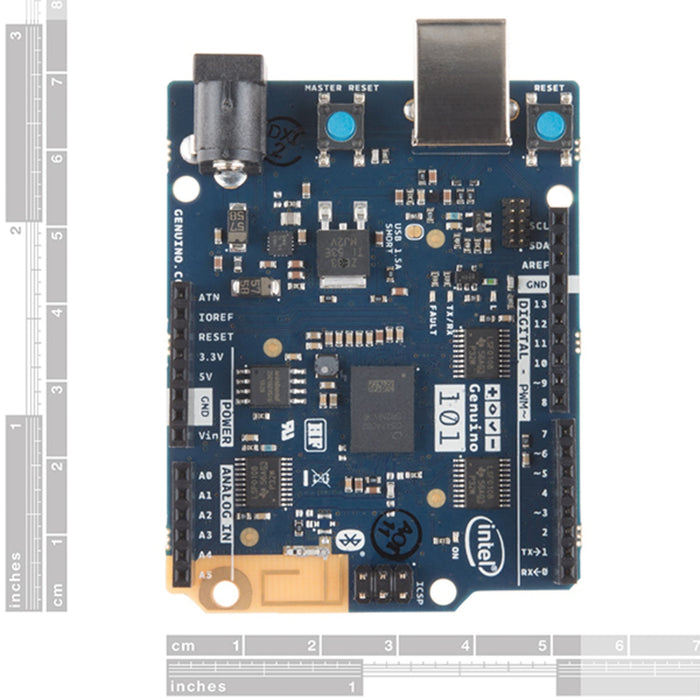

The Genuino 101 is a learning and development board powered by the Intel Curie module, combining the simplicity of the Arduino platform with onboard Bluetooth Low Energy and a 6-axis accelerometer/gyro. It maintains the familiar UNO form factor and peripheral layout while adding connected-world capabilities at an entry-level price.
The Intel Curie module contains two cores — an x86 (Quark) and a 32-bit ARC architecture core — both clocked at 32 MHz. The Intel toolchain compiles Arduino sketches across both cores for optimal performance. All I/O pins operate at 3.3 V but are protected against 5 V overvoltage.
Key Features
- Intel Curie Module – Dual-core processor (x86 Quark + 32-bit ARC) at 32 MHz
- Bluetooth Low Energy – Built-in BLE for wireless connectivity
- 6-Axis IMU – Onboard accelerometer and gyroscope
- Arduino UNO Form Factor – Compatible with existing shields and accessories
- 5 V Tolerant I/O – 3.3 V operating voltage with 5 V overvoltage protection on all pins
- 14 Digital I/O Pins – Including 4 PWM outputs
- 6 Analog Inputs – For sensor reading
Specifications
- Microcontroller – Intel Curie
- Operating Voltage – 3.3 V (5 V tolerant I/O)
- Input Voltage – 7–12 V (recommended) / 7–20 V (limit)
- Digital I/O Pins – 14 (4 PWM)
- Analog Input Pins – 6
- DC Current per I/O Pin – 20 mA
- Flash Memory – 196 KB
- SRAM – 24 KB
- Clock Speed – 32 MHz
- Connectivity – Bluetooth LE, USB, SPI (ICSP), I2C
Note: The Genuino 101 is only available in selected countries.
