Electronics Kit for Raspberry Pi Pico
We have ✅ 268 available of the RP-PICO-ELEC in our Sydney warehouse.
If you're looking for a Raspberry Pi Pico Starter Kit, look no further!
This is an awesome and affordable electronics kit for the Raspberry Pi Pico.
The components of this Pico Electronics Kit enable you to create electronics circuits for light and sound.
Pico Breadboarding can be hard, that's why we've included a Raspberry Pi Pico with soldered headers (done in Sydney, Australia) to make bread boarding easier.
Check out some of our guides here:
Getting Started with the Raspberry Pi Pico
Raspberry Pi Pico and Lorikeet WS2812B LED Stick
This is an awesome and affordable electronics kit for the Raspberry Pi Pico.
The components of this Pico Electronics Kit enable you to create electronics circuits for light and sound.
Pico Breadboarding can be hard, that's why we've included a Raspberry Pi Pico with soldered headers (done in Sydney, Australia) to make bread boarding easier.
Check out some of our guides here:
Getting Started with the Raspberry Pi Pico
Raspberry Pi Pico and Lorikeet WS2812B LED Stick

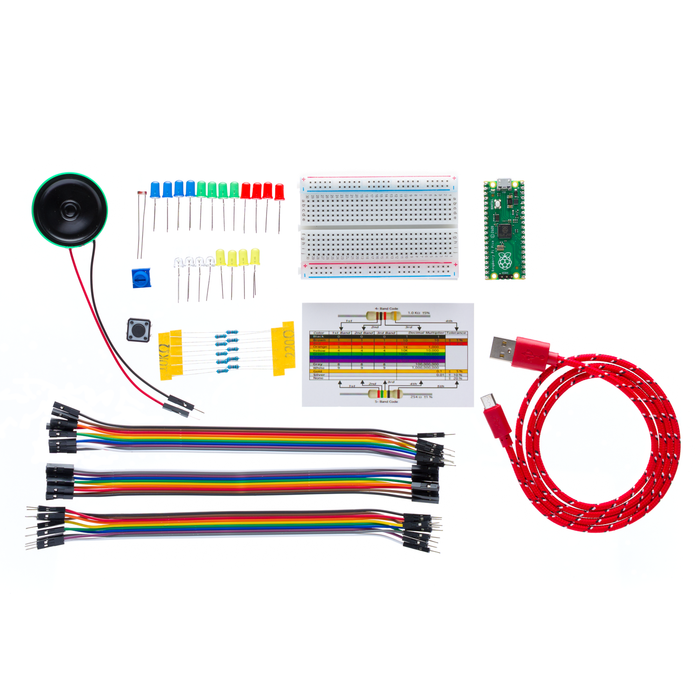

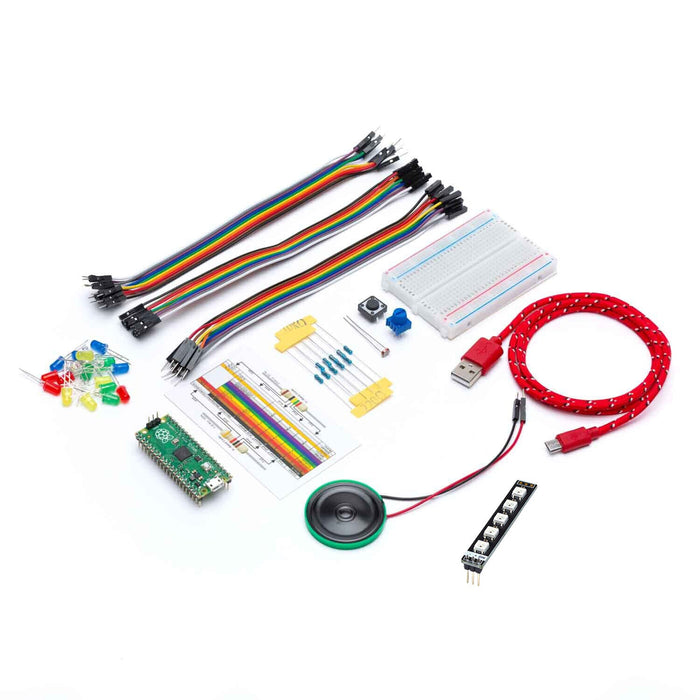

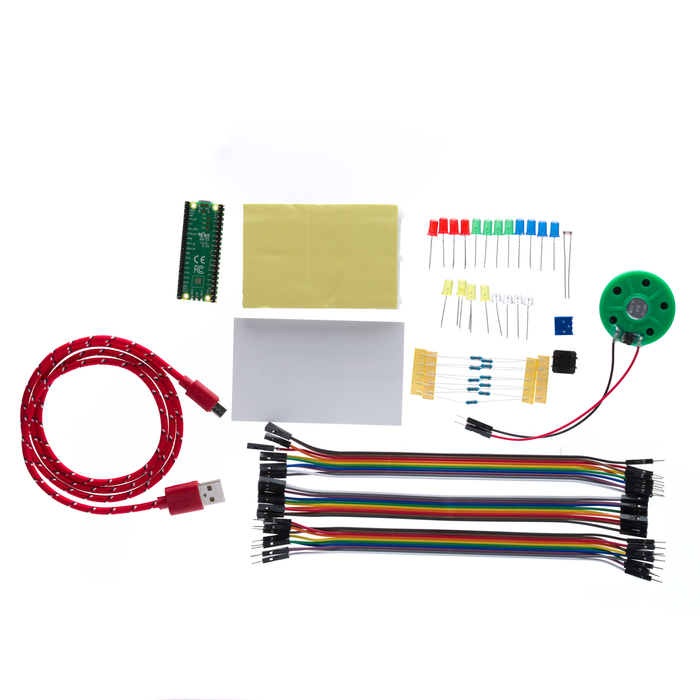

Includes:

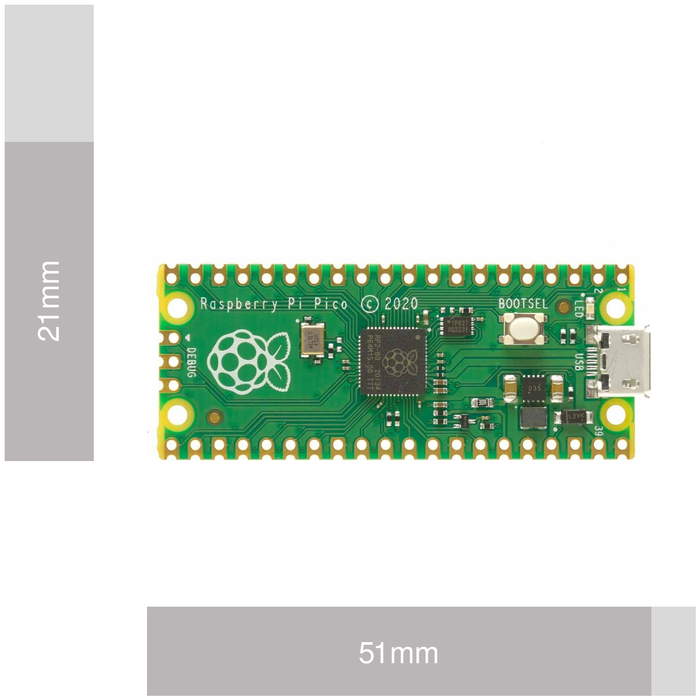

- 1 x Pico with soldered Headers
- 1 x 400 Point Breadboard
- 5 x 5mm LED Pack Multicolour
- 1 x Momentary Pushbutton Switch - 12mm Square
- 1 x Mini Photocell
- 1 x Active Buzzer
- 1 x Trimpot 10K with Knob
- 5 x 220ohm Resistors
- 2 x 10K Resistor
- 10 x Jumper wire F/M
- 10 x Jumper wire M/M
- 10 x Jumper wire F/F
- Fabric USB Micro-B Cable
- Little Bird Lorikeet
- Plastic case to keep all your parts in!
Specifications:
- Dual-core cortex M0+ at up to 133MHz
- On-chip PLL allows variable core frequency
- 264K multi-bank high performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- Dual-core cortex M0+ at up to 133MHz
- On-chip PLL allows variable core frequency
- 264K multi-bank high performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- High performance full-crossbar bus fabric
- On-board USB1.1 (device or host)
- 30 multi-function General Purpose IO (4 can be used for ADC)
- 1.8-3.3V IO Voltage (NOTE Pico IO voltage is fixed at 3.3V) • 12-bit 500ksps Analogue to Digital Converter (ADC)
- Various digital peripherals
- 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
- 1 x Timer with 4 alarms, 1 x Real Time Counter • Dual Programmable IO (PIO) peripherals
- Flexible, user-programmable high-speed IO
- Can emulate interfaces such as SD Card and VGA
The Electronics Kit for Raspberry Pi Pico appears in the following collections:
SKU RP-PICO-ELEC
by Little Bird
