Bees Shield For Arduino

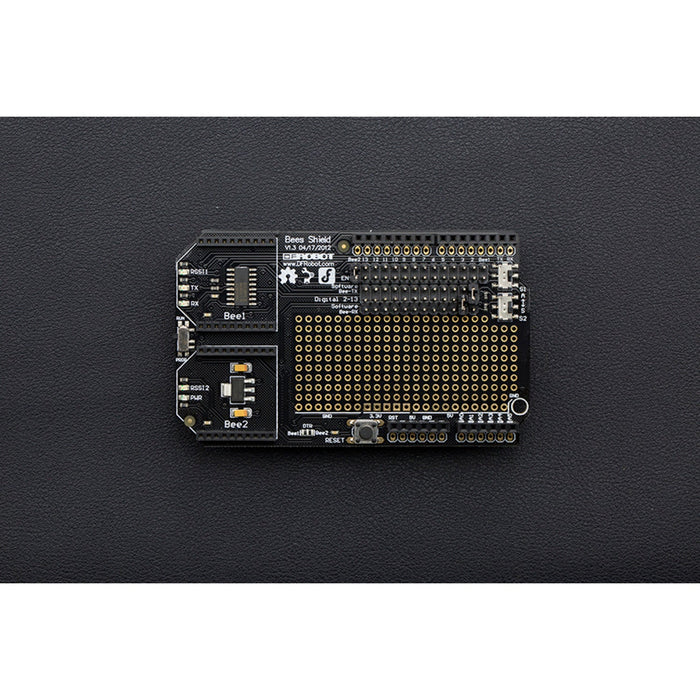

The DFRobot Bees Shield provides two XBee-compatible sockets on a single Arduino shield, allowing dual wireless communication using XBee, Wi-Fi XBee, Bluetooth Bee, ZigBee, and other XBee-form-factor modules. It includes both hardware and software serial port connections and a large DIP prototyping area for additional components.
Compatible with Arduino UNO R3, Leonardo, and similar boards. The shield is stackable, allowing it to be combined with other shields in your project.
Key Features
- Dual XBee Sockets – Two slots for XBee-compatible wireless modules
- Hardware and Software Serial – Flexible serial port assignment

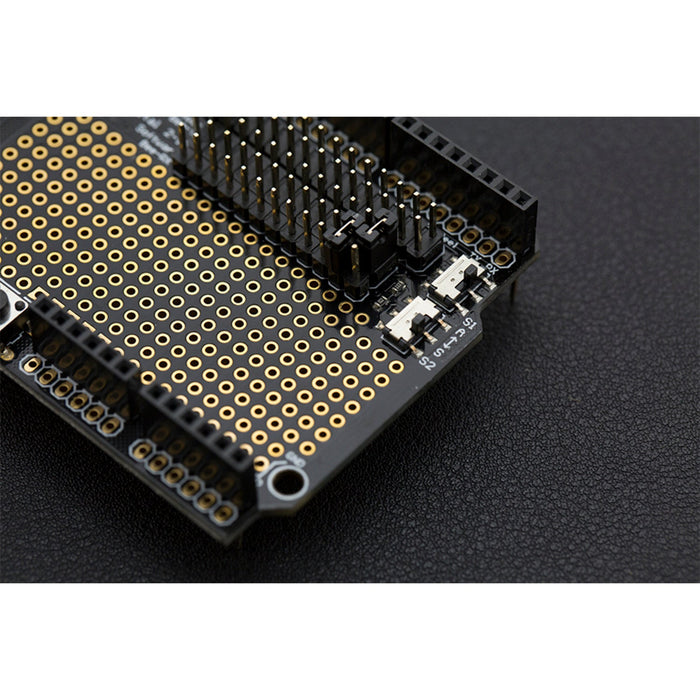

- Prototyping Area – Large DIP prototyping space for custom circuits
- Stackable Design – Standard Arduino shield form factor
Specifications
- Operating Voltage: 3.3–5 V
- XBee Slots: 2
- Serial Ports: Hardware serial + software serial
- Dimensions: 92 × 56 mm
Compatibility
- Arduino UNO R3, Leonardo, and compatible boards
- XBee, Wi-Fi XBee, Bluetooth Bee, ZigBee modules
Package Contents
- 1× Bees Shield
Resources
