Adafruit Perma-Proto 40-Pin Raspberry Pi Breadboard PCB Kit - with 2x20 Header
We have ✅ 3 available of the AF-4354 in our Sydney warehouse.

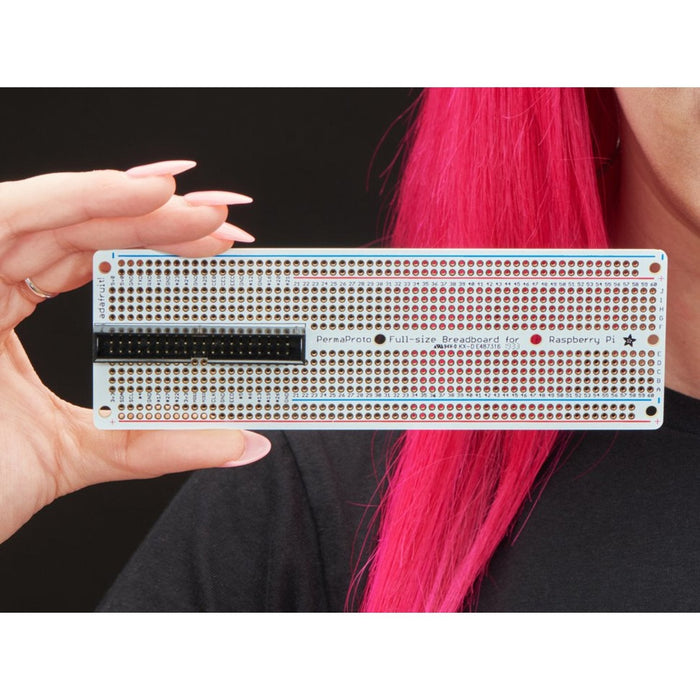

The Adafruit Perma-Proto 40-Pin Raspberry Pi Breadboard PCB Kit combines a full-sized prototyping board with a built-in Pi Cobbler breakout. Solder in the included 2×20 box header, connect a 40-pin GPIO cable, and you get labelled pin breakouts alongside 60 rows of breadboard-style prototyping space — perfect for making soldered Pi projects permanent.

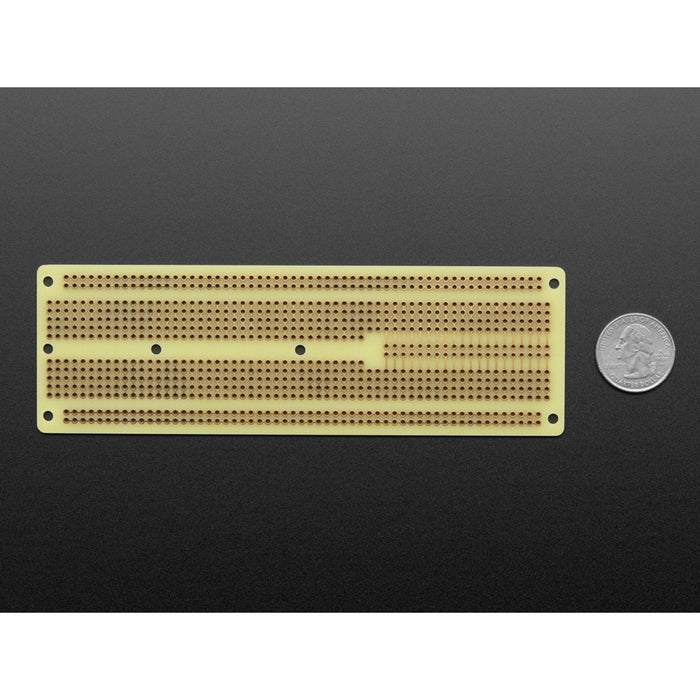

The PCB mirrors a standard breadboard layout with 5-hole connected pads, four power bus rails, and clear silkscreen labelling. All holes are through-plated with a gold finish for durability and easy rework — no flaking pads or copper oxidation. Multiple mounting holes let you secure the board in an enclosure.
Key Features
- Built-in Pi Cobbler – 2×20 header position with labelled GPIO breakouts
- 60-Row Breadboard Layout – Familiar 5-hole pad pattern for easy component transfer
- Through-Plated, Gold-Finished – Durable pads that resist oxidation and survive rework
- 1.2mm Drill Holes – Accommodates components with larger leads
- 4 Power Bus Rails – Side-mounted power and ground distribution
- Multiple Mounting Holes – Secure attachment to enclosures and project boxes
- Cuttable Traces – Unmasked bottom side allows easy trace modification
Ideal For
- Transferring breadboard prototypes to permanent soldered PCBs
- Custom Raspberry Pi HATs and expansion circuits
- Permanent sensor, relay, or interface projects connected to a Pi
Package Contents
- 1× Perma-Proto 40-Pin PCB
- 1× 2×20 Box Header
