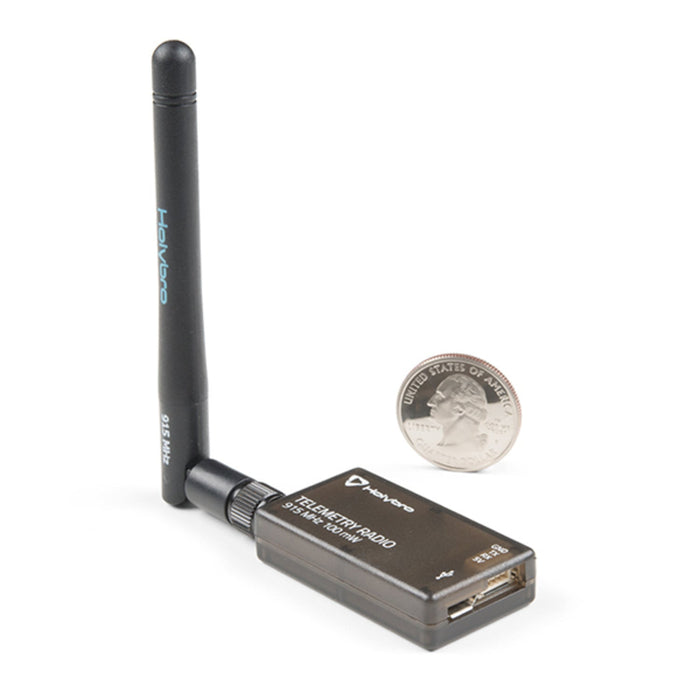

Pixhawk Radio Telemetry Kit

A compact, lightweight open-source radio telemetry kit for Pixhawk-based autopilot systems. Out of the box it delivers 300m+ range, extendable to several kilometres with a patch antenna. The radios use open-source firmware specifically optimised for MAVLink packet handling and integrate directly with Mission Planner, ArduCopter, ArduRover, and ArduPlane.

Setup takes under five minutes: connect one module to the Telem1 port on your Pixhawk4 via the included JST-GH cable, and plug the other into your ground station's USB port. Both modules are pre-paired and ready to go.

Key Features

• Range – 300m+ out of the box; extendable with patch antenna
• Frequency – 915MHz
• Transmit Power – 100mW
• RX Sensitivity – −117dB
• Data Link – Full-duplex transparent serial at 57,600 baud
• Connectivity – Micro-USB and UART port on each module
• MAVLink Optimised – Firmware designed for Pixhawk and ArduPilot ecosystems

Package Contents

• 2× Radio modules (air and ground)
• 1× USB cable
• 1× Android adapter cable
• 2× JST-GH cables
• 2× Right-angle RP-SMA connectors
• 2× 915MHz antennas

Ideal For

• Pixhawk4-based drones, rovers, and fixed-wing aircraft
• Real-time telemetry monitoring via Mission Planner
• FPV and autonomous vehicle ground station links
