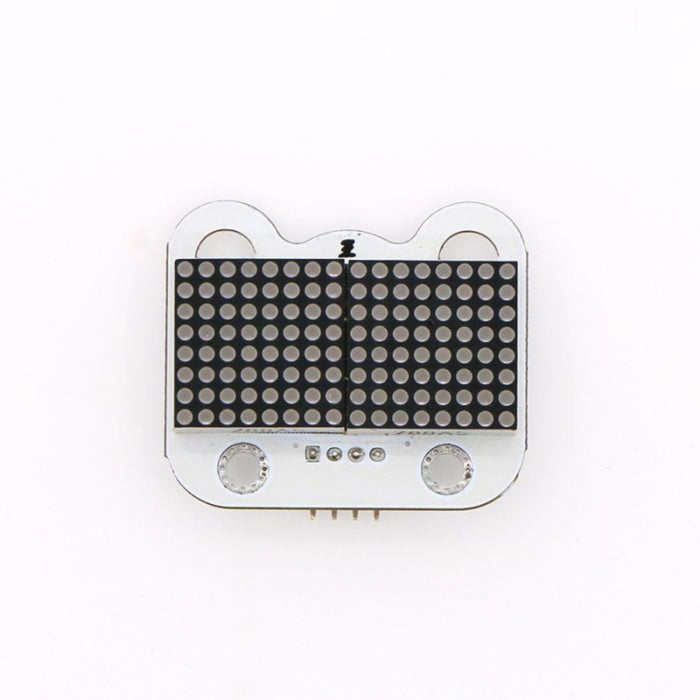

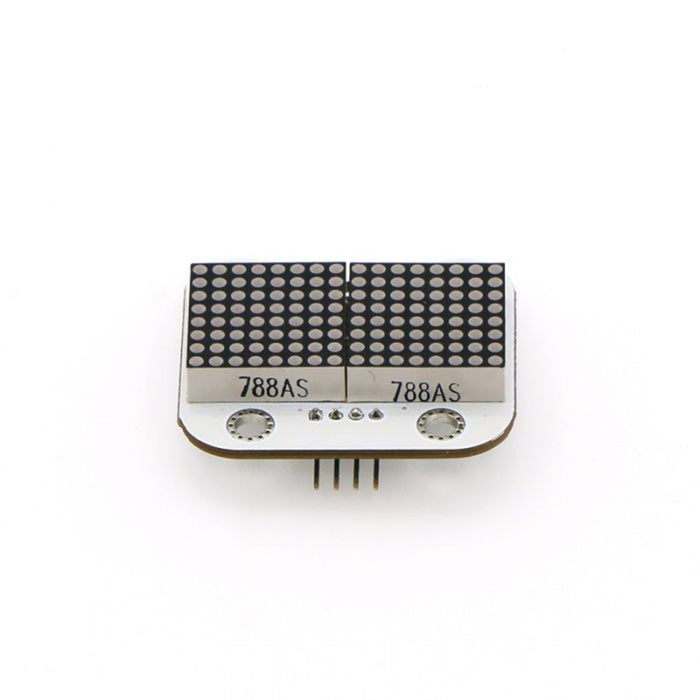

8x16 matrix module
100 units will be available shortly.
8 x 16 matrix module is a kind of 8 x 16 matrix screen that can display numbers, commonly used letters and symbols with scrolling-displaying function. It adopts IIC bus protocol and makes it easy to connect and operate.
Characteristic
The matrix module is of high luminance, low consumption and good quality.
It has original outlook with silk print design.
It adopts IIC bus protocol and makes it easy to connect and operate.
It has three user-defined hardware address bit .
Outlook and Dimension

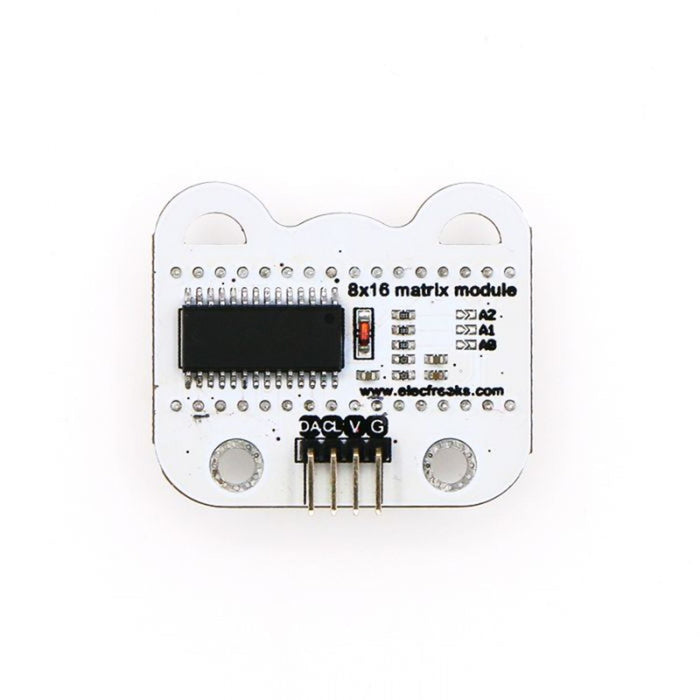

Connector Diagram for Pins
Introduction to Main Function Modules
8x16 matrix
Each LED can be turned on or off separately to display numbers, commonly used letters and symbols.
12C Communication Interface
It communicates with SCM through 12C communication mode.
Quick Start
Hardware Connection

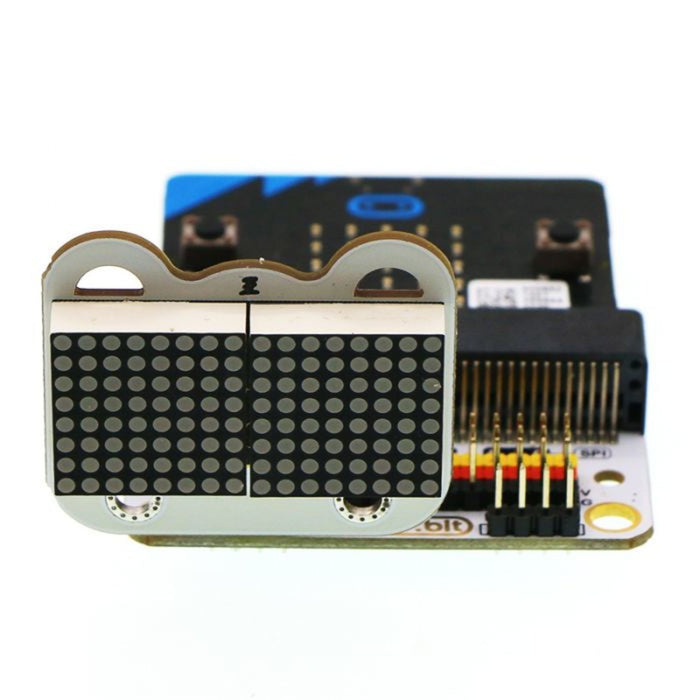

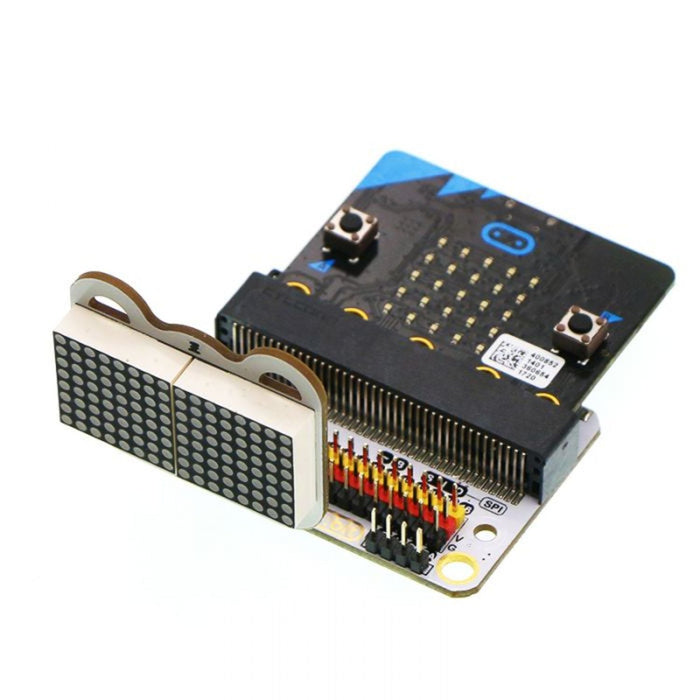

Insert the micro:bit into sensor:bit and then insert 8x16 matrix module into its equivalent IIC connector.
Software Program
Use makecode to program and achieve the scrolling-displaying on 8x16 led matrix display.
The links of the program: https://makecode.microbit.org/_FsFWvpXP4gsm
Result
The scroll-displaying begins from top to bottom and then from left to right on the 8x16 matrix module.
Parameter
Documents
