7-Segment Display - 4-Digit (Red)
We have ✅ 1 available of the SF-COM-09483 in our Sydney warehouse. An extra 170 units will be available shortly.

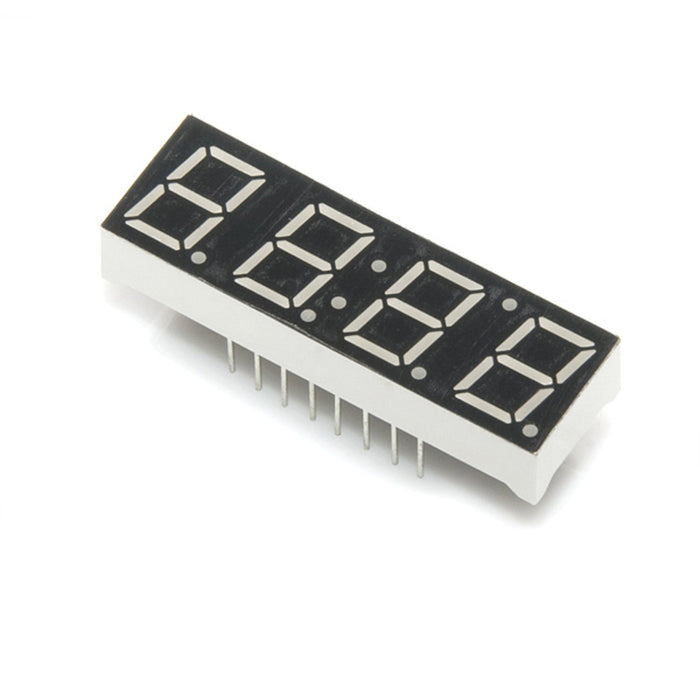

This is a basic, 4-digit 7-segment display - red in color. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points.
The LEDs have a forward voltage of 2.1VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pins.
We carry this same display in yellow, green, and blue.

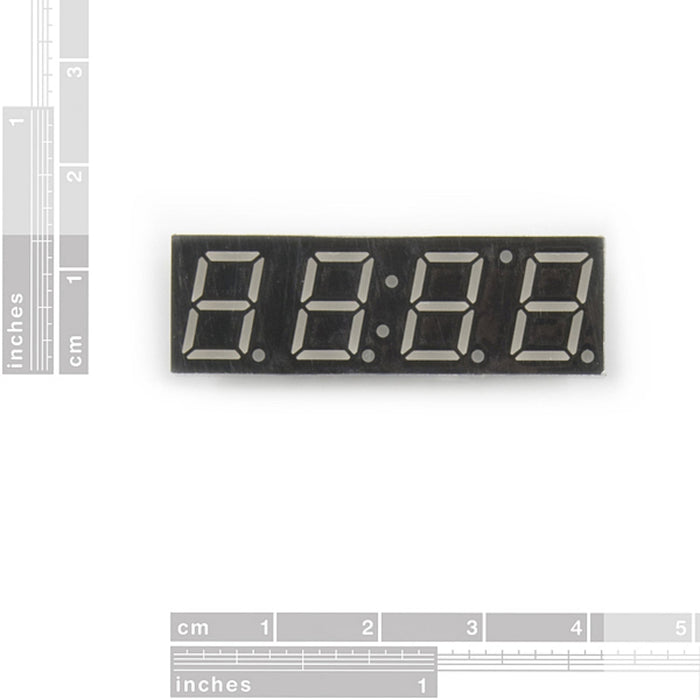

Dimensions:
- Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")
- Digit Height: 10mm (0.39")
Documents:
The 7-Segment Display - 4-Digit (Red) appears in the following collections:
