Saleae Logic - 8-Channel USB Logic Analyzer

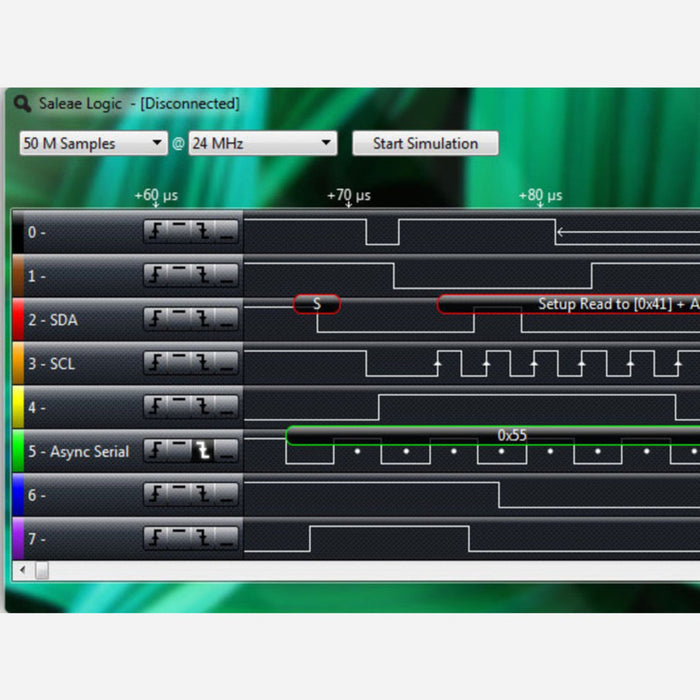

A logic analyzer is a device that lets you watch digital signals in your electronics project. Unlike an oscilloscope, its not good for measuring analog signals - but also unlike an oscilloscope, you can track 8 signals at time! So its a good complementary tool. This logic analyzer plugs into a computer and has easy to use, cross-platform software. This makes it small, portable and inexpensive. If you ever have to to debug SPI, i2c, serial, CAN, 1-wire, Manchester, biphase or other digital protocols, this tool is essential!

• Speedy 24MHz Logic samples each channel at up to 24M times per second. A large fraction of practical, real world applications run at less than 10MHz, and Logic is ideal for these.
• 8 Channels Logic has 8 inputs -- it can monitor 8 different digital signals at once. For many modern microcontroller-based designs, this is plenty.
• 10 billion samples Logic can save as many as 10B samples, letting you capture even the most elusive events. No more dealing with frustratingly small sample buffers.

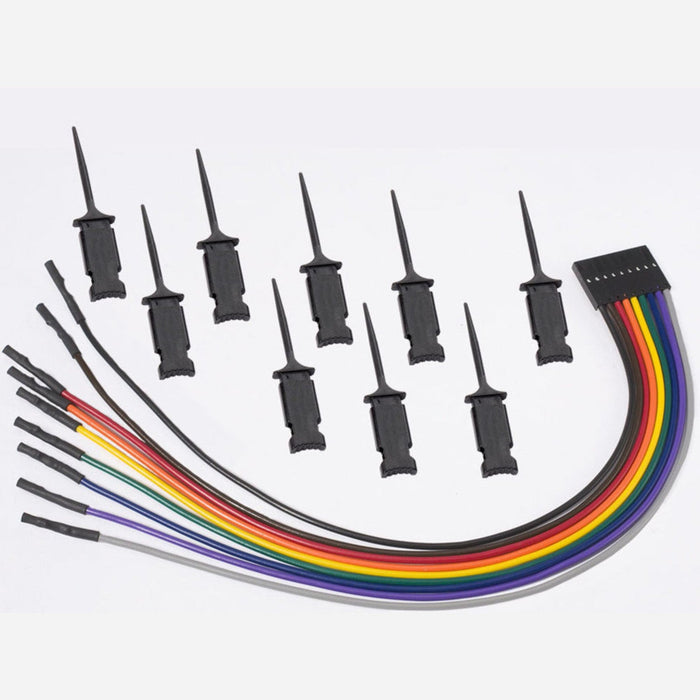

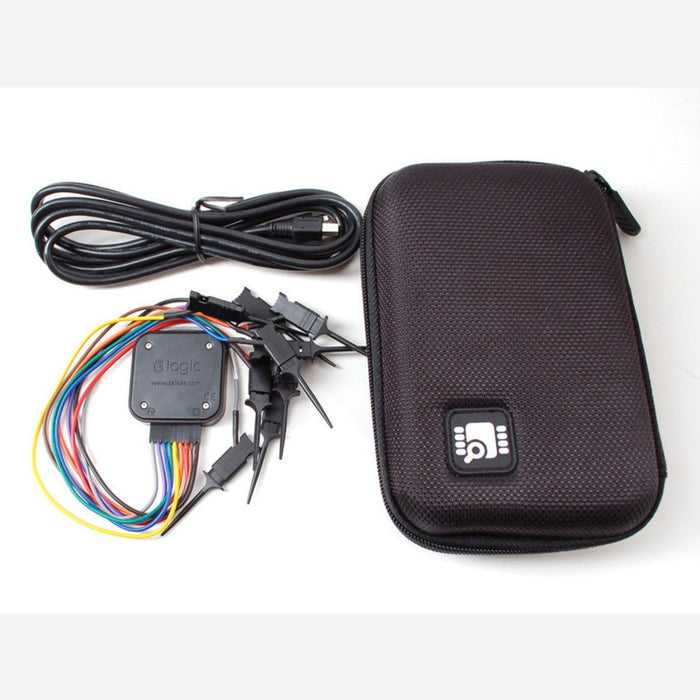

• Comes complete Start debugging within 5 minutes of opening your new Logic; everything is included: An ultra-flexible 22AWG 64/40 wire harness, 9 high-quality micro-hook probes, a USB cable (2 meter mini-B to A), and a nice carrying case. Download the software from our site (see software)
• Enclosure We love well made tools. That's why we make Logic's case out of custom CNC machined aluminum and make sure its anodized surface is finished to perfection.
• Protection Logic's inputs are protected against overvoltage conditions via current-limiting resistors and ultra-low-capacitance diode clamps. A resettable fuse protects the USB ground return line to augment the USB host's existing protection.
