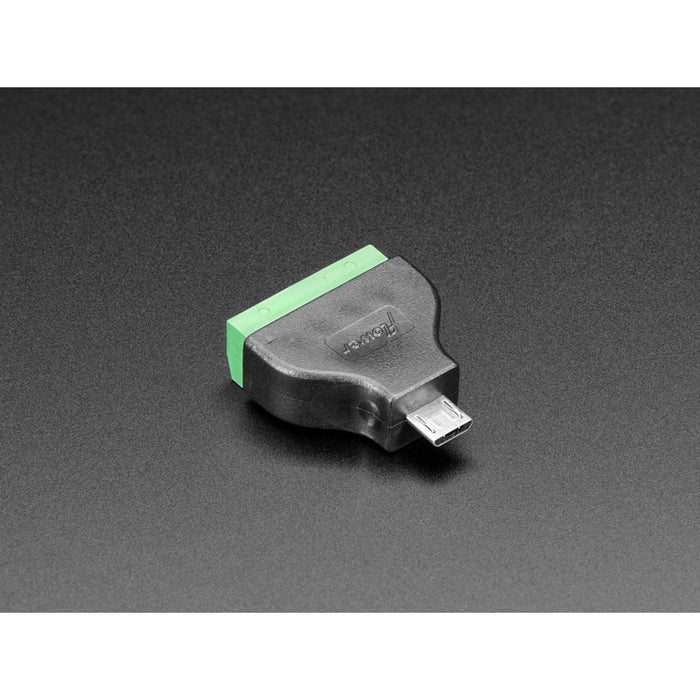

USB Micro B Male Plug to 5-pin Terminal Block
3 units will be available shortly.
Make your next custom USB cable a breeze with a USB Micro B Male Plug to 5-pin Terminal Block. If you need to connect to a device with a micro USB plug or maybe make your own USB OTG device or custom cable of sorts - this adapter will come in very handy: no soldering required! Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
All the pins are labeled, which is really nice because we keep forgetting the order.
- A – Pin 1 (V+)
- B – Pin 2 (D-)
- C – Pin 3 (D+)
- D – Pin 4 (ID)
- E – Pin 5 (GND)
