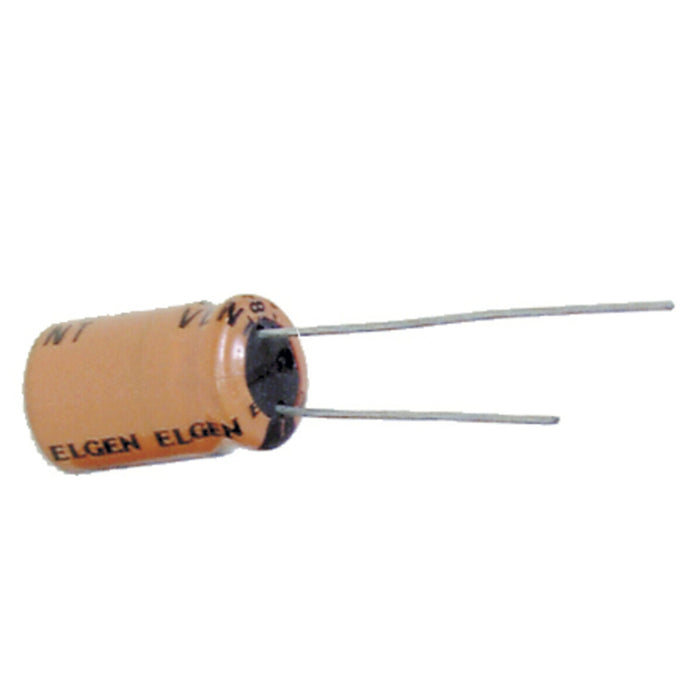

10uF 50VDC Low Leakage Electrolytic Capacitor
We have ✅ 4 available of the TB-RL6428 in our Sydney warehouse.
85ºC rated Leakage characteristics similar to tantalum caps, but at a lower price.
An electrolytic capacitor uses and electrolyte (a liquid or gel containing a high concentration of ions) to achieve a larger capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.
Specifications
| Height | 11mm |
| Diameter | 6.3mm |
| Capacitor type | Electrolytic Low Leakage |
| Polarised Capacitor | |
| Operating Temperature | 85°C |
| Item capacitance | 10µF |
| DC Voltage | 50V |
| Component Type | Electrolytic Capacitor |
| Passive marking code | Printed |
| Passive number of legs | 2 |
| Component package | Radial |
| Passive connector type | Solder Legs |
| Passive mount type | Through Hole |
| Pitch | 2.5mm |
| Pack Quantity | 1pc |
