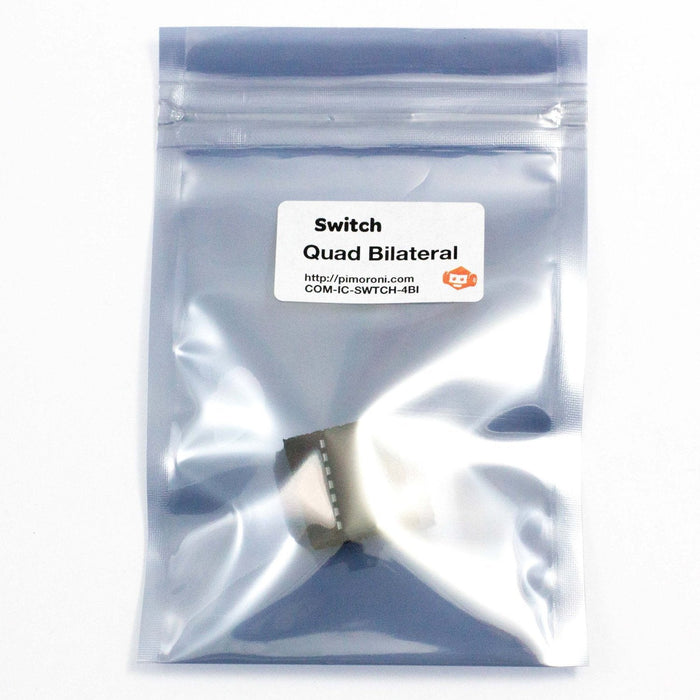

Quad Bilateral Switch - Default
This neat little package contains four SPST analog switches. Dead useful controlling things like audio output with a micro-controller.
Each switch is normally open but when a voltage is applied to the related control pin they change state to closed.
| Pin(s) | Function |
|---|---|
| 1,2 | Switch #1 |
| 3,4 | Switch #2 |
| 5 | Control for switch #2 |
| 6 | Control for switch #3 |
| 7 | GND |
| 8,9 | Switch #3 |
| 10,11 | Switch #4 |
| 12 | Control for switch #4 |
| 13 | Control for switch #1 |
| 14 | VCC |
- Package: DIP-14 (through hole)
- On-State Resistance: 80Ω
- Supply Current: 8uA
- Supply Voltage: 2V - 12V
- Manufacturers Part No.: M74HC4066B1R
